EM-1240-LX User’s Manual Getting Started

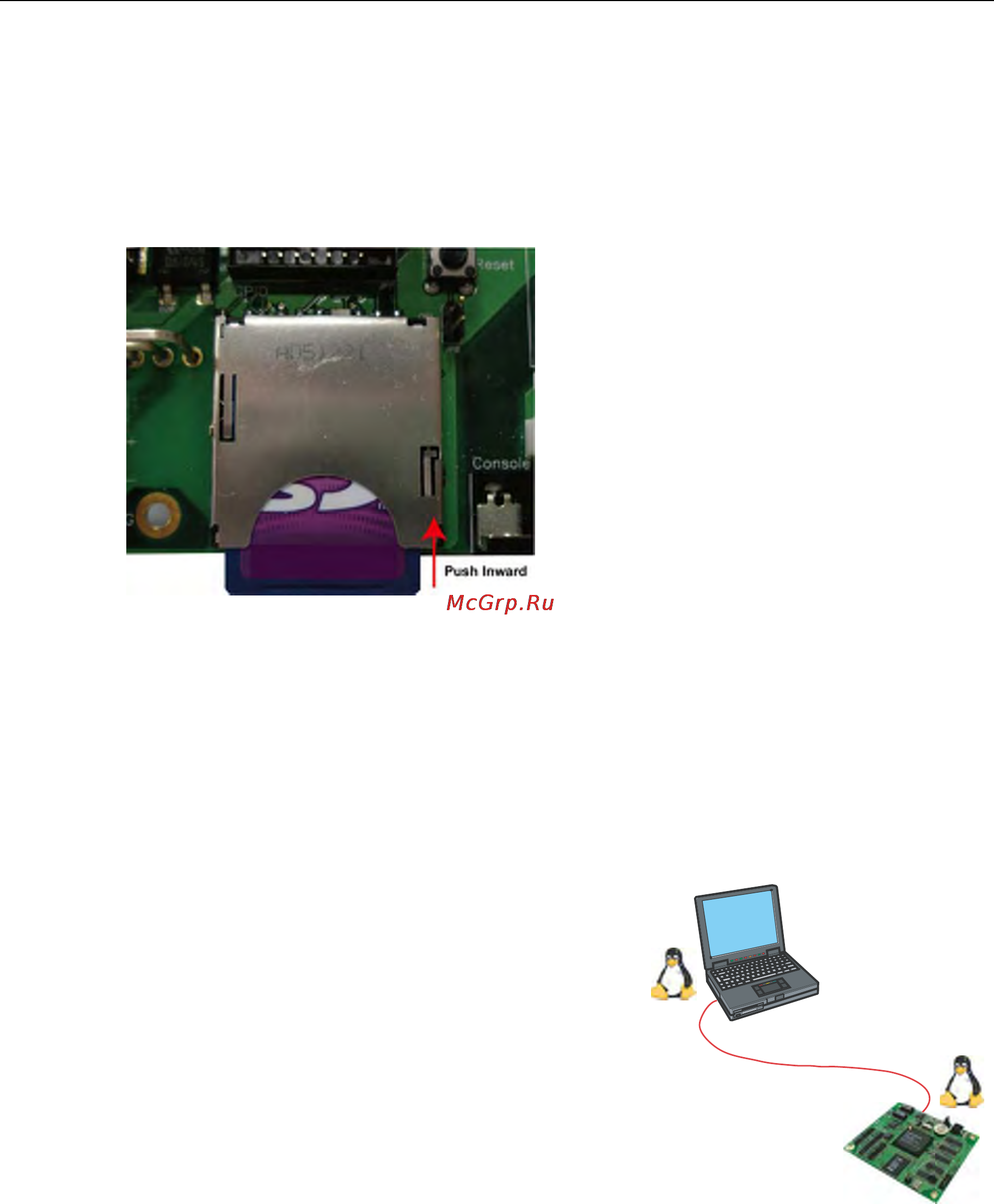

Installing a Secure Digital (SD) Memory Card
The EM-1240-LX provides an internal SD socket for storage expansion. To access this socket,
perform the following steps to install the SD memory card.
Step 1: Find the exact location of the SD socket.
Step 2: Insert the SD card into the socket. Make sure the card is situated correctly.
Step 3: Push the SD card inward.
Step 4: Before using the SD card, check the /etc/rc file to ensure that the driver module for the SD
card control is loaded. The loading sequence should be as follows:
insmod /lib/modules/2.6.9-MoXaRt/kernel/drivers/mmc/mmc_core.ko
insmod /lib/modules/2.6.9-MoXaRt/kernel/drivers/mmc/mmc_block.ko
insmod /lib/modules/2.6.9-MoXaRt/kernel/drivers/mmc/moxasd.ko
Step 5: To take out the SD memory card, press the SD card again. The card will pop out part of the
way, after which you can pull it out directly.
Developing Your Applications
Step 1:
Connect the EM-1240-LX to a Linux PC.
Step 2:
Install Tool Chain (GNU Cross Compiler & uClibc).
Step 3:
Configure cross compiler and uClibc environment
variables.
Step 4:
Code & compile your program.
Step 5:
Download program to the EM-1240-LX via FTP or
NFS.
Step 6:
Debug the program. If the program is OK, proceed to
Step 7. If the program needs to be modified, go back to
Step 4.
Step 7:
Back up the user directory, and distribute the code to
additional EM-1240-LX units.
68x
Cross
Compiler
2-6
