EM-1240-LX User’s Manual Introduction
Connecting the Power
Connect the “live-wire” end of the 12-48 VDC power adaptor to the EM-1240-LX’s terminal
block. If the power is properly supplied, the “Ready” LED will glow a solid green after a 25 to 30
second delay.
Grounding the EM-1240-LX
Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground wire from the ground screw to the grounding surface prior to connecting
devices.
ATTENTION
This product should be mounted to a well-grounded mounting surface such as a metal panel.
V+V-
SG
12-48V

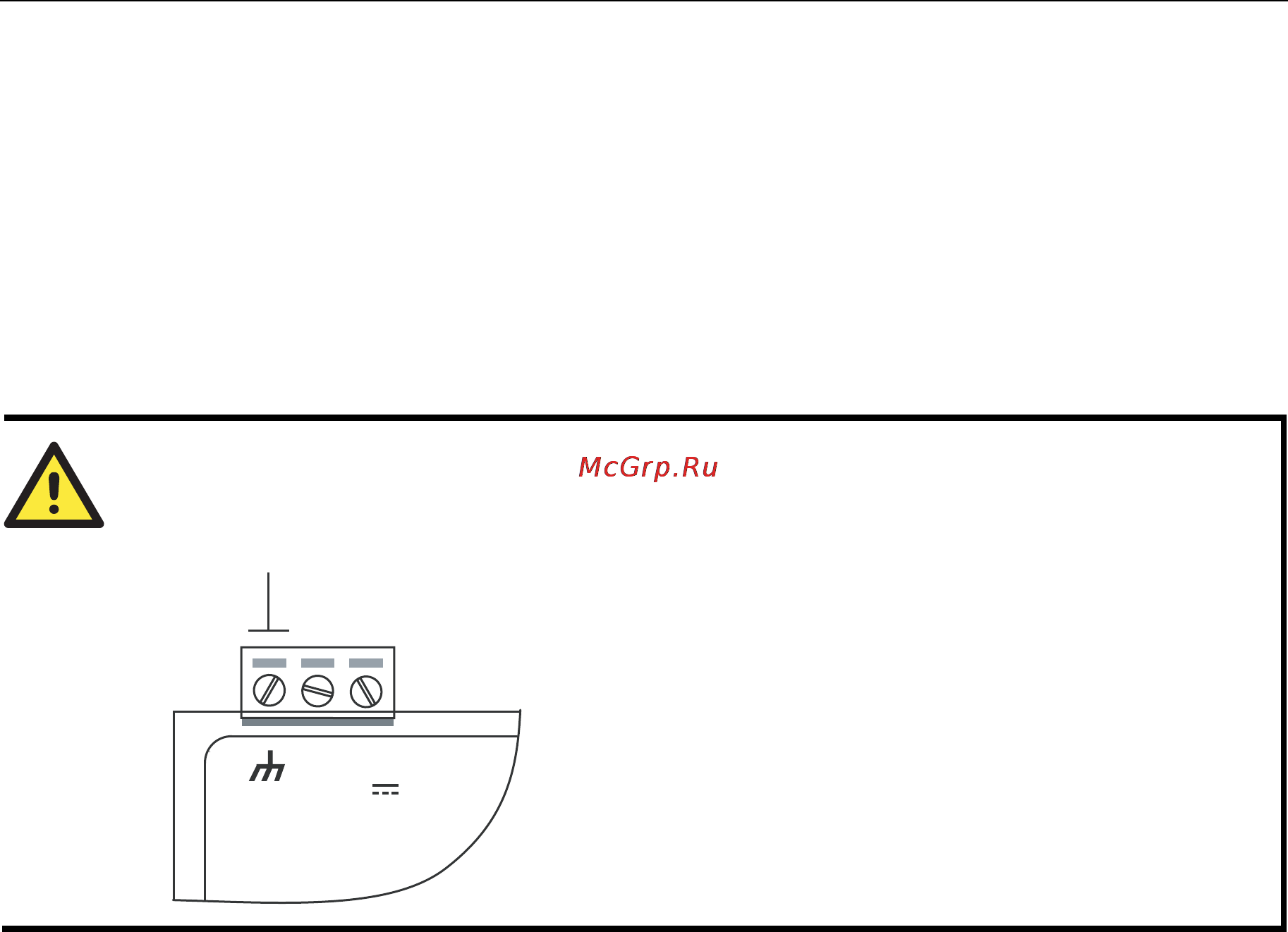

SG: The Shielded Ground (sometimes called
Protected Ground) contact is the left most contact
of the 3-pin power terminal block connector when
viewed from the angle shown here. Connect the
SG wire to an appropriate grounded metal surface.
Connecting Data Transmission Cables
This section describes how to connect the EM-1240-LX to the network, serial devices, and serial
COM terminal.
Connecting to the Network
Connect one end of the Ethernet cable to the EM-1240-LX’s 10/100M Ethernet port and the other
end of the cable to the Ethernet network. If the cable is properly connected, the EM-1240-LX will
indicate a valid connection to the Ethernet in the following ways:
y The top-right LED on the connector glows a solid green when connected to a 100 Mbps
Ethernet network.
y The top-left LED on the connector glows a solid orange when connected to a 10 Mbps Ethernet
network.
y The LEDs will flash when Ethernet packets are being transmitted or received.
1-9
