V2616A Linux Introduction
1-2
Overview
The V2616A series embedded computers are based on the Intel 3
rd
-generation processor and feature two
serial ports, dual 10/100/1000 Mbps LAN ports, three USB 2.0 hosts, and a CFast socket. The V2616A series
offers both VGA and DVI-D outputs, making it exceptionally well suited for industrial applications such as
SCADA and factory automation.
The V2616A’s 2 serial ports make it ideal for connecting a wide range of serial devices, and the dual
10/100/1000 Mbps Ethernet ports offer a reliable solution for network redundancy, which taken together
promise continuous data communication and management operations. For added convenience, the V2616A
computers have 6 DIs and 2 DOs for connecting digital input/output devices. In addition, the CFast socket and
USB ports provide V2616A computers with data buffering and storage expansion, which provide the necessary
reliability for industrial applications.
Pre-installed with Linux, the V2616A series provides programmers with a friendly environment for developing
sophisticated, bug-free application software at a lower cost.
Software Specifications

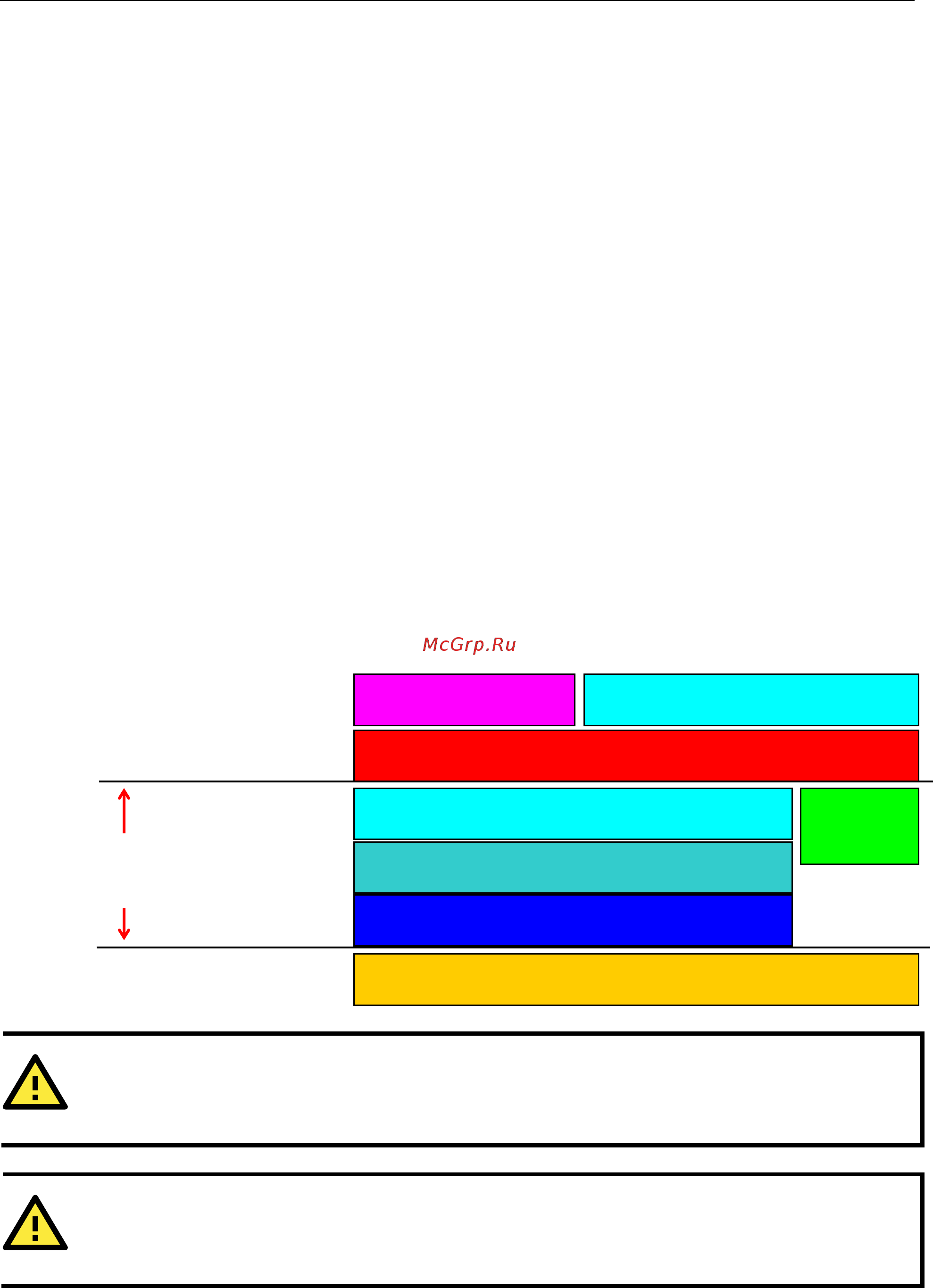

The Linux operating system pre-installed on the V2616A embedded computers is the Debian Wheezy 7.2
distribution. The Debian project involves a worldwide group of volunteers who endeavor to produce an
operating system distribution composed entirely of free software. The Debian GNU/Linux follows the standard
Linux architecture, making it easy to use programs that meet the POSIX standard. Program porting can be
done with the GNU Tool Chain provided by Moxa. In addition to Standard POSIX APIs, device drivers for Moxa
UART and other special peripherals are also included. An example software architecture is shown below:
ATTENTION
Refer to
http://www.debian.org/ and http://www.gnu.org/ for information and documentation related to
Debian GNU/Linux and
the free software concept.
ATTENTION
The a
bove software architecture is only an example. Different models or different build revisions of the
Linux
operating system may include components
not shown in the above graphic.
RS-232/422/485, Ethernet, CFast, SATA, USB
Memory Control, Schedule, Process
CFast, TTY, USB, UART, RTC, VGA
TCP, IP, UDP, CMP, ARP, HTTP, SNMP, SMTP
Daemon (Apache, Telnet, FTPD)
Application Interface (POSIX, Socket, Secure Socket)
User Applications
File
System
Hardware
Micro Kernel
Device Driver
Protocol
Stack
API
AP
Linux
Kernel
