V2616A Linux System Recovery
7-6

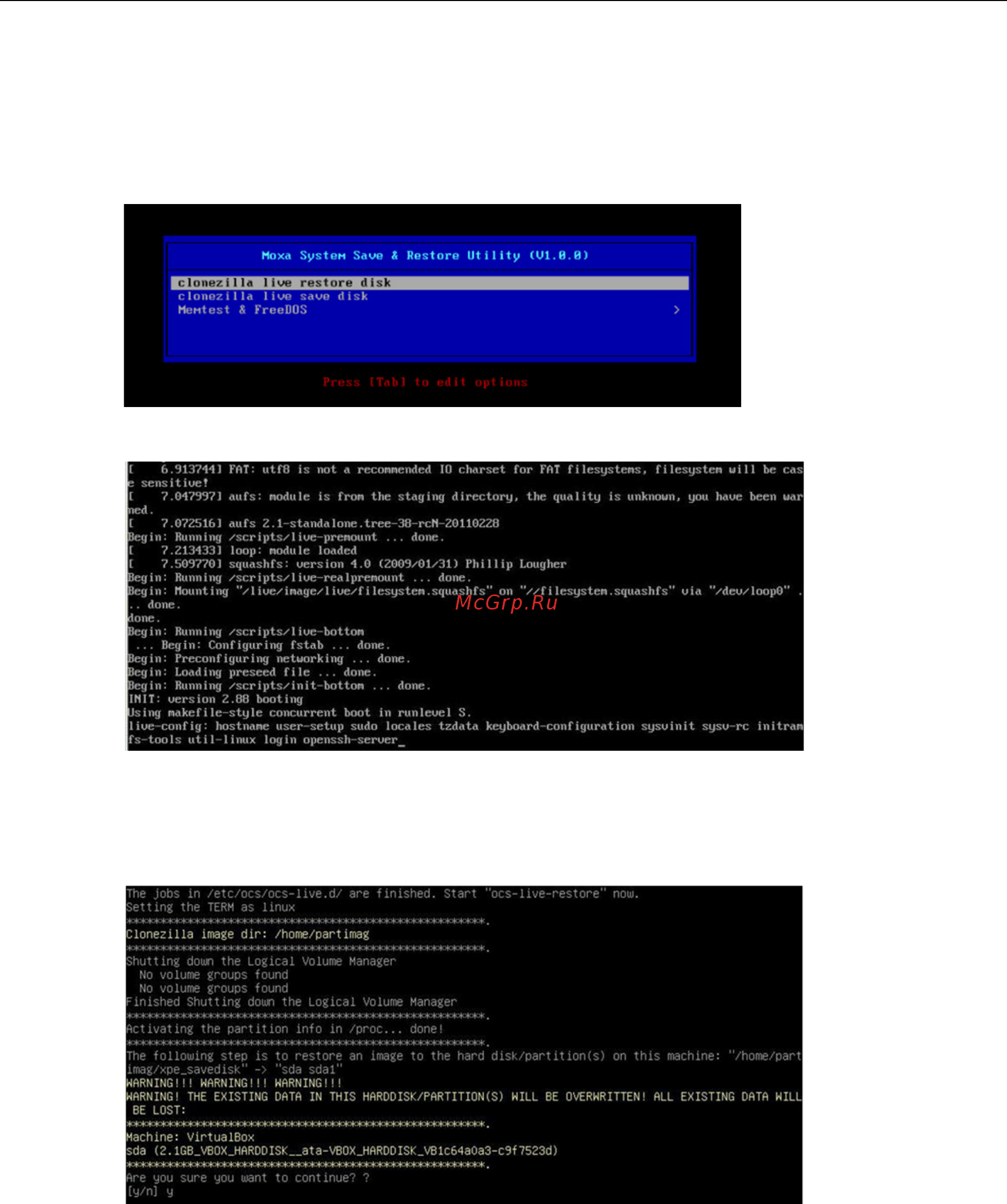

Step 3: Performing a System Recovery
Connect the USB drive to any of the V2616A’s USB ports and then reboot the computer. The system will boot
from the USB into the Clonezilla boot loader.
1. Select Clonezilla Live Restore Disk to boot into the system restoration environment.
2. Wait for the boot process to finish.
3. At this point, the system will remind you that you are about to overwrite your entire operating system with
a new drive image, and ask you if you want to continue. When prompted, enter Y (case insensitive) from
the keyboard to start the system restoration process. Any other letter or Ctrl-C will cancel it and exit
Clonezilla.
4. The system will give you another warning that you are about to overwrite your hard drive, and erase all
data on the partition listed (sda1, in the example below). If you wish to continue, enter Y (case
insensitive).
