MPC-2240 Hardware Manual Hardware Connection Description

3-3

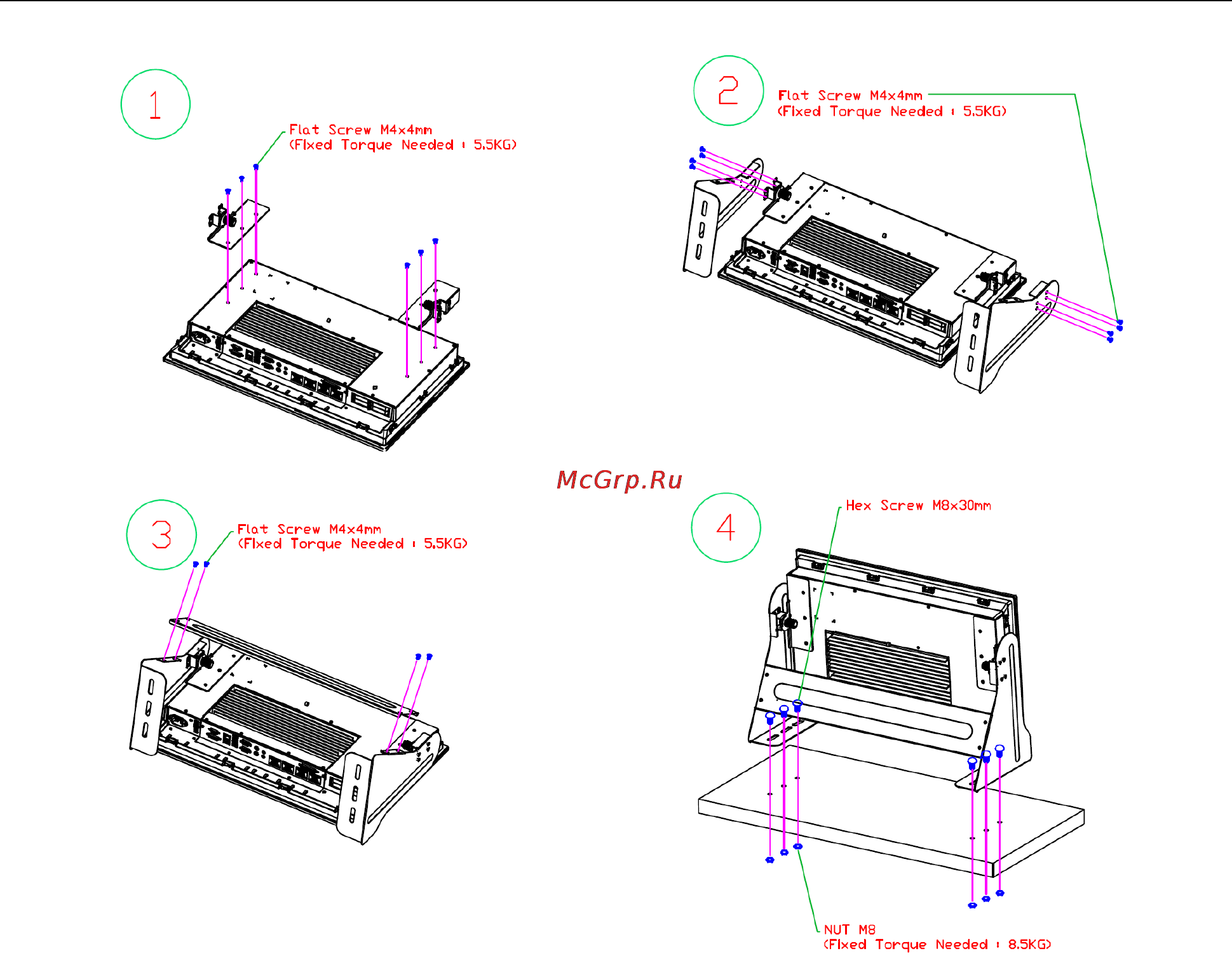

Place your MPC-2240 series panel computer on a clean, flat, well-ventilated desktop. For better ventilation,

leave some space between the MPC-2240 and other equipment. Do not place equipment or objects on top of

the computer, as this might damage the computer’s internal components.

Wall Mounting

The MPC-2240 Series comes with 14 optional clamp mounts that allow for installation onto a wall (where space

has been cut out to accommodate the rest of the hardware) or into computing stations where a flush mount is

desired. The maximum thickness of the surface to which the computer may be clamped is 11 mm. For

a secure mounting, all 14 clamps must be used. The clamp arms are fastened into slots on all four sides of the

MPC-2240. Use the short M4 SUS (stainless) screws to fasten the clamp arms to the MPC-2240 mounting slots,

as shown in the magnified inset in the diagram just below. Next, use the clamps to fasten the computer to its

mounting point; please note the torque value that is shown in the figure inset below.
