MPC-2240 Hardware Manual BIOS Setup
5-11

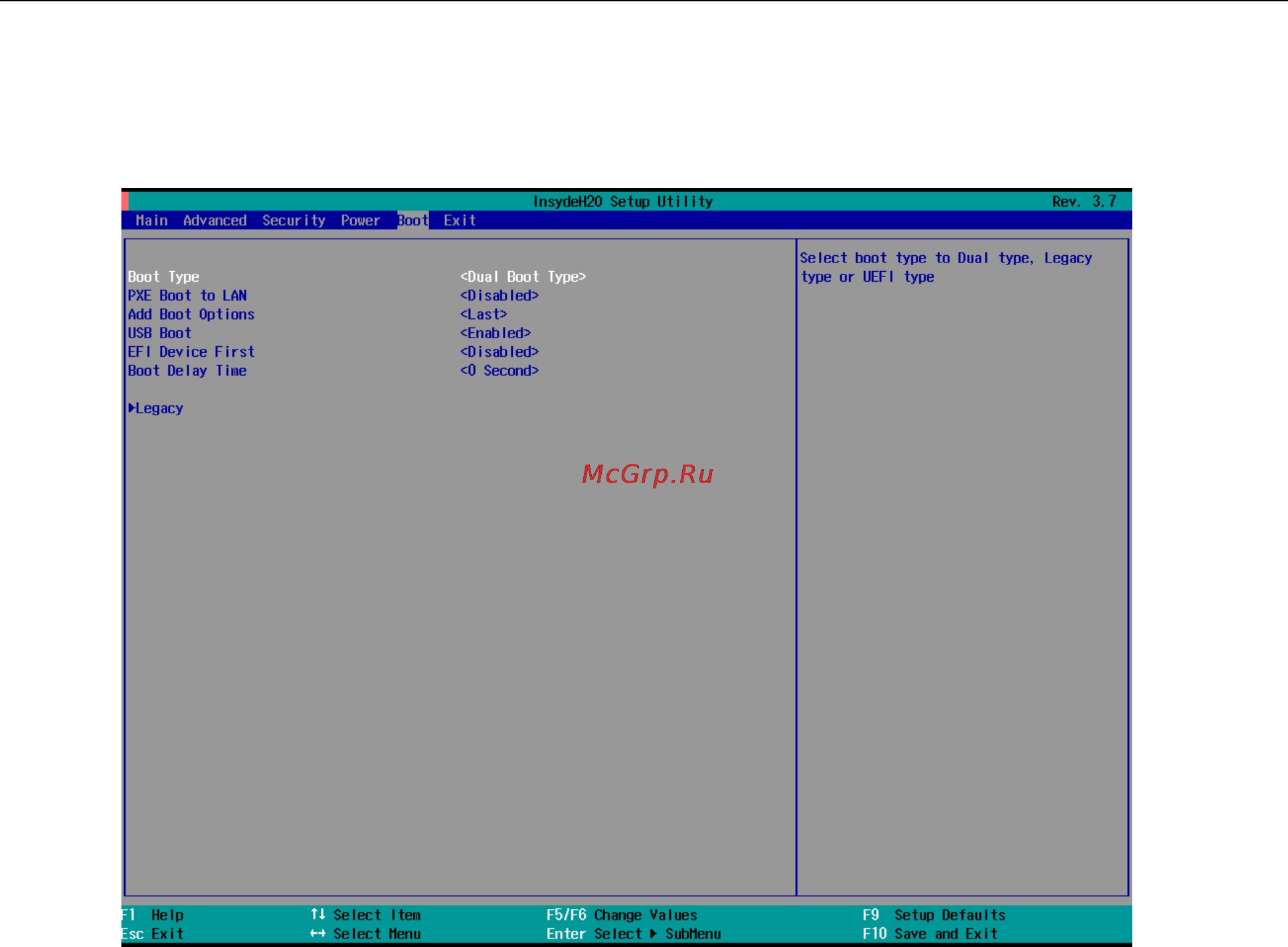

Boot Settings
The section allows users to configure boot settings.
Boot Type
This item allows you to enable/disable quick boot function.
Options: Dual Boot Type (default), Legacy Boot Type, UEFI Boot Type.
PXE Boot to LAN
This item allows you to enable/disable PXE boot to LAN function.
Options: Disabled (default), Enabled
Add Boot Options
This item allows you to add the boot order options for shell, network and Removables.
Options: Last (default), First
USB Boot
This item allows you to enable/disable USB boot function..
Options: Enabled (default), Disabled
EFI Device First
This item allows you to determine EFI device first or legacy device first. If enabled, EFI device will be the first;
if disabled, legacy device will be the first.
