MPC-2240 Hardware Manual BIOS Setup
5-2
Entering the BIOS Setup Utility

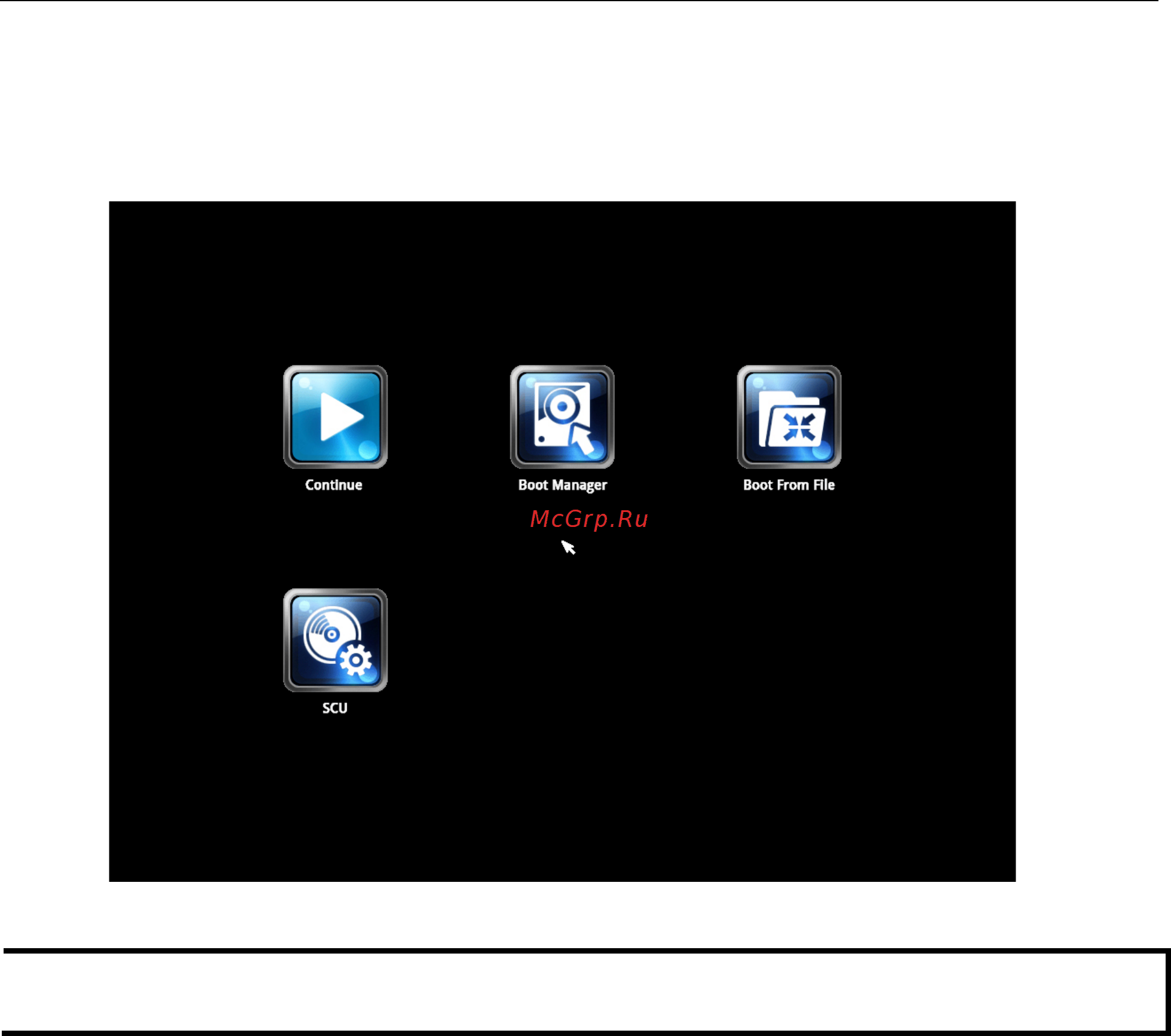

To enter the BIOS setup utility, press the F2 key while the system is booting up. The main BIOS Setup screen
will appear. Select SCU to enter the BIOS Configuration screen.
NOTE
The projected capacitive touch screen function is not supported in BIOS, please connect a keyboard to the
MPC-2240 for BIOS configuration.
A basic description of each function key is listed at the bottom of the screen. Refer to these descriptions to learn
how to use them.
F1: General Help
F5/F6: Change Values
F9: Setup Defaults
F10: Save and Exi
↑↓
: Select Item
←
→
: Select Menu
ESC: Exit
ENTER: Select or go to Submenu.
