MPC-2240 Hardware Manual Adjusting Screen Properties
4-6

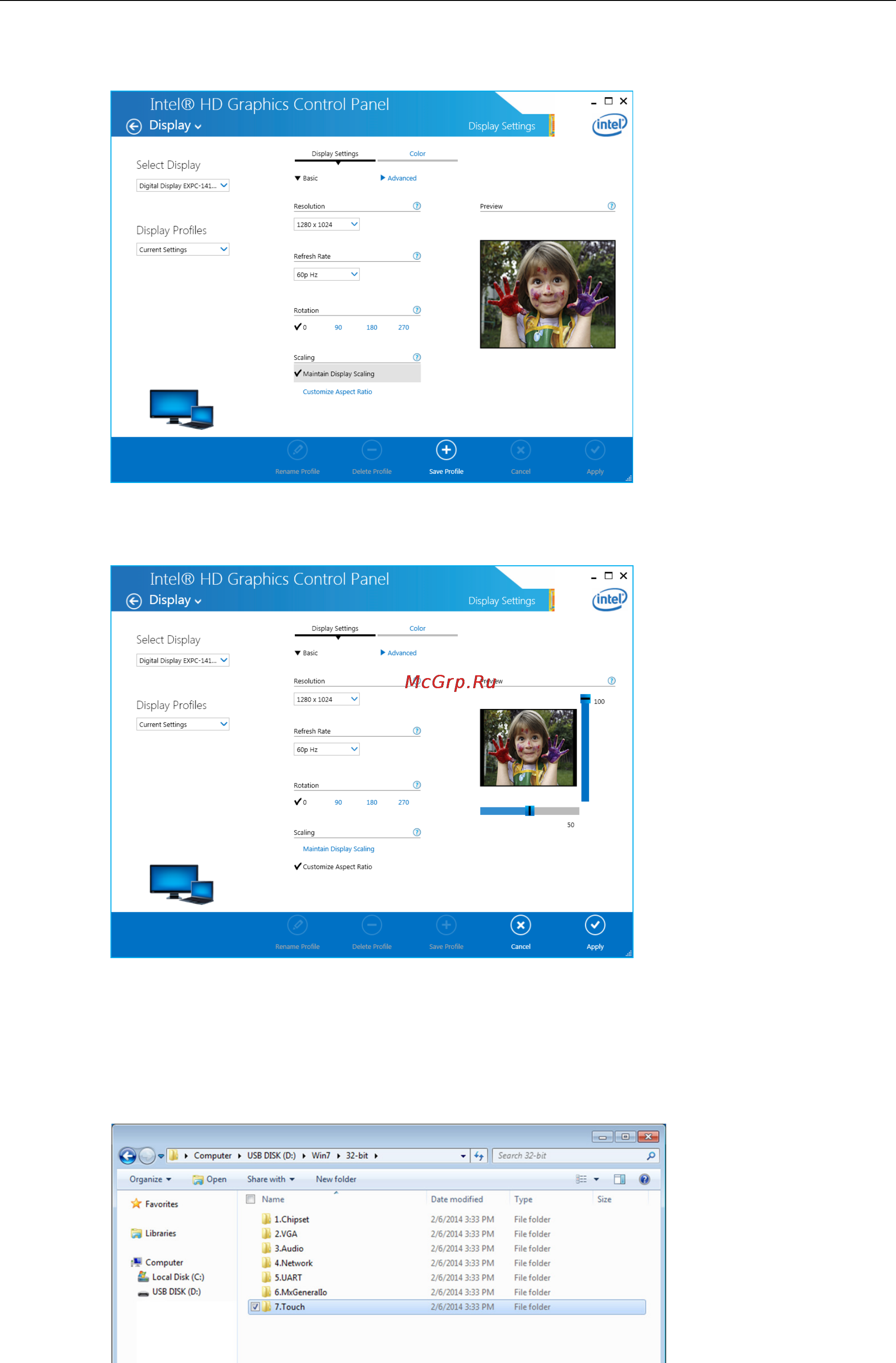

3. Adjustments may be made to resolution, refresh rate, and image rotation. Maintain Display Scaling
should be selected, so that the display can be maximized and fit the screen. Click Apply when finished.
4. Customize Aspect Ratio is available to solve problems with aspect ratio and improper image scaling. To
use it, adjust the image by manipulating the scrolling bars on the right.
5. Click Apply when finished.
Installing the Touch Screen Driver
For touch screen models, you need to install the touch function driver. Follow these steps.
1. In the Driver folder, select 7.Touch folder.
