MPC-2240 Hardware Manual Introduction
1-5
Optional Features for the MPC-2240
CPU Default • lntel Celeron® processor 1047UE (2M Cache, 1.40GHz), TDP 17 watts
Options • lntel Core™ i3 processor 3217UE (3M Cache, 1.60GHz), TDP 17 watts
• lntel Core™ i7 processor 3517UE (4M Cache, 2.80GHz), TDP 17 watts
RAM Default 4 GB
Option 8 GB (max.)
OS Default N/A
Options • Windows 7 Professional
• Windows XP Embedded
• Windows Embedded Standard 7
• Windows XP SP3
• Linux Debian 7
Factory
Options
• Projected capacitive touch screen (multi-touch, USB interface)
• Optical bonding
• Color calibrated for ECDIS
• Customized options for SSD drives

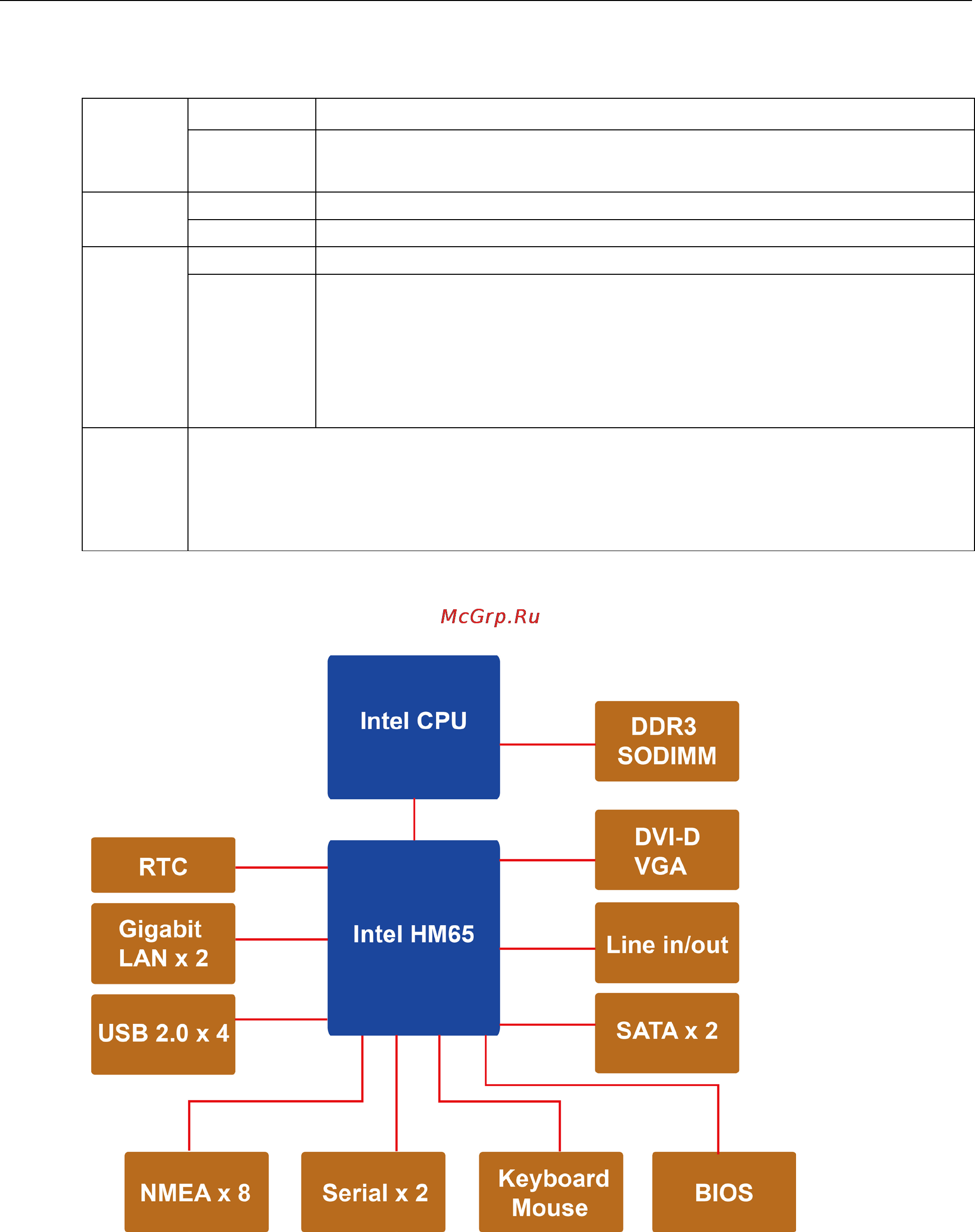

Hardware Block Diagram
