MPC-2240 Hardware Manual Hardware Connection Description

3-10

NOTE You must use a 5-pin terminal block (3.81 mm) to connect to an NMEA port.

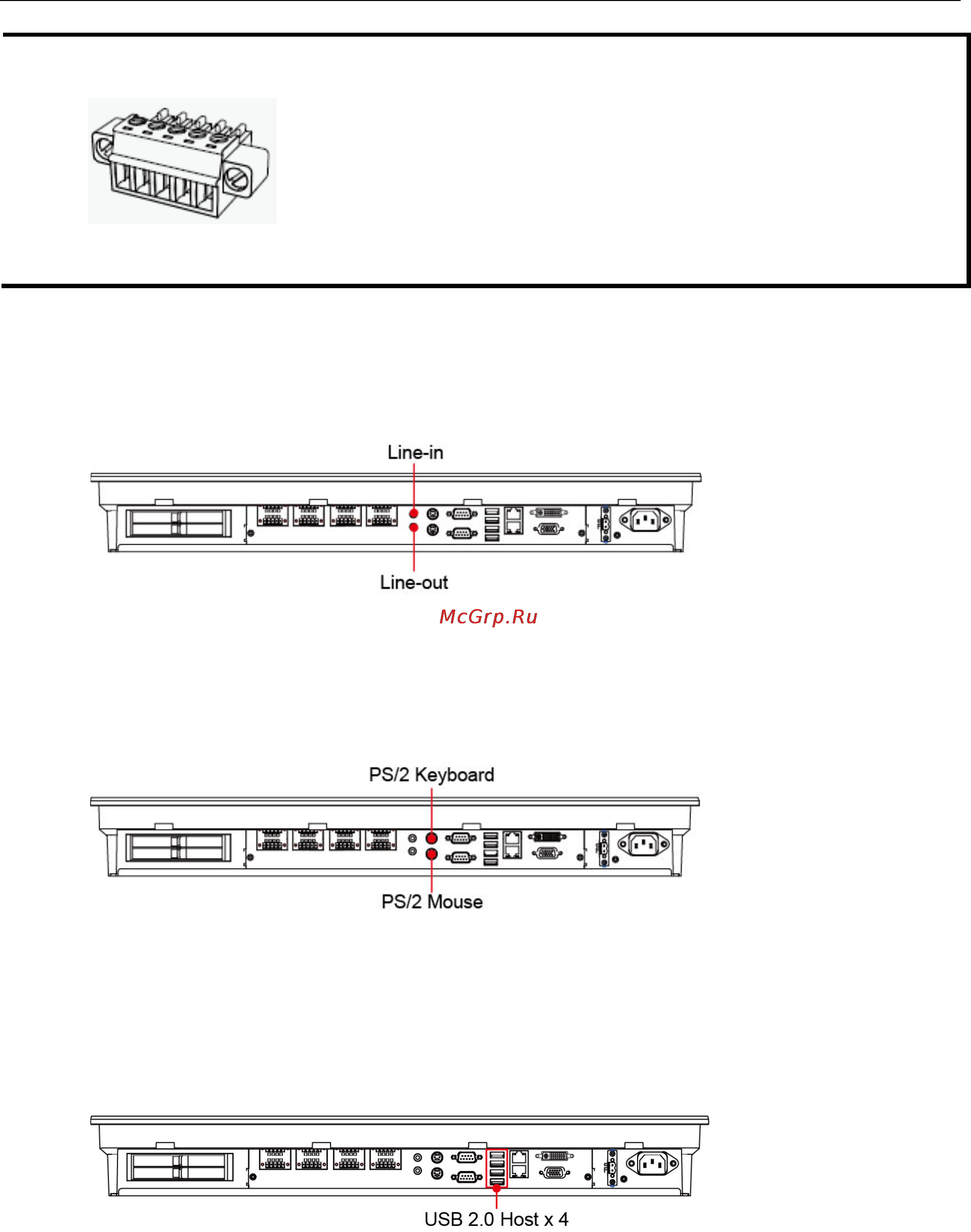

The following figure shows a 5-pin terminal block (3.81 mm).

The accessory package that comes with the MPC-2240 includes eight 5-pin terminal blocks

. To order additional

5-pin terminal blocks (P/N 1111 210511013), please contact your local Moxa sales representative.

Connecting Speakers or Headphones

The MPC-2240 panel computer comes with standard 3.5 mm monaural line-in and line-out ports for connecting

microphone, speakers, and headphones. See the following figure for detailed location.

Connecting a PS/2 Keyboard and Mouse

Your MCP-2240-MP computer comes with two PS/2 connectors to connect to a PS/2 keyboard (upper connector)

and PS/2 mouse (lower connector). See the following figure for the detailed location.

Connecting to USB Devices

The MPC-2240 Series comes with 4 USB 2.0 ports on the bottom face of the computer. The ports may be used,

among other things, for an external flash disk or hard drive for storing large amounts of data. You can also use

these USB ports to connect to a keyboard or a mouse.
