Руководство по аппаратной части Страница: 20

Moxa MD-119-X1 [20/44] Main group 1

MD-124 HW Manual On-screen Display and Display Configuration

B-4

Main Group 1

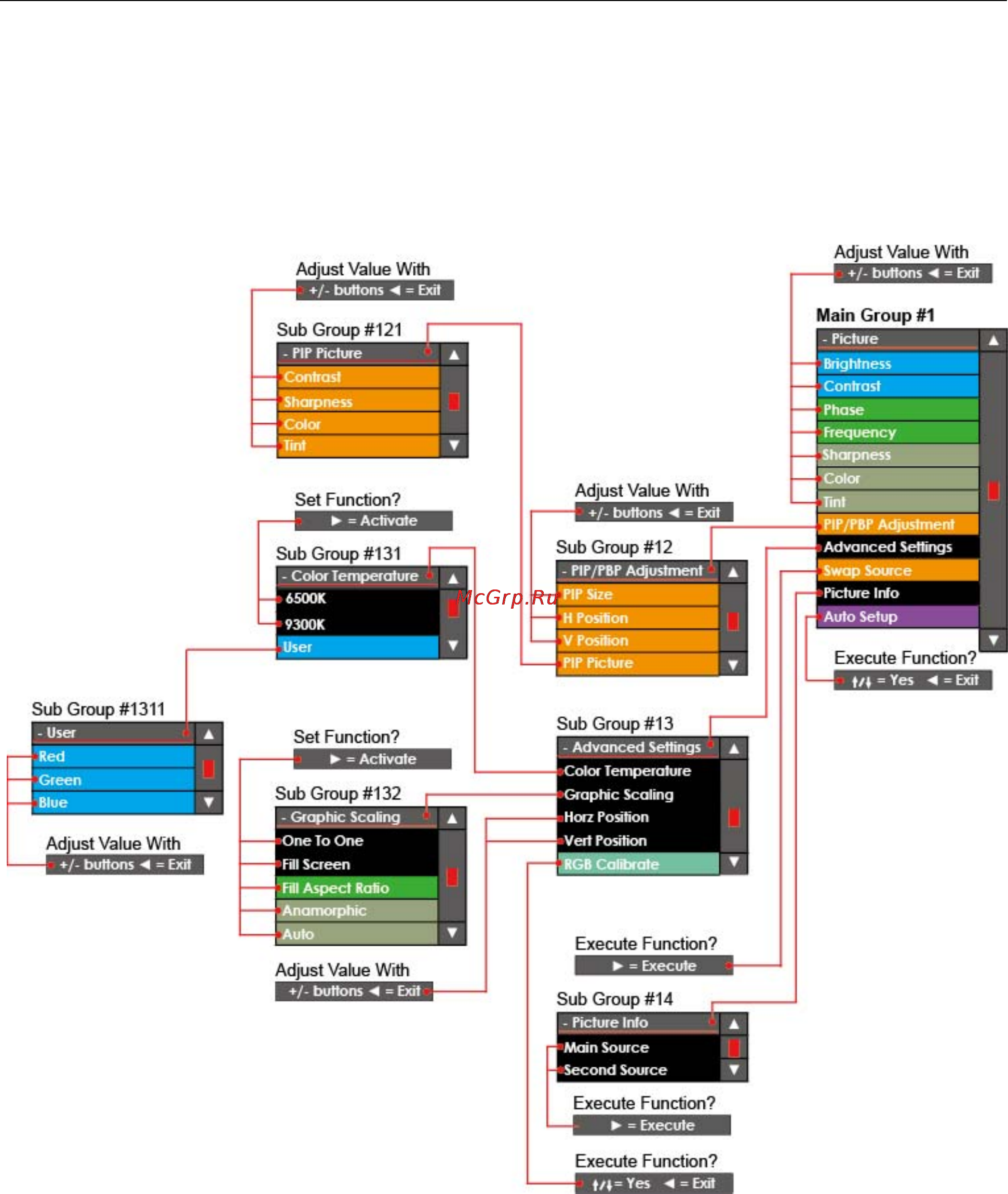

In this group (and its sub groups) the user can adjust image properties that directly affect the picture across all incoming

signal sources. Some of these subgroups have further options; please review this menu map to quickly determine where

a desired property is located within the menu hierarchy. For detailed information about each item and its parameters,

please review the OSD Menu Items Explained later in this section.
