H110S-2P

USER MANUAL

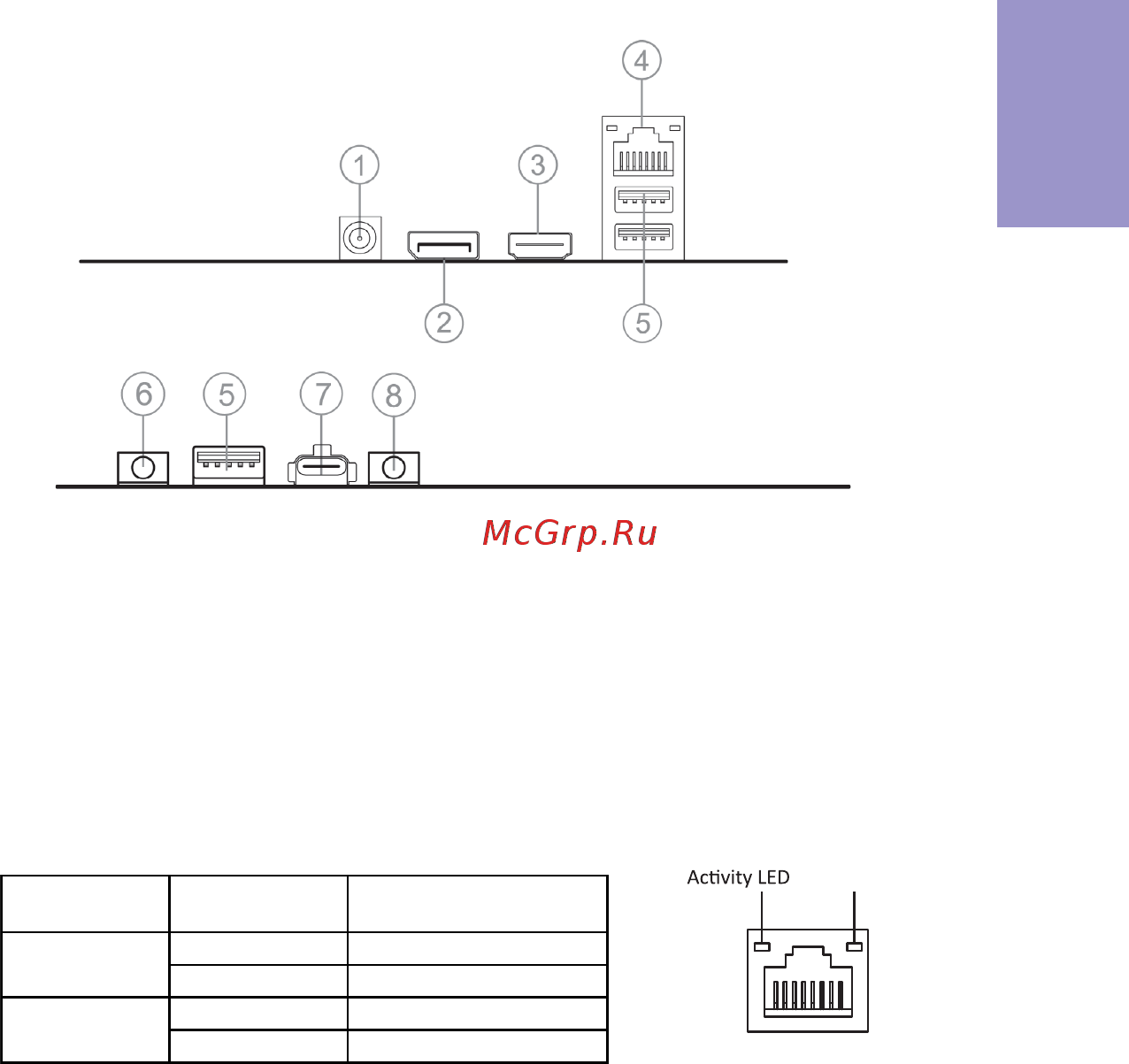

Chapter 1

I/O Ports

1. DC in Jack

Connect the DC_IN port to the power adapter.

2. Display Port

You can connect the display device to the display port.

3. HDMI Port

You can connect the HDMI device to the HDMI port.

4. LAN Port

Connect an RJ-45 jack to the LAN port to connect your computer to the Network.

5. USB 3.0 Type A Ports

Use the USB 3.0 ports to connect USB 3.0 devices.

6. Headphone

It is used to connect to speakers or headphones.

7. USB 3.0 Type C Port

Use the USB 3.0 ports to connect USB 3.0 devices.

8. Microphone Jack

It is used to connect to a microphone.

LAN LED Status Description

OFF

No data

Orange blinking

Active

OFF

No link

Green

Link

Activity LED

Link LED

LAN Port
