H110S-2P USER MANUAL

Chapter 4

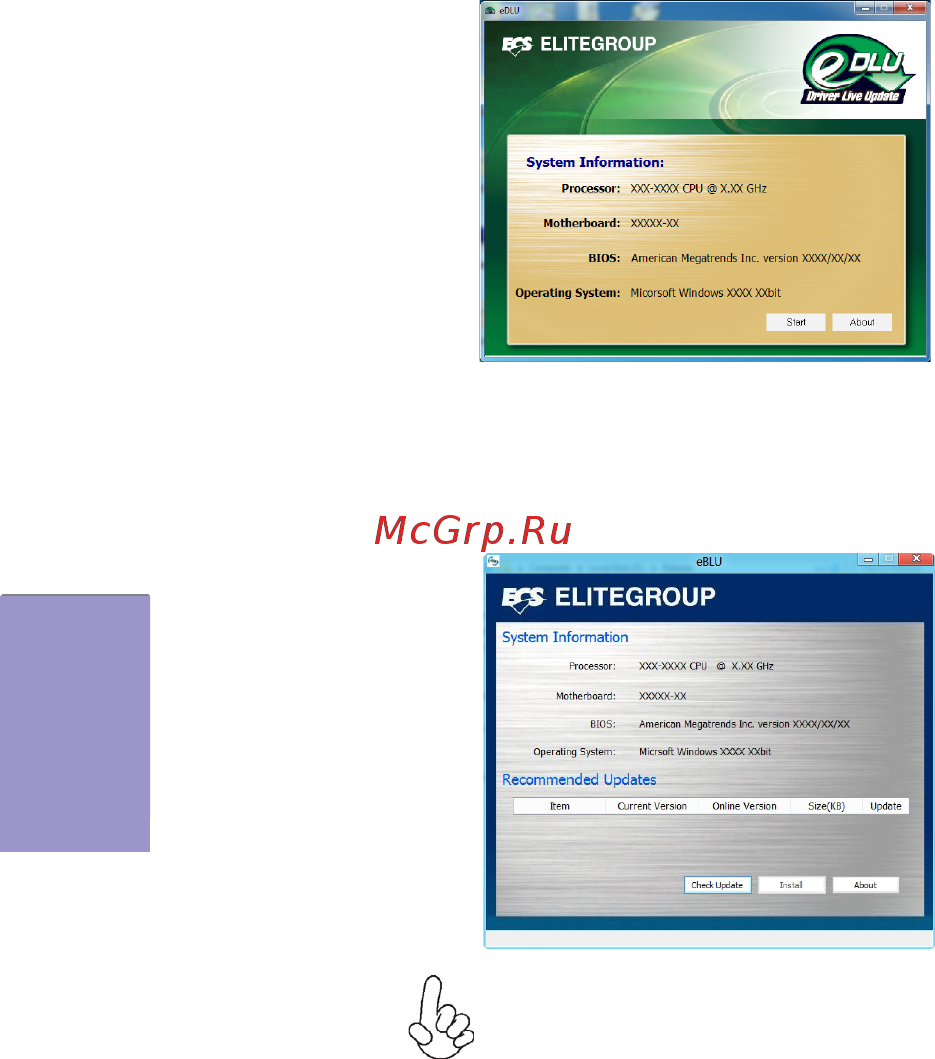

eBLU

ECS eBLU utility makes BIOS update faster and easier. eBLU will list the latest BIOS

with a default check-mark. Click”install” button to install.

eDLU

ECS eDLU utility makes updating drivers fast and easy. eDLU saves time and hassle

by listing all the latest drivers online. Just select the one you prefer and start to

download and install the drivers.

Microsoft .NET Framework 3.5 is required.
