Chapter 2

H110S-2P USER MANUAL

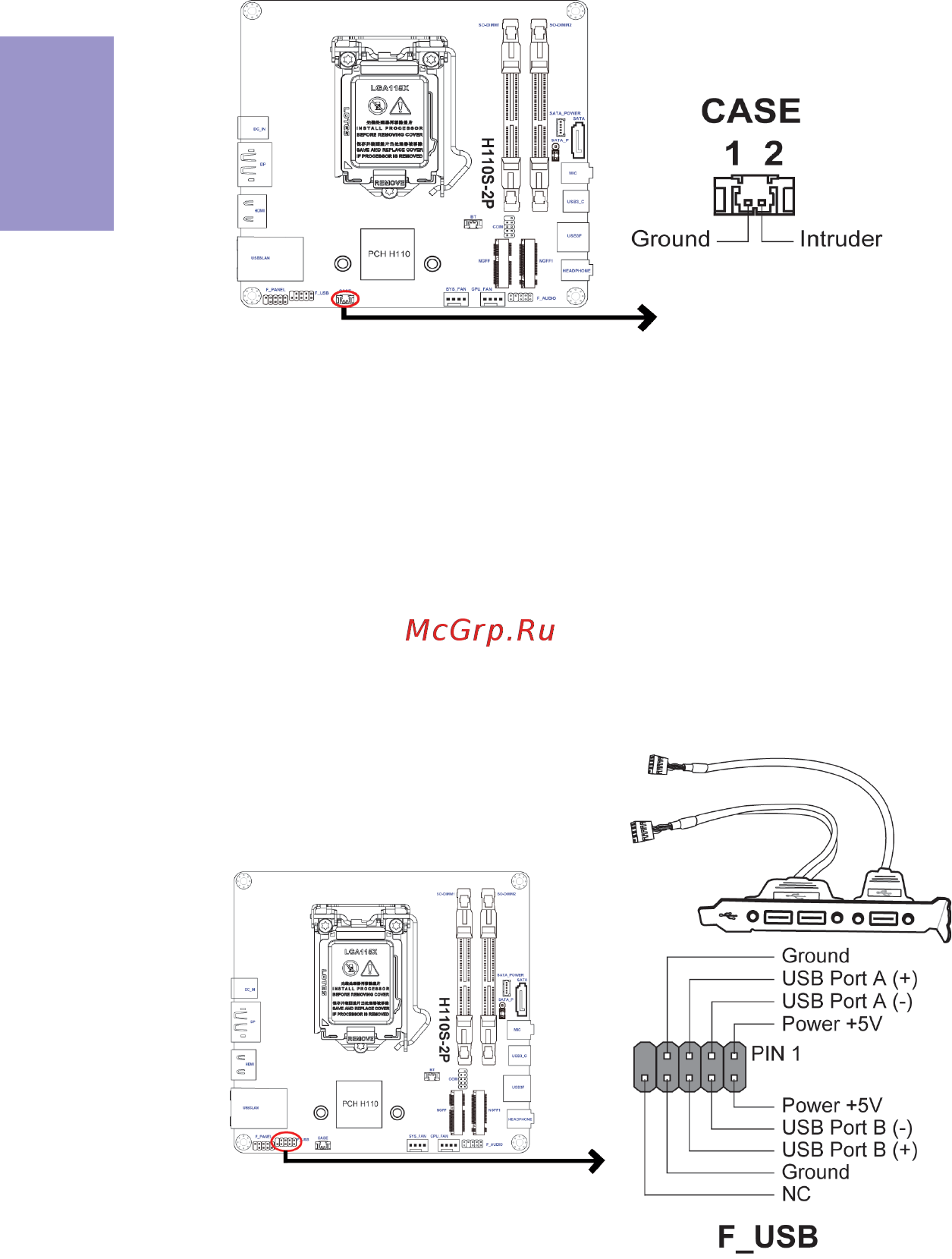

4. CASE: Chassis Intrusion Detect Header

This detects if the chassis cover has been removed. This function needs a chassis

equipped with instrusion detection switch and needs to be enabled in BIOS.

The motherboard has one USB 2.0 header supporting two USB 2.0 ports.

Additionally, some comuter cases have USB ports at the front of the case. If you have

this kind of case, use auxiliary USB connector to connect the front-mounted ports to

the motherboard.

5. F_USB: Front Panel USB 2.0 header
