Chapter 3
H110S-2P USER MANUAL
40
The chipset menu items allow you to change the settings for the North Bridge
chipset, South Bridge chipset and other system.

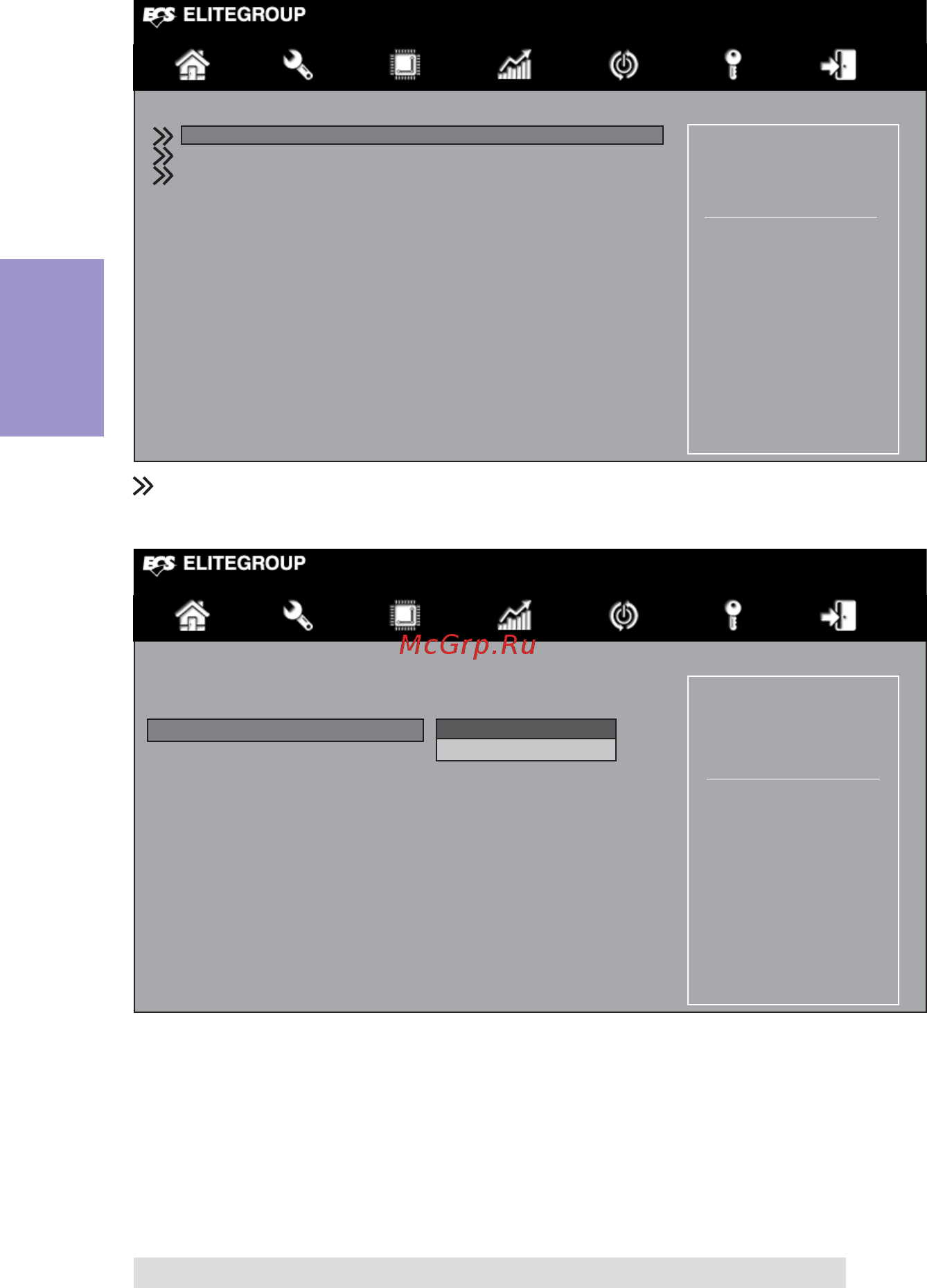

Chipset Menu
DVMT Memory (256M)
When set to DVMT Mode, the graphics chip will dynamically allocate system memory
as graphics memory, according to system and graphics requirements.
System Agent Configuration
Scroll to this item and press <Enter> to view the following screen:
System Agent (SA)
Parameters.
Main Advanced Chipset M.I.B. X Security Boot Exit
System Agent Configuration
PCH Configuration
ME Configuration
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
IGD Memory (64M)
This item shows the information of the IGD (Internal Graphics Device) memory.
Main Advanced Chipset M.I.B. X Security Boot Exit
Select DVMT 5.0 Pre-
Allocated (Fixed) Graphics
Memory size used by
Internal Graphics Device.
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
System Agent Configuration
IGD Memory 64M
DVMT Memory 256M
Press <Esc> to return to the Chipset Menu page.
