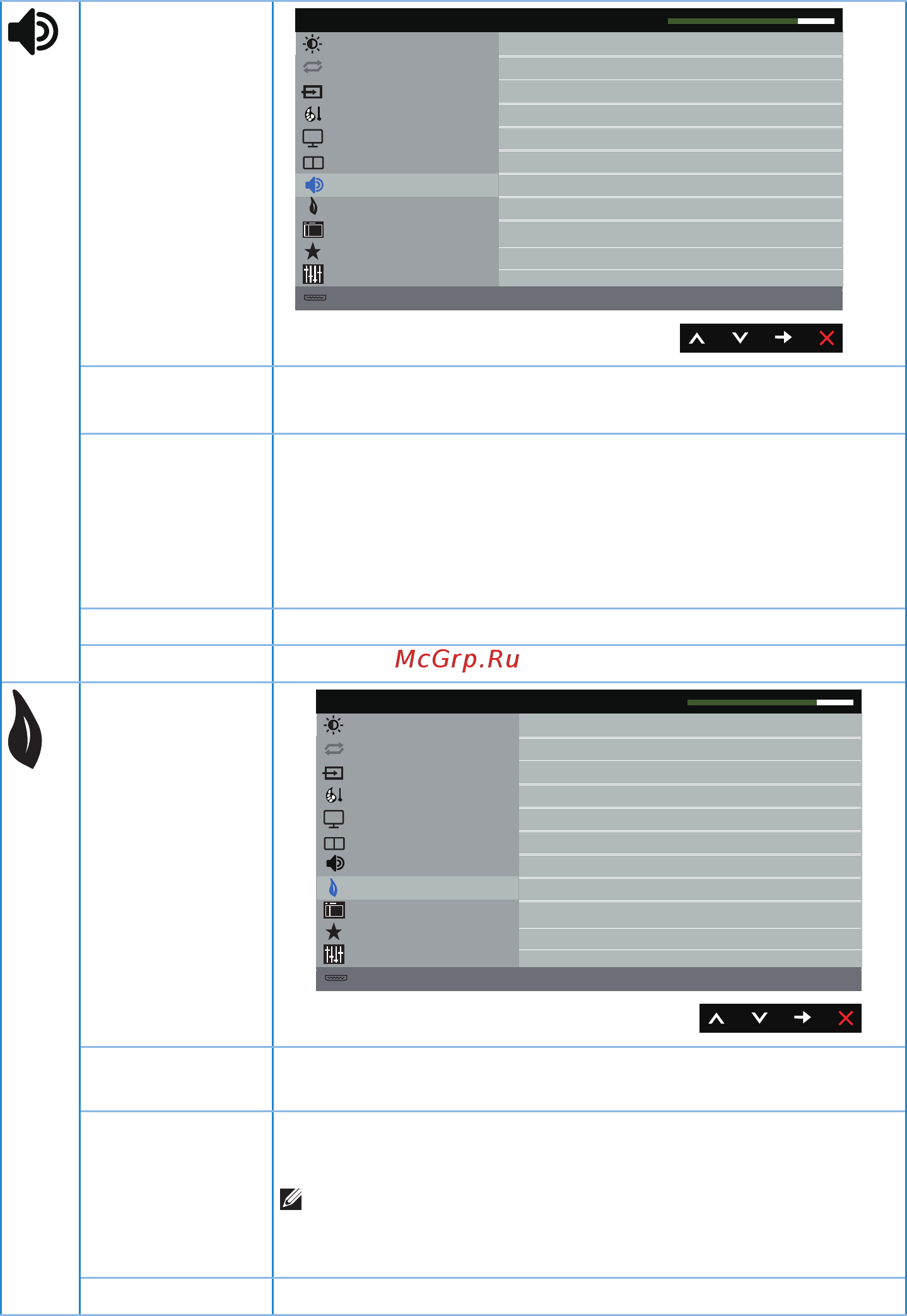

Operating your monitor | 39
Audio
Energy
Menu
Personalize
Others
Resolution: 1920x1080, 50Hz
Dell P4317Q Energy Use
Maximum: 3840x2160, 30Hz
Brightness / Contrast
Input Source
Color
Display
PIP/PBP
Audio
Volume
50
Audio Source
Speaker
Reset Audio Setting
Enable
Auto Adjust
Volume Use the buttons to adjust the volume.Minimum is 0 (-).
Maximum is 100 (+).
Audio Source
Allows you to set the audio source mode to:
∞
Window 1
∞
Window 2
∞
Window 3
∞
Window 4
Speaker Allows you to enable or disable speaker function.
Reset Audio Select this option to restore default audio settings.
Energy
Menu
Personalize
Others
Resolution: 1920x1080, 50Hz
Dell P4317Q Energy Use
Maximum: 3840x2160, 30Hz
Brightness / Contrast
Input Source
Color
Display
PIP/PBP
Energy
Audio
Power Button LED
On During Active
On During Standby
Reset Energy
USB
Auto Adjust
Power Button
LED
Allows you to set the power LED indicator on during active
or off during active to save energy.
USB Allows you to enable or disable USB function during
monitor standby mode.
NOTE: USB on/o under standby mode is only available
when the USB upstream cable is unplugged. This option
will be greyed out when the USB upstream cable plugs in.
Reset Energy Select this option to restore default energy settings.
