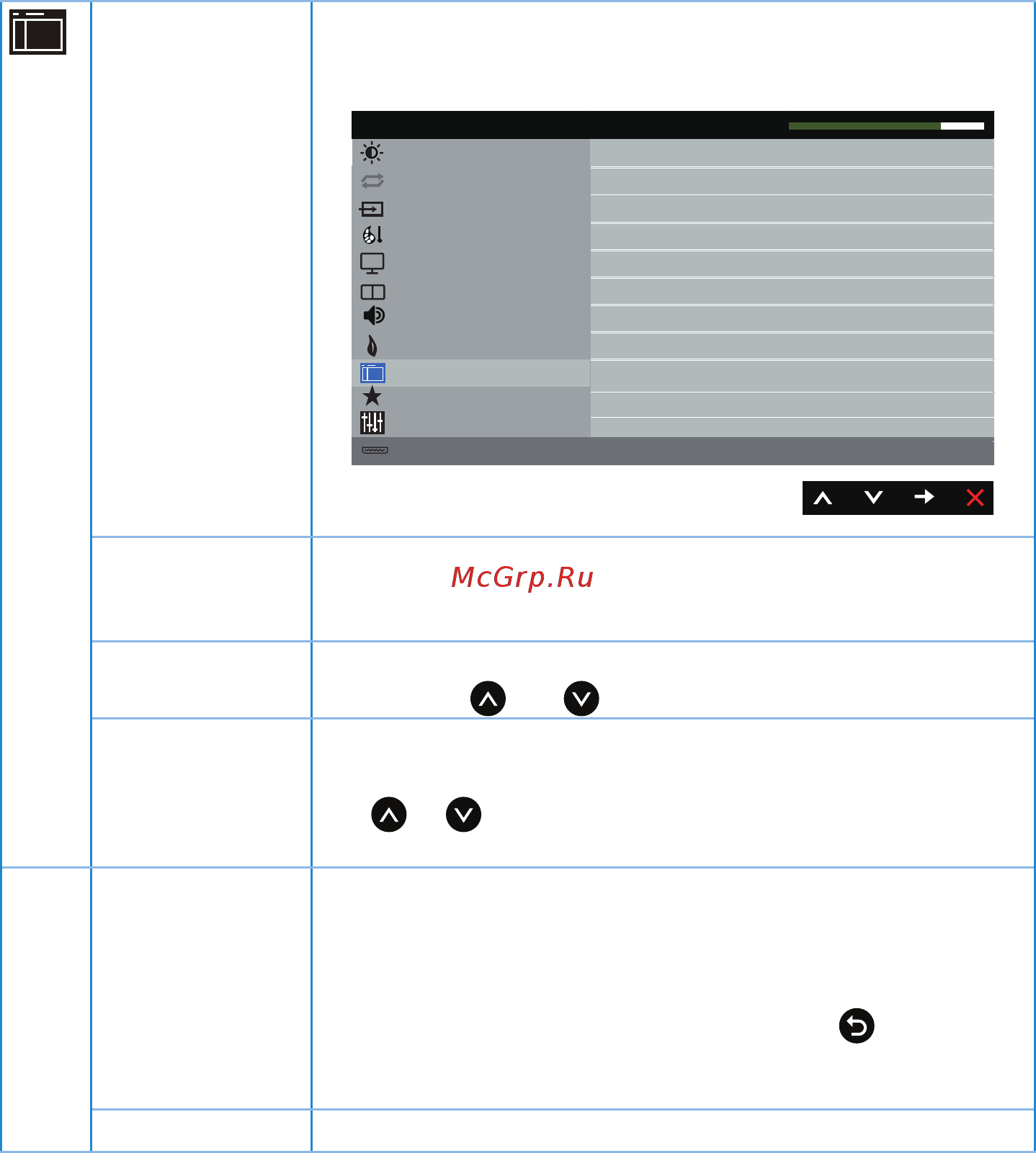

40 | Operating your monitor
Menu Select this option to adjust the settings of the OSD, such as,
the languages of the OSD, the amount of time the menu
remains on screen and so on.
Personalize
Others
Resolution: 1920x1080, 50Hz
Dell P4317Q Energy Use
Maximum: 3840x2160, 30Hz
Brightness / Contrast
Input Source
Color
Display
PIP/PBP
Audio
Energy
Menu
English
20
20 s
Unlock
Language
Transparency
Timer
Lock
Reset Menu
Auto Adjust
Language
Language options set the OSD display to one of the eight
languages (English, Spanish, French, German, Brazilian
Portuguese, Russian, Simplified Chinese, or Japanese).
Transparency
Select this option to change the menu transparency by
pressing the and buttons from 0 to 100.
Timer OSD hold time: sets the length of time the OSD will remain
active after the last time you pressed a button.
Use or to adjust the slider in 1 second increments,
from 5 to 60 seconds.
Lock Controls user access to adjustments. When Lock is selected,
no user adjustments are allowed. All buttons are locked.
NOTE: When the OSD is locked, pressing the menu key
takes you directly to the OSD settings menu, with 'OSD
Lock' pre-selected on entry. Press and hold key for 10
seconds to unlock and allow user access to all applicable
settings.
Reset Menu Reset all OSD settings to the factory preset values.
