12.Reinstallthebattery.See“Replacingthebattery”onpage67.
13.Turnthecomputeroveragain.Connecttheacpoweradapterandallcables.
ToreplaceaPCIExpressMiniCardwiththreeconnectors
IfyourcomputerhastheMultipleInputMultipleOutput(MIMO)feature,aPCIExpressMiniCardthathas
threeconnectorscomeswiththecomputer.Toreplacethecard,dothefollowing:
1.Turnoffthecomputer;thendisconnecttheacpoweradapterandallcablesfromthecomputer.Waitfor
threetoveminutes,tilltheinsideofthecomputercools.
2.Closethecomputerdisplay,andturnthecomputerover.
3.Removethebattery.Formoreinformationabouthowtoremovethebattery,referto“Replacingthe
battery”onpage67.

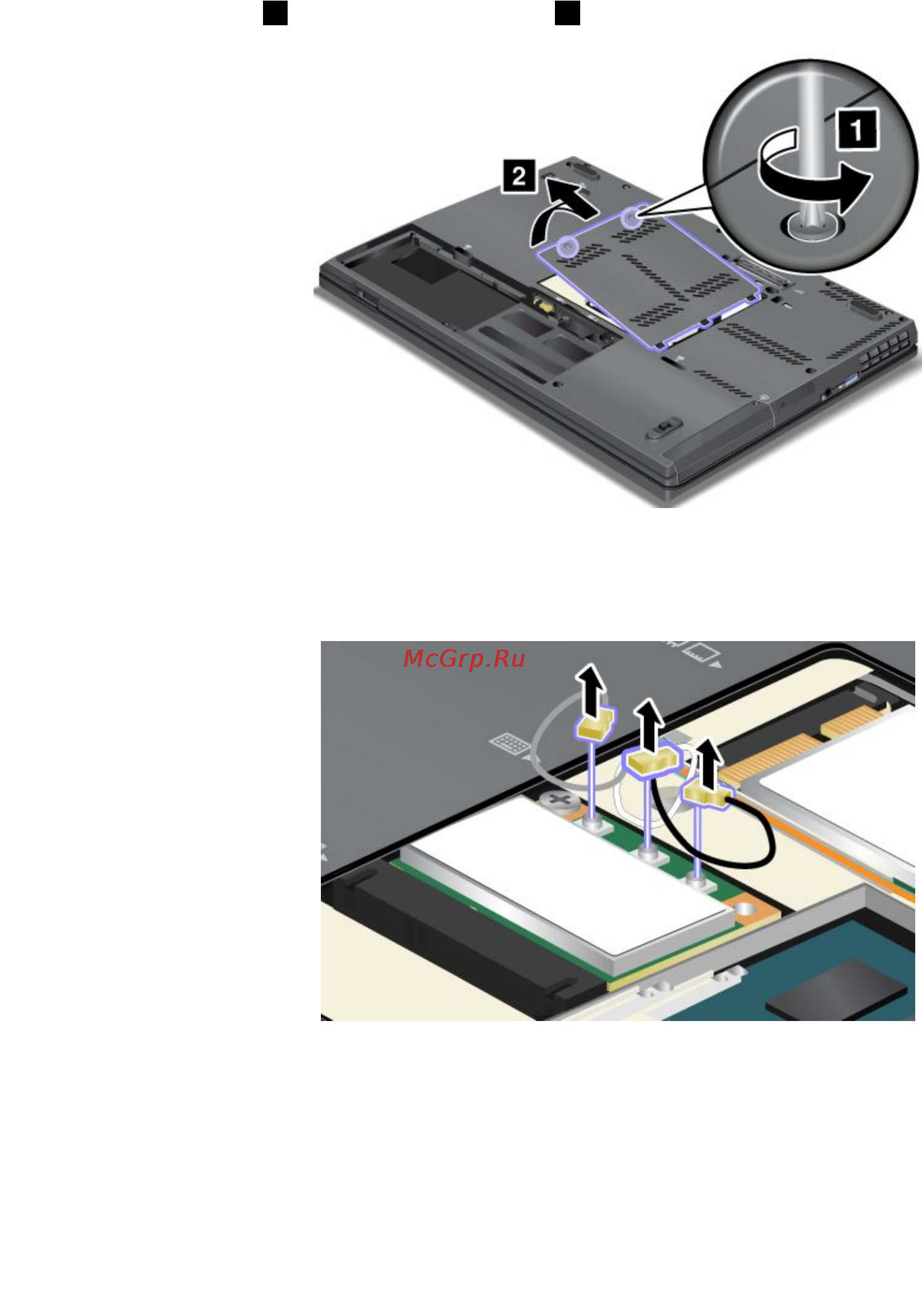

4.Loosenthescrews1,thenremovethecover2.
5.Ifatoolforremovingconnectorsisincludedinthepackagewiththenewcard,useittodisconnectthe
cablesfromthecard.Ifnosuchtoolisincluded,disconnectthecablesbypickinguptheconnectors
withyourngersandgentlyunpluggingthem.
