![Lenovo thinkpad t430s, n1m2xrt [110/192] Replacing the serial ultrabay slim device](/img/pdf.png)
Lenovo thinkpad t430s, n1m2xrt [110/192] Replacing the serial ultrabay slim device
![Lenovo thinkpad t430s, n1m2xrt [110/192] Replacing the serial ultrabay slim device](/views2/1221504/page110/bg6e.png)
14.Reinstallthebattery.See“Replacingthebattery”onpage67.
15.Turnthecomputeroveragain.Connecttheacpoweradapterandallcables.
ReplacingtheSerialUltrabaySlimdevice
ToreplacetheSerialUltrabaySlimdevice,dothefollowing:
1.Turnoffthecomputer,thendisconnecttheacpoweradapterandallcablesfromthecomputer.

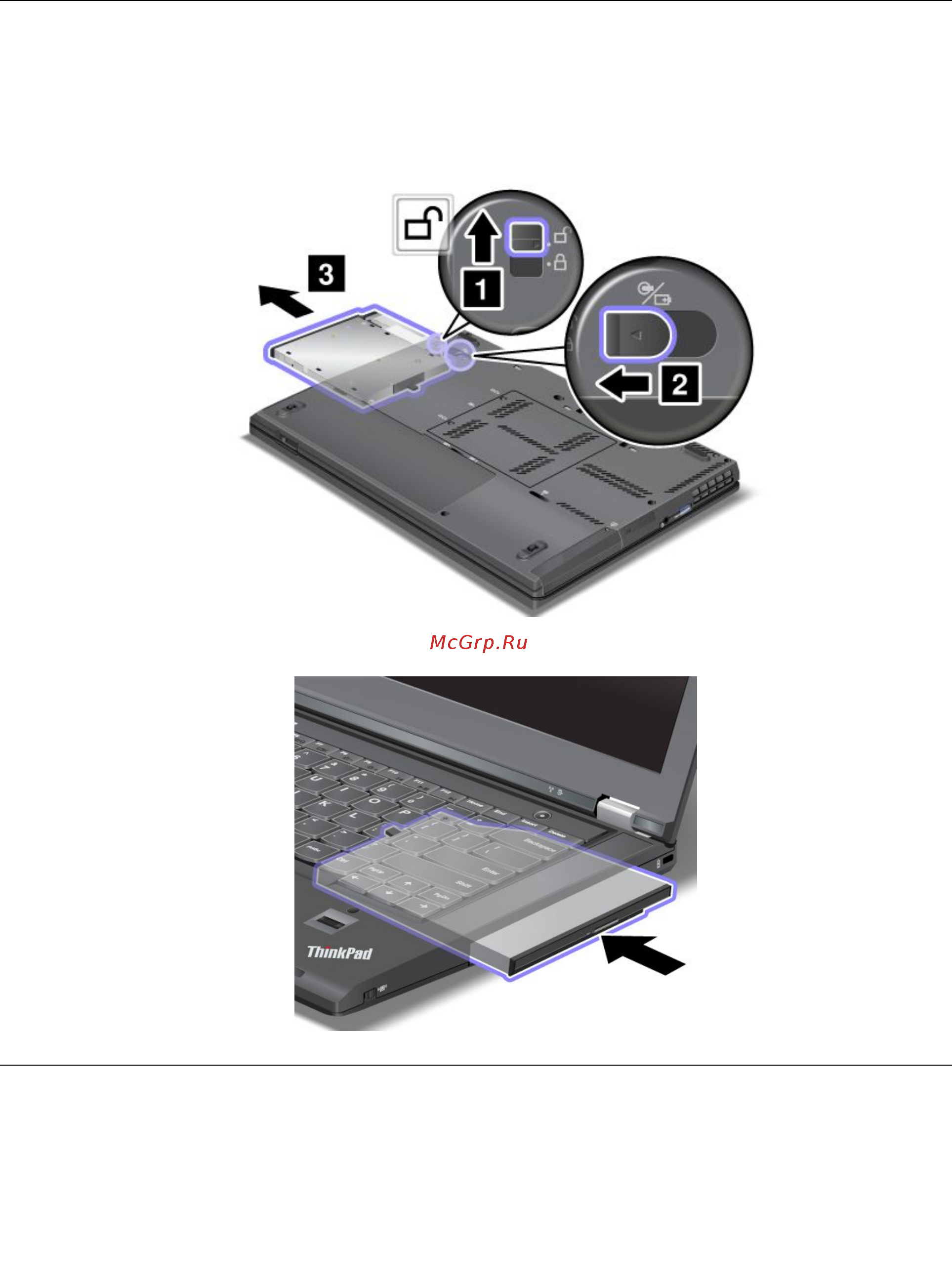

2.Unlockthebaylocklatchandholditintheunlockedposition.Then,slidethebayejectlatchinthe
directionshownbythearrow,thenpullouttheSerialUltrabaySlimdevice.
3.Insertthenewdevicermlyintothebay;thenpressthedevicermlytoattachittotheconnector.
ReplacingtheSIMcard
Beforeyoustart,printtheseinstructions.
92UserGuide
