2.Replacethedevicefollowinginstructionsin“ReplacingtheSerialUltrabaySlimdevice”onpage92.
InstallingasecondaryharddiskdriveintotheSerialUltrabaySlimbay
Youcanupgradethecapacityofyourcomputerbyinstallingasecondaryharddiskdrive.
Toinstallasecondaryharddiskdriveintoyourcomputer,dothefollowing:
1.IfanotherSerialUltrabaySlimdeviceoradummydeviceisinstalledintheSerialUltrabaySlimbay,
removethedevice.Seedetailedinstructionsin“ReplacingtheSerialUltrabaySlimdevice”onpage92.
2.InstalltheharddiskdriveintotheThinkPadSerialHardDriveBayAdapterIII(harddiskdriveadapter),
whichisavailableasanoption.Seedetailedinstructionsin“Installingasecondaryharddiskdriveinto
theharddiskdriveadapter”onpage98.
Note:TheThinkPadSerialHardDriveBayAdapterIIIsupportsonly2.5-inch(7mmheight)harddisk
drives.
3.InstalltheharddiskdrivewithadapterintotheSerialUltrabaySlimbayofyourcomputer.Seedetailed
instructionsin“Insertingthesecondaryharddiskdriveadapterintothebay”onpage100
Attention:Replaceaharddiskdriveonlyifyouareupgradingitorhavingitrepaired.Frequentreplacement
oftheharddiskdrivemightdamagethedriveandbay.
Installingasecondaryharddiskdriveintotheharddiskdriveadapter

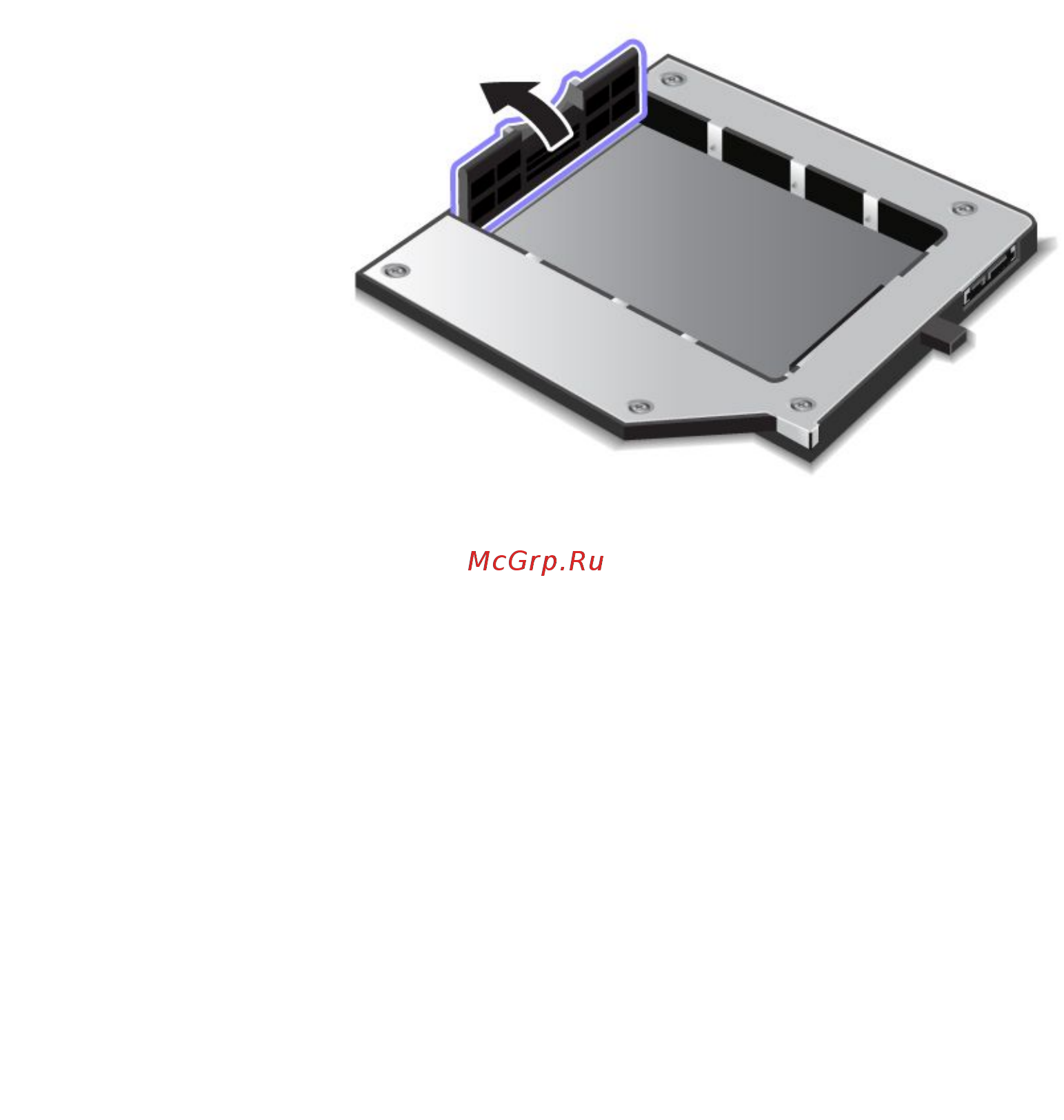

1.Liftupthestopperontheharddiskdriveadapter.
98UserGuide
