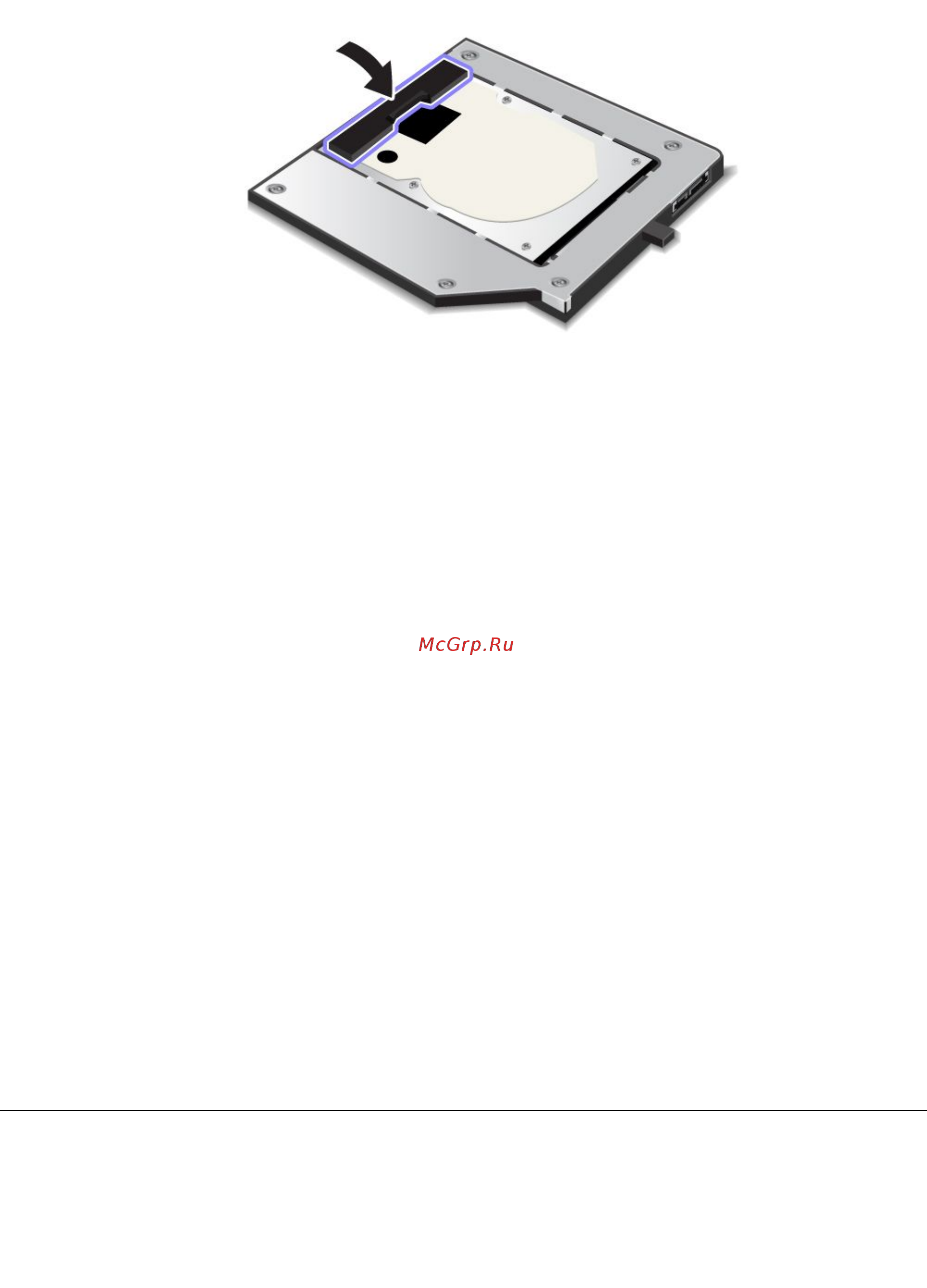

4.Closetheharddiskdrivestoppertosecuretheharddiskdriveinplace.
Notes:
•Makesurethattheharddiskdriveisinsertedtightlyintotheharddiskdriveadapter.
•YoucannotinsertaharddiskdriveforotherThinkPadcomputersintothisThinkPadSerialHardDrive
BayAdapterIII.IfyouwanttousethelesontheharddiskdriveofanotherThinkPadcomputer,copy
thelestoaremovablestoragedevice.
Insertingthesecondaryharddiskdriveadapterintothebay
Dependingonthecomputerstate,toinstallthesecondaryharddiskdrivewithadapterintotheSerial
UltrabaySlimbay,dooneofthefollowing:
•Whenthecomputeristurnedoff.Installtheharddiskdrivewithadapterfollowinginstructionsin
“ReplacingtheSerialUltrabaySlimdevice”onpage92.
•Whenthecomputerisinsleepmode.Installtheharddiskdrivewithadapterfollowinginstructionsin
“Performingawarm-swapoperation”onpage97.
•Whenthecomputerisoperating.Installtheharddiskdrivewithadapterfollowinginstructionsin
“Performingahotswapoperation”onpage97.
Ifyouinstalltheharddiskdrivewithadapterintothebaywhilethecomputerisinsleepmodeoroperating,
andtheharddiskdriveisprotectedbyapassword,youcannotgetaccesstothedriverightafterinstalling
theadapterintothebay.Togetaccesstoit,dothefollowing:
1.Putyourcomputerintohibernationmode.
2.Pressthepowerbuttontoreturntonormaloperation.Theharddiskpasswordiconisdisplayedat
theupperleftofthescreen.
3.Typethepassword.Thenyoucangetaccesstotheharddiskdrive.
Note:Whenyouinstalltheharddiskdrivewithadapterintothebay,makesurethatyouinstallitrmly.You
cansecuretheharddiskdriveadapterbyinstallingahex-headscrew(includedintheshippingcontents)
intothescrewhole.
ThinkPaddockingstationsandportreplicators
Dependingonthemodel,yourcomputermightsupportthefollowingdockingstationsorportreplicators:
•ThinkPadPortReplicatorSeries3
100UserGuide
