- 107 -

Unique Features

(Note) PEG ASPM, PCH ASPM, DMI ASPM Control are configurable only when Platform Power

Management is set to Enabled.

5-2-10 Platform Power Management

This application allows you to change the Platform Power Management settings in Windows and sync the

settings to the BIOS.

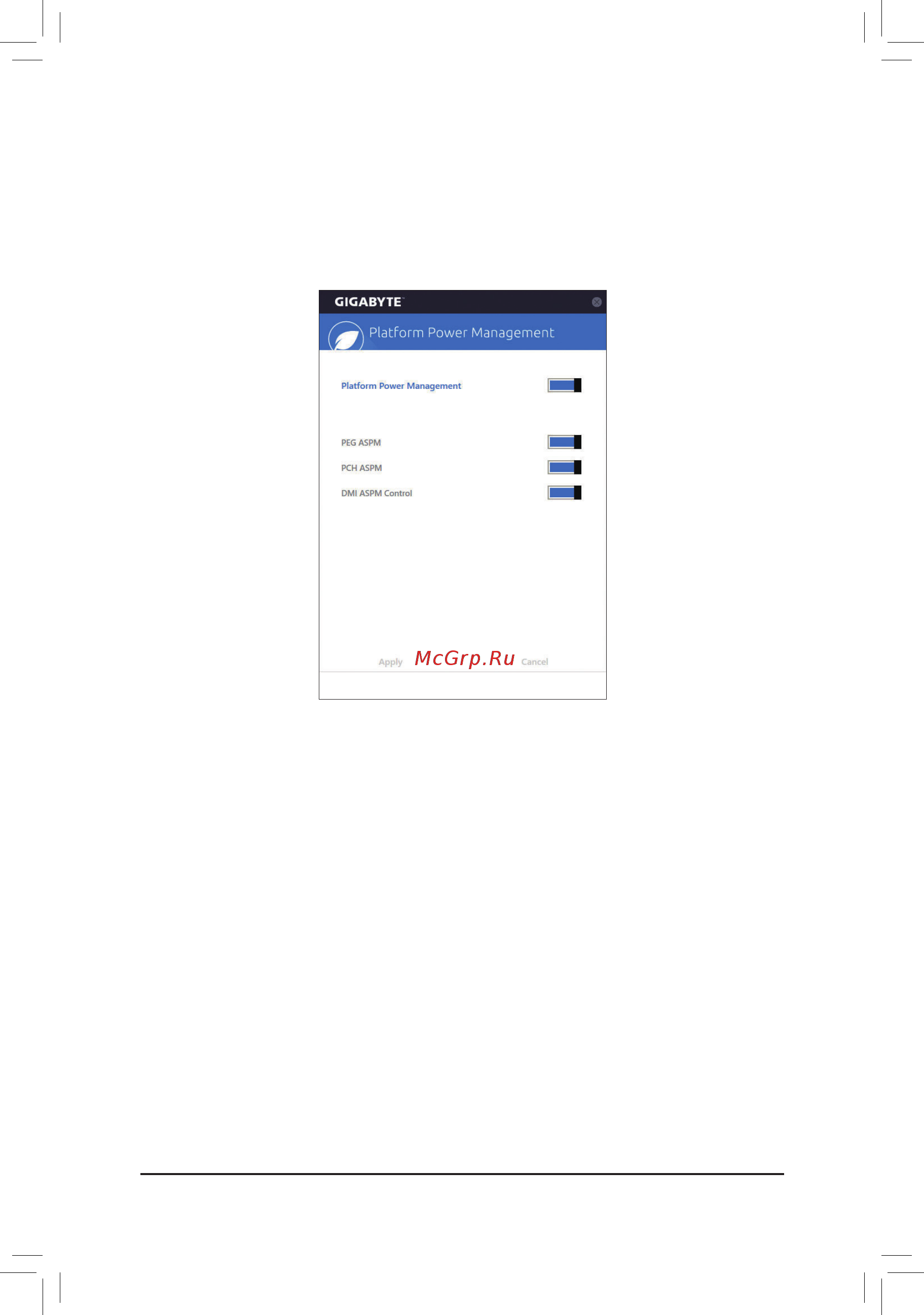

The Platform Power Management Interface

Using Platform Power Management:

• Platform Power Management:

 EnablesordisablestheActiveStatePowerManagementfunction(ASPM).

• PEG ASPM:

 AllowsyoutoconguretheASPMmodeforthedeviceconnectedtotheCPUPEGbus.

• PCH ASPM:

 AllowsyoutoconguretheASPMmodeforthedeviceconnectedtoChipset'sPCIExpressbus.

• DMI ASPM Control:

 AllowsyoutoconguretheASPMmodeforbothCPUsideandChipsetsideoftheDMIlink.
