Gigabyte GA-Z270X-Gaming 7 [52/136] Cpu vcore cpu vccsa cpu vccio ddrvtt a b dram channel a b voltage ddrvpp

BIOS Setup

- 52 -

` CPU Core Voltage Control

This section provides CPU voltage control options.

` Chipset Voltage Control

This section provides Chipset voltage control options.

` DRAM Voltage Control

This section provides memory voltage control options.

` PC Health Status

& Reset Case Open Status

Disabled Keepsorclearstherecordofpreviouschassisintrusionstatus.(Default)

Enabled Clears the record of previous chassis intrusion status and the Case Openeldwillshow

"No" at next boot.

& Case Open

Displays the detection status of the chassis intrusion detection device attached to the motherboard CI

header.Ifthesystemchassiscoverisremoved,thiseldwillshow"Yes",otherwiseitwillshow"No".To

clear the chassis intrusion status record, set Reset Case Open Status to Enabled, save the settings to

the CMOS, and then restart your system.

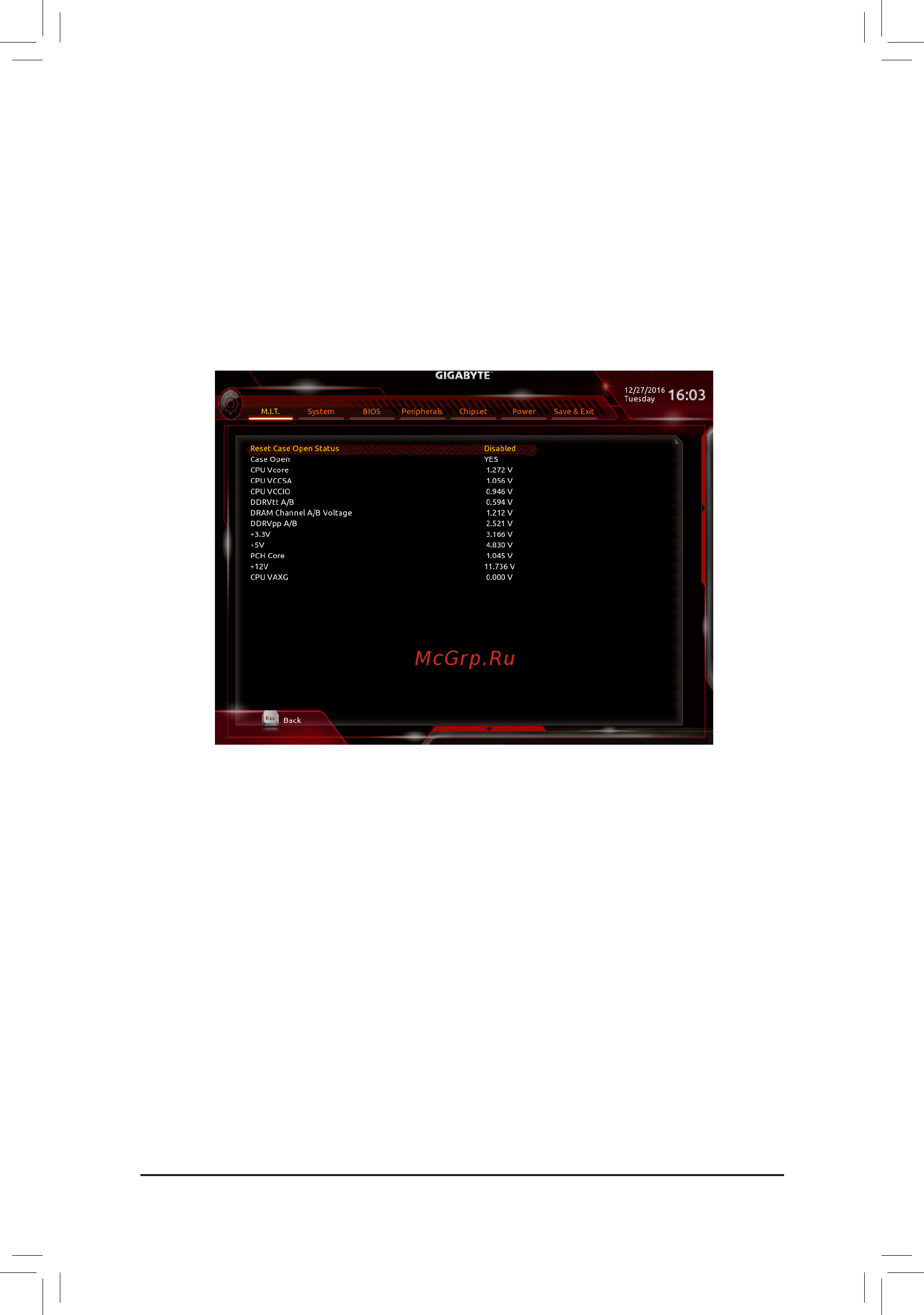

& CPU Vcore/CPU VCCSA/CPU VCCIO/DDRVtt A/B/DRAM Channel A/B Voltage/DDRVpp

A/B/+3.3V/+5V/PCH Core/+12V/CPU VAXG

Displays the current system voltages.
