Gigabyte GA-Z270X-Gaming 7 [71/136] C 2 uefiraidconfiguration

- 71 -

Conguring a RAID Set

C-2.UEFIRAIDConguration

OnlyWindows10/8.164-bitsupportsUEFIRAIDconguration.

Step 1:

In BIOS Setup, go to BIOS Features and set Windows 8/10 Features to Windows 8/10 and CSM Support to

Disabled(Figure6).SavethechangesandexitBIOSSetup.

Step 2:

After the system reboot, enter BIOS Setup again. Then enter the Peripherals\Intel(R) Rapid Storage Technology

sub-menu(Figure7).

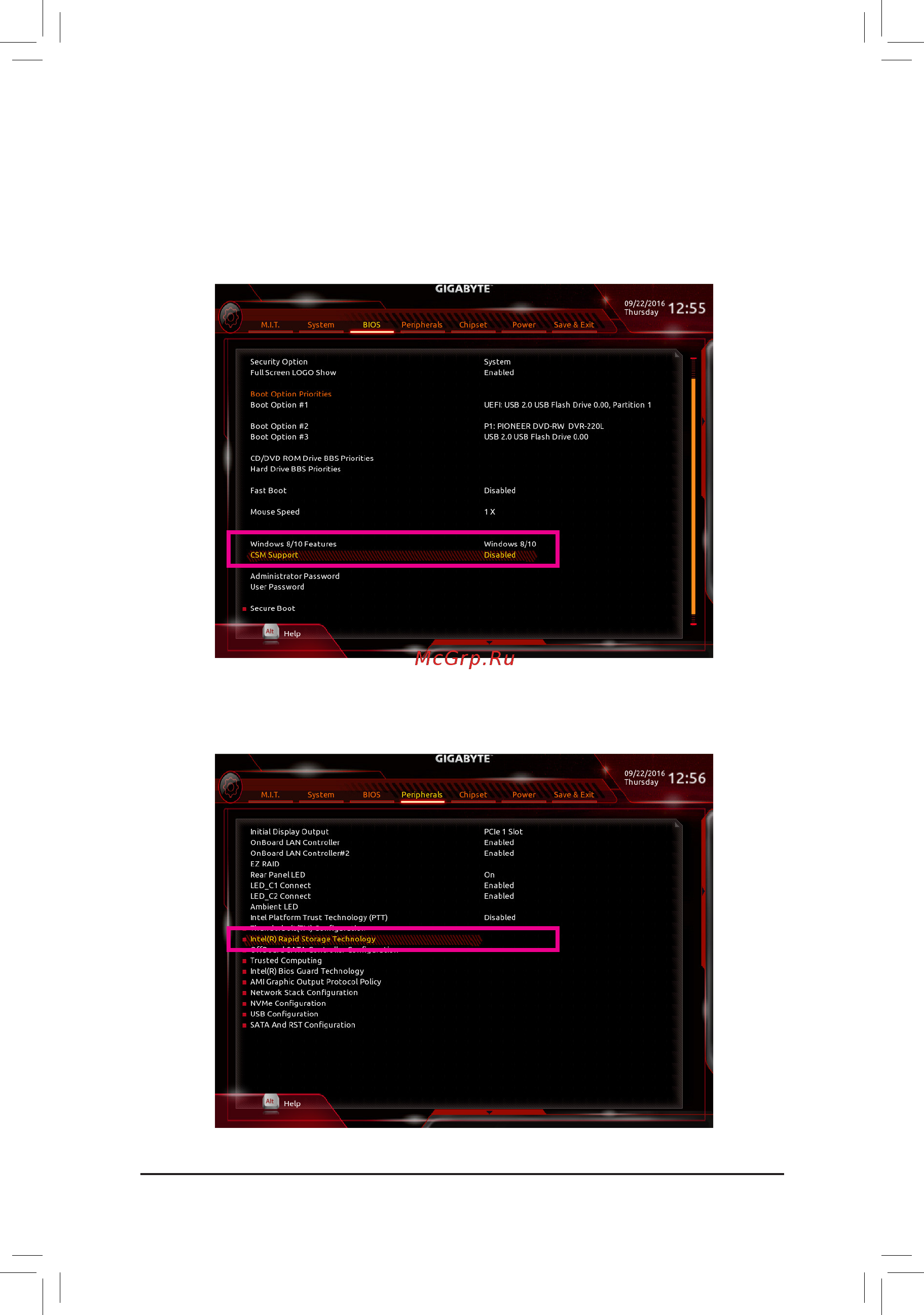

Figure 6

Figure 7
