Gigabyte GA-Z270X-Gaming 7 [44/136] B easy mode

BIOS Setup

- 44 -

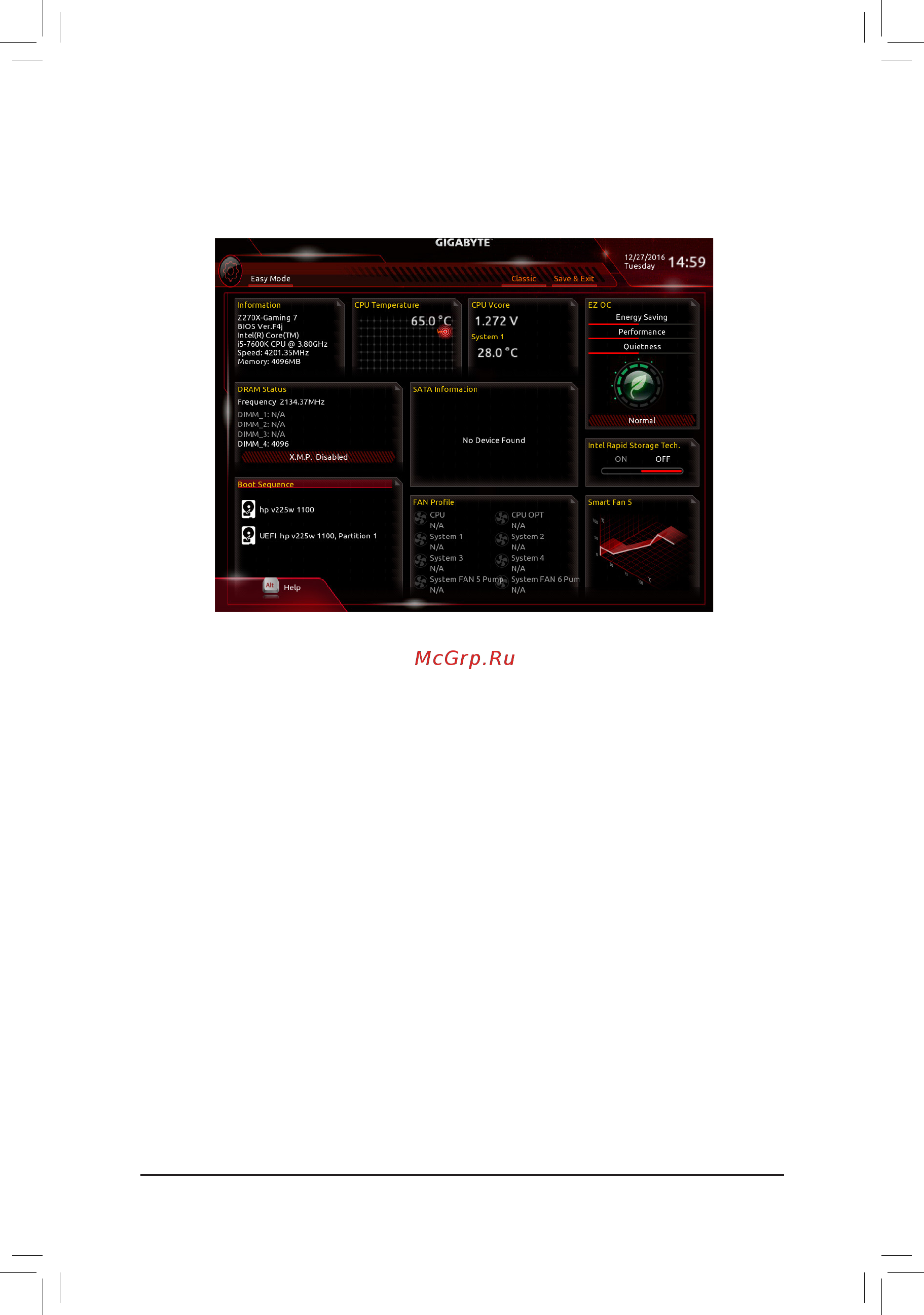

B. Easy Mode

Easy Mode allows users to quickly view their current system information or to make adjustments for optimum

performance.InEasyMode,youcanuseyourmousetomovethroughcongurationitemsorpress<F2>to

switch to the Classic Setup screen.
