- 27 -
Hardware Installation
1-10 Internal Connectors
Readthefollowingguidelinesbeforeconnectingexternaldevices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
2
417814
1

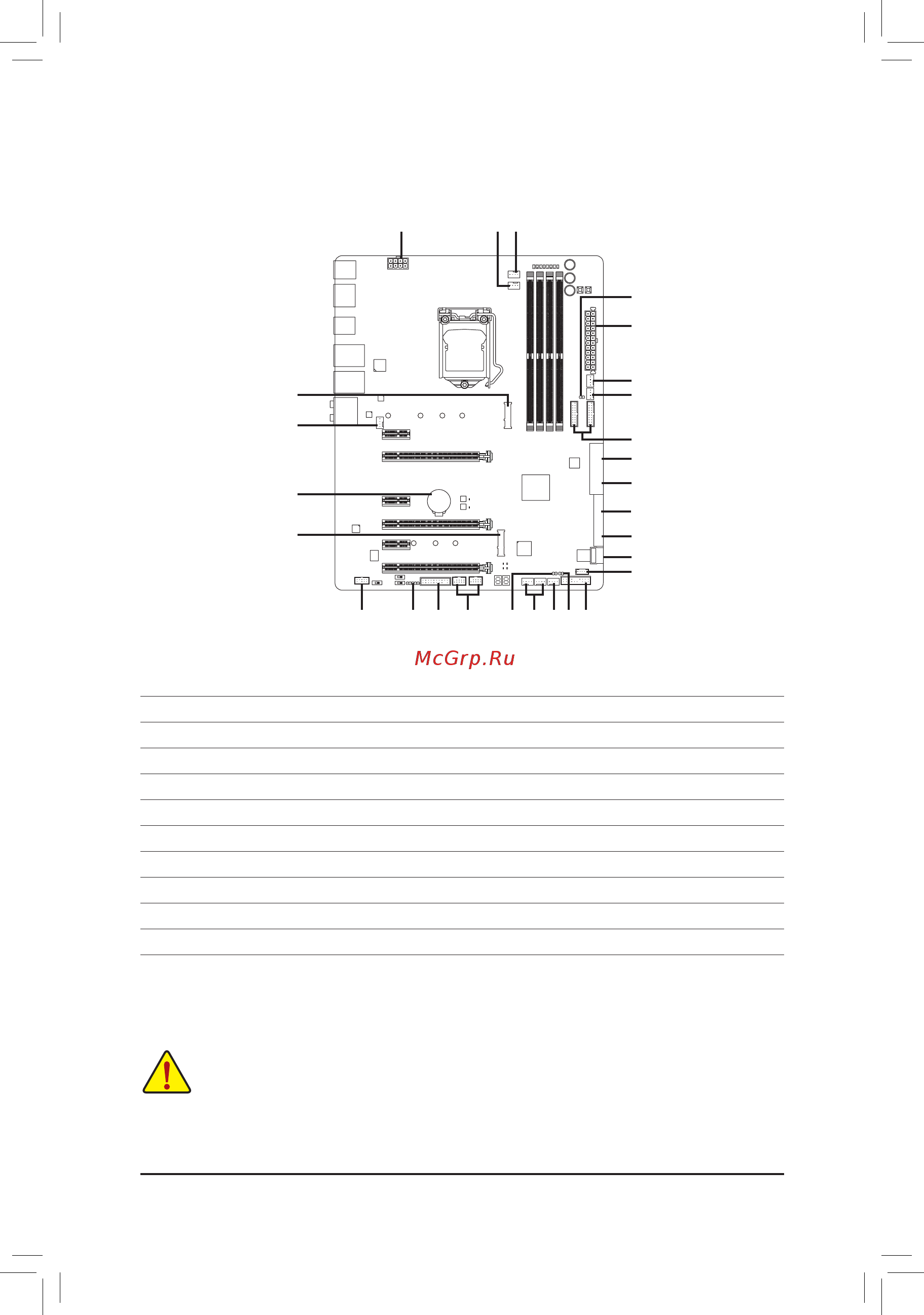

1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/2/3/4
5) CPU_OPT
6) SYS_FAN5_PUMP/SYS_FAN6_PUMP
7) EC_TEMP1/EC_TEMP2
8) LED_C
9) SATA EXPRESS
10) SATA3 0/1/2/3/4/5
11) U2_32G
12) M2M_32G/M2P_32G
13) F_PANEL
14)
F_AUDIO
15) F_USB30_1/F_USB30_2
16) F_USB1/F_USB2
17) TPM
18) THB_C
19) BAT
20) CLR_CMOS
13
3
15
12
16
5
11
18
4
6
10
9
12
4
7
67
9
10
19
20
