10 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●

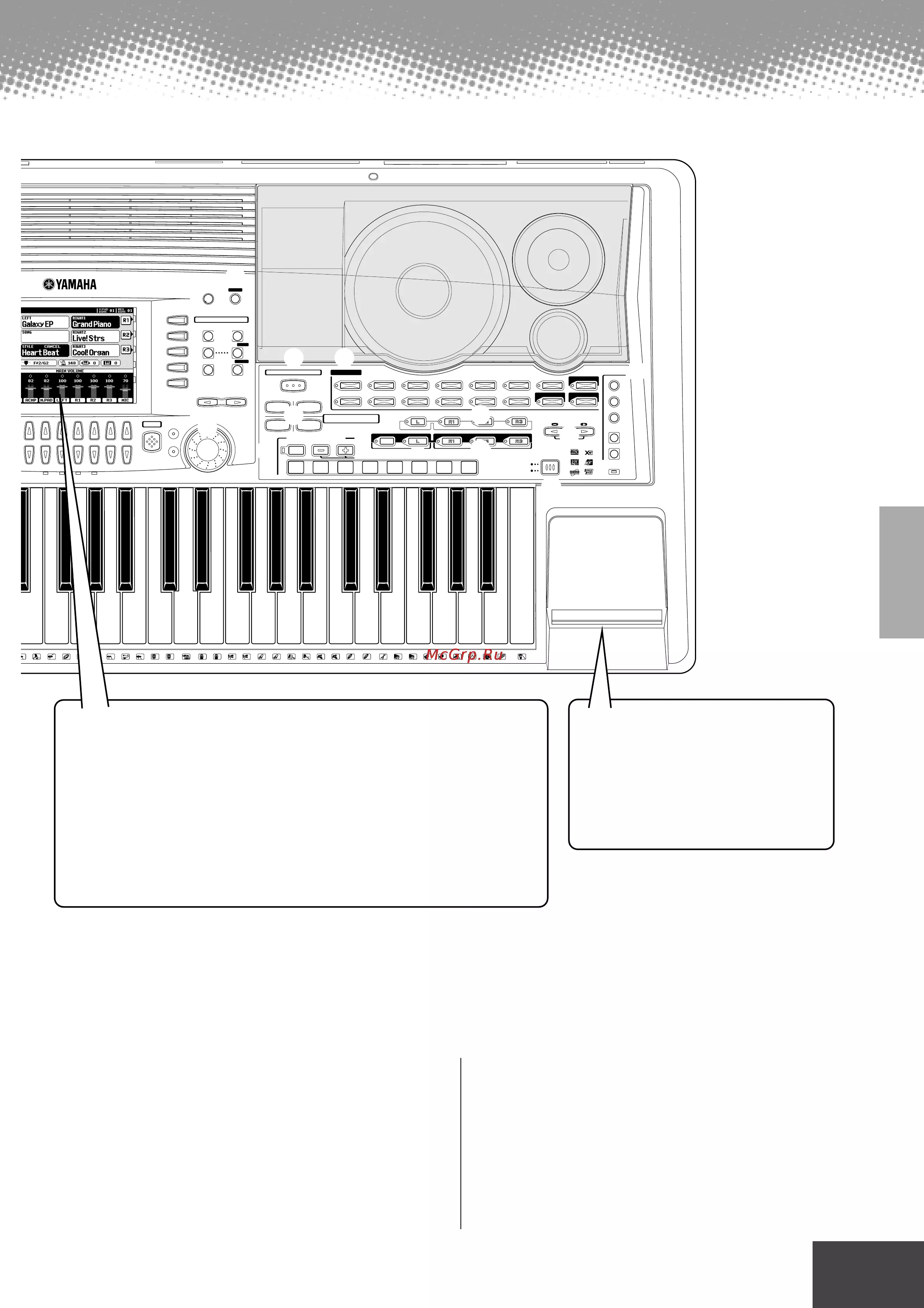

Top Panel & Connections
q POWER ON/OFF switch.................................... 14
w MASTER VOLUME control.............................. 14
e PITCH BEND wheel.......................................... 54
r MODULATION wheel....................................... 54
t SONG buttons .............................................. 30, 66
y STYLE buttons................................................... 20
u ACCOMPANIMENT CONTROL buttons .........20
i MENU buttons..................................127, 134, 150
o KEYBOARD TRANSPOSE buttons..................55
!0
DIGITAL STUDIO buttons
...36, 40, 72, 88, 104, 119
!1 MULTI PAD buttons............................. 34, 65, 119
KEYBOARD TRANSPOSE
FLASH STYLEPRESET STYLE
AUTO
ACCOMPANIMENT
SONG FILE DIRECTORY
MASTER VOLUME
SONG
PLAYER
ACCOMPANIMENT
CONTROL
FADEIN
/
OUT
SYNC STOP SYNC START
START
/
STOPFILL IN & BREAKMAIN VARIATION
ENDING
/
rit.TAP TEMPOINTRO
RESET
16 BEAT
8 BEAT
R & B
SWING & JAZZ LATIN
BALLROOM
MARCH & WALTZ
& STYLE MANAGER
DANCE
ABCD
TAP
COUNTRY
STYLE
SONG
DIGITAL STUDIO
DISK
/
SCSI
MIDI
MAIN
MIXER
PART
ON
/
OFF
PART
STOP
FUNCTION
MENU
MULTIPAD
SONG SETUP
DISKDIRECT
12
34
POWER
ON OFF
MIN MAX
PART
SOUND CREATOR
SAMPLING
CUSTOM VOICE
DIRECT
ACCESS
DIGITAL RECORDING
SONG
STYLE
MULTI PAD
MIXING CONSOLE
EFFECTS
FILTER
/
EQ
TUNING
M.PAD BANK 1
~
60
BANK VIEW
1
MODULATION
MIC
/
LINE IN
INPUT VOLUME
MIC
/
LINE INPHONES
PITCH BEND
UP
DOWN
MAX
MAX
OVER
SIGNAL
MIC1
MIC2
LINE
MIN
MIN
A
B
C
D
E
CLICK
T S R L M HL M H L H L H
M
L
M
H
C
1
q
t y
i
!0
!1
o
u
e r
w
PHONES MIC/LINE IN
Keyboard... page 137
The keyboard of the PSR-9000 is
equipped with a touch response feature
(initial touch and after touch) that lets
you dynamically and expressively con-
trol the level of the voices with your
playing strength — just as on an acous-
tic instrument.

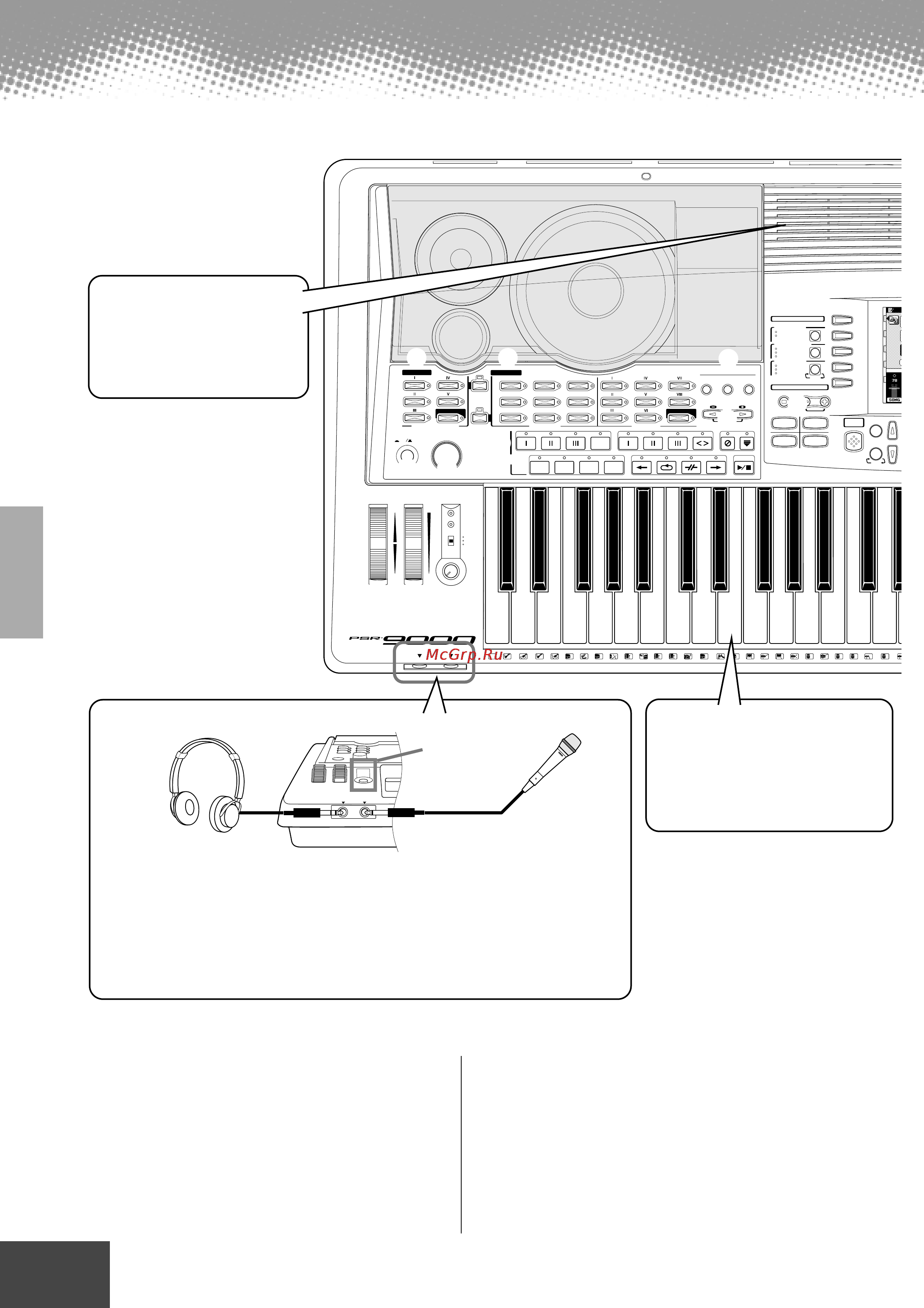

PHONES jack
A standard pair of stereo headphones can be
plugged in here for private practice or late-
night playing. The internal stereo speaker
system is automatically shut off when a pair
of headphones is plugged into the PHONES
jack.
MIC/LINE IN jack
The PSR-9000 includes a microphone/line
input jack into which just about any standard
microphone or line-level source with a 1/4"
phone plug can be plugged (a dynamic
microphone with an impedance of 250 ohms
is recommended). The microphone or line
input can be used with the PSR-9000’s vocal
harmony function.
INPUT VOLUME
control
Air vent
Do not place objects on the
instrument’s air vent, since this
may prevent adequate ventilation
of the internal components, and
possibly result in the instrument
overheating.
