Chapter 1: Product Introduction

Chapter 1

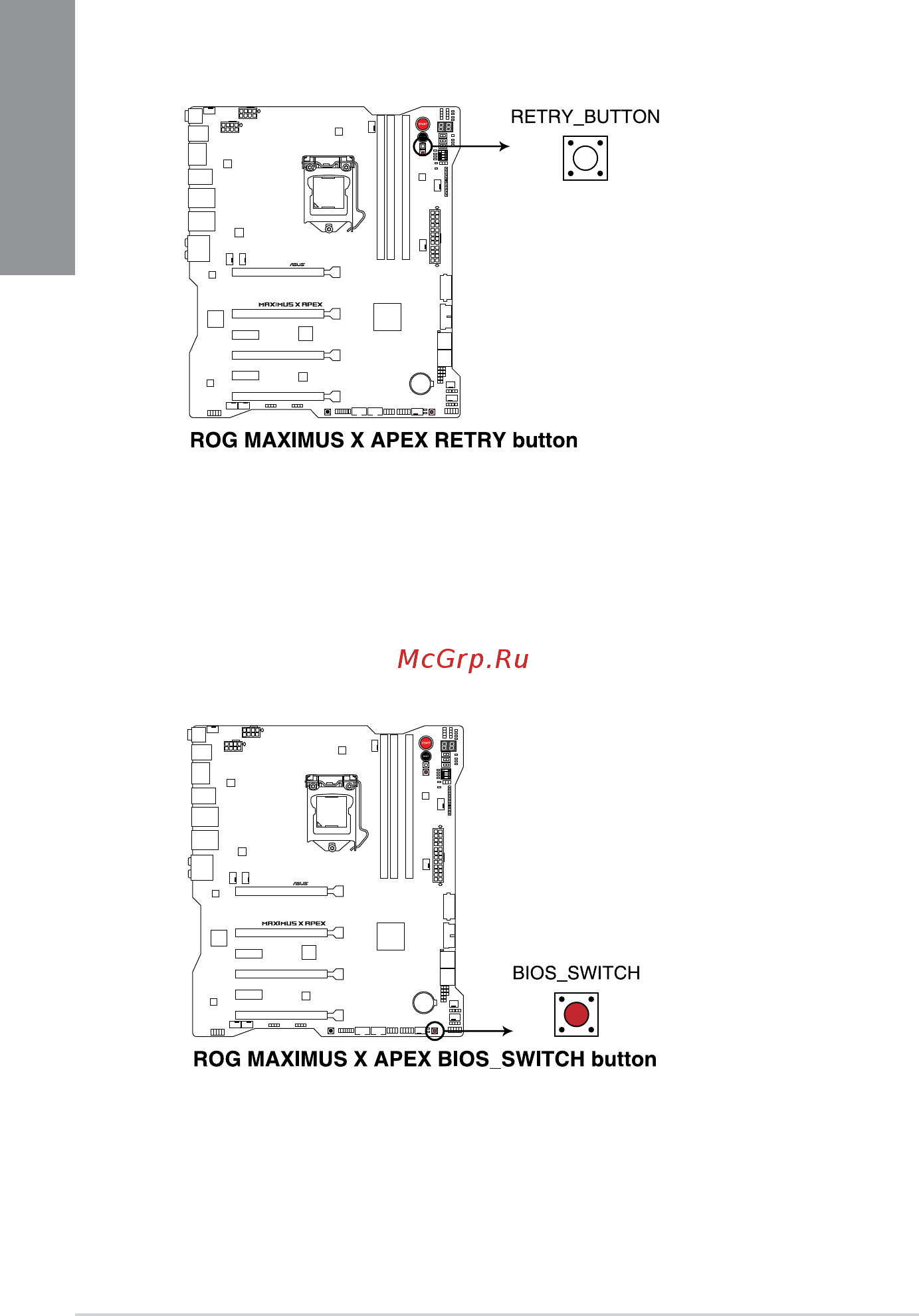

7. BIOS Switch button (BIOS_SWITCH)

ThemotherboardcomeswithtwoBIOSchips.PresstheBIOSbuttontoswitchBIOS

andloaddifferentBIOSsettings.ThenearbyBIOS_LEDsindicatethecurrently

selectedBIOS.

6. ReTry button (RETRY_BUTTON)

TheReTrybuttonisspeciallydesignedforoverclockersandismostusefulduringthe

bootingprocesswheretheResetbuttonisrendereduseless.Whenpressed,itforces

thesystemtorebootwhileretainingthesamesettingstoberetriedinquicksuccession

toachieveasuccessfulPOST.
