1-20
Chapter 1: Product Introduction
Chapter 1

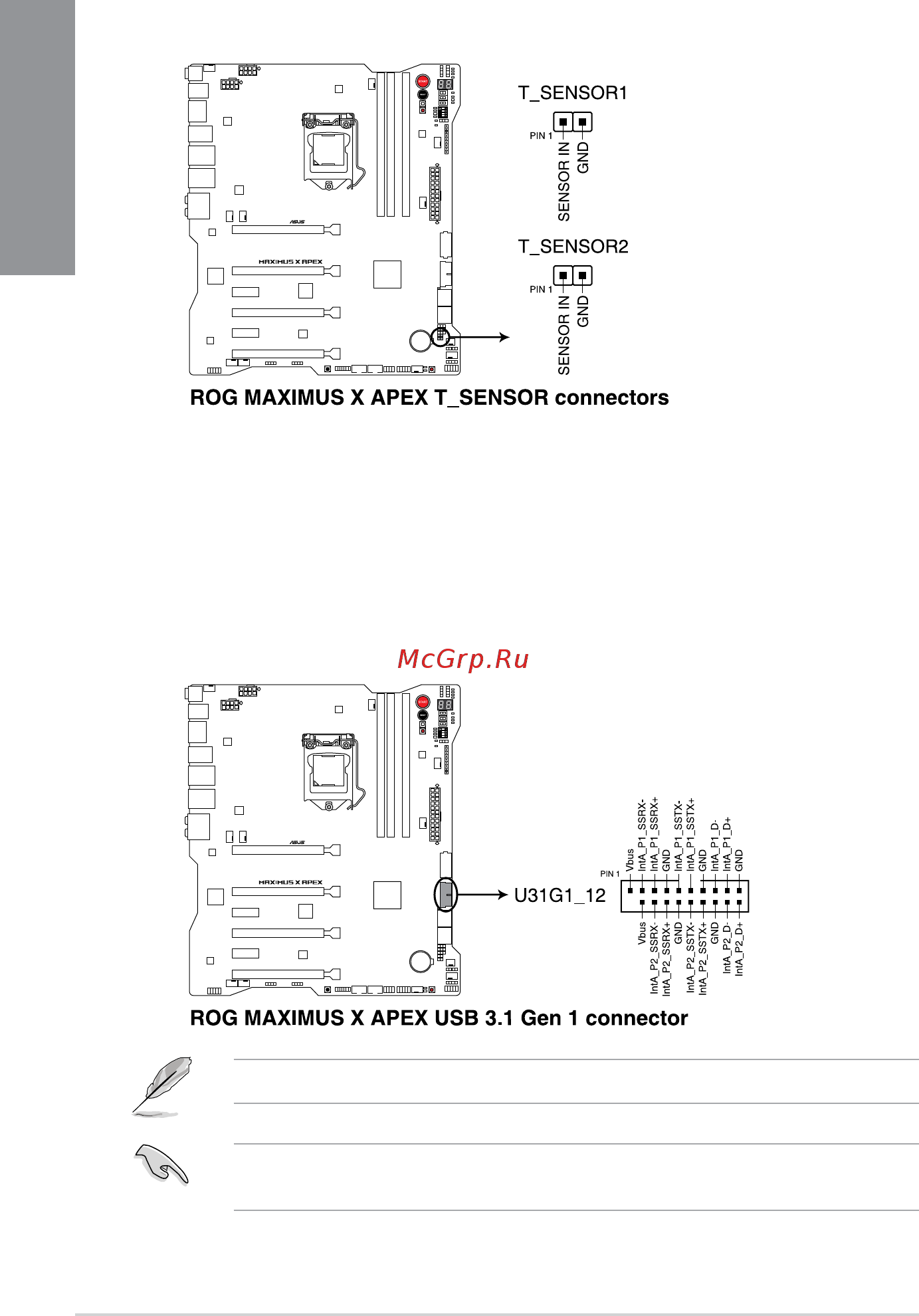

3. USB 3.1 Gen 1 connector (20-1 pin U3G1_12)
ThisconnectorallowsyoutoconnectaUSB3.1Gen1moduleforadditionalUSB
3.1Gen1frontorrearpanelports.WithaninstalledUSB3.1Gen1module,youcan
enjoyallthebenetsofUSB3.1Gen1includingfasterdatatransferspeedsofupto
5Gbps,fasterchargingtimeforUSB-chargeabledevices,optimizedpowerefciency,
andbackwardcompatibilitywithUSB2.0.
TheUSB3.1Gen1moduleispurchasedseparately.
ThepluggedUSB3.1Gen1devicemayrunonxHCIorEHCImodedependingonthe
operatingsystem’ssetting.
2. Thermal sensor connectors (2-pin T_SENSOR1-2)
Thisconnectorisforthethermistorcablethatallowsyoutomonitorthetemperatureof
yourmotherboard’scriticalcomponentsandconnecteddevices.
