ROG MAXIMUS X APEX
1-17
Chapter 1

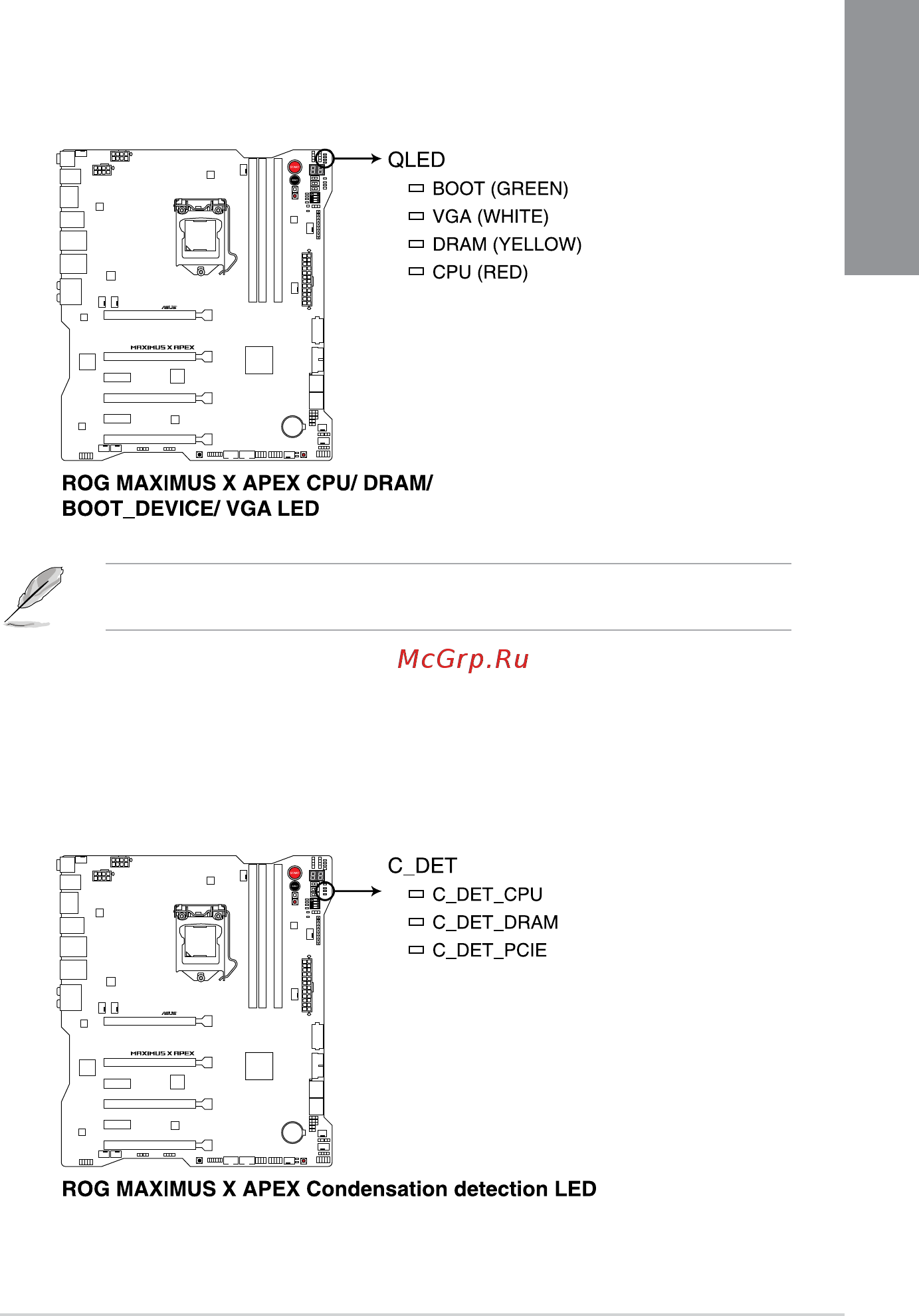

1.1.8 Onboard LEDs
1. Q LED (CPU, DRAM, VGA, BOOT)
QLEDcheckskeycomponents(CPU,DRAM,VGAcard,andbootingdevices)in
sequenceduringmotherboardbootingprocess.Ifanerrorisfound,thecorresponding
LEDremainslituntiltheproblemissolved.Thisuser-friendlydesignprovidesan
intuitivewaytolocatetherootproblemwithinseconds.
2. Condensation detection LEDs
TheseLEDswilllightupwhenwatercondensationisdetectedonthecorresponding
criticalkeycomponents(CPU,DRAM,andPCIE).Thisuser-friendlydesignhelpsyou
quicklyidentifypossibledamagescausedbycondensation.
TheQLEDsprovidethemostprobablecauseofanerrorcodeasastartingpointfor
troubleshooting.Theactualcausemayvaryfromcasetocase.
