1-24
Chapter 1: Product Introduction
Chapter 1
• TheOCPanelI/IIandFrontBasearepurchasedseparately.
• SupportforOCPanelI/IIandFrontBasevariesoverdifferentplatforms.
• Visitwww.asus.comformoreinformationaboutthedevicesandthelatestcompatibility
list.

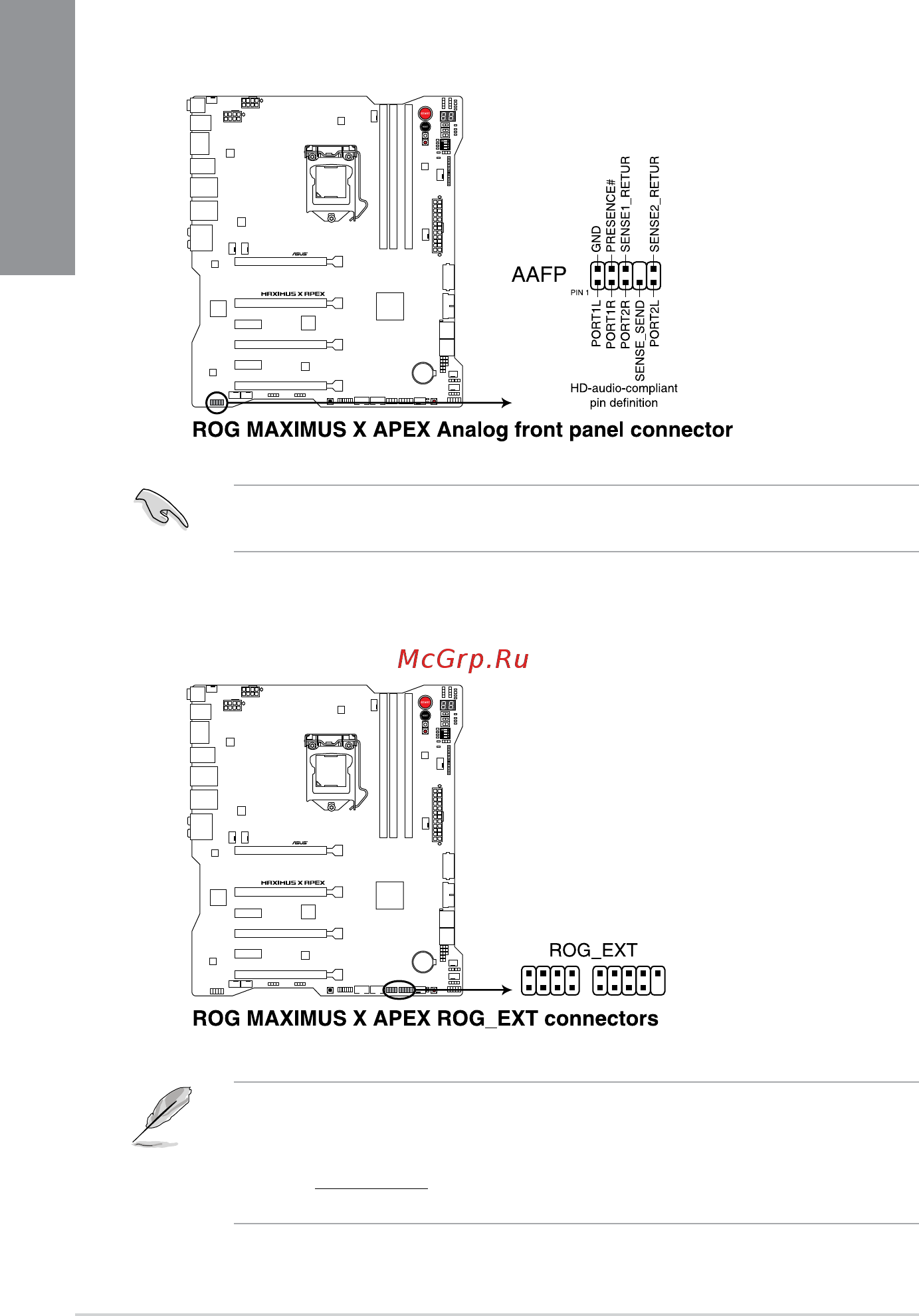

7. ROG extension connector (18-1 pin ROG_EXT)
ThisconnectorisfortheOCPanelI/IIandFrontBase.
6. Front panel audio connector (10-1 pin AAFP)
Thisconnectorisforachassis-mountedfrontpanelaudioI/Omodulethatsupports
HDAudiostandard.ConnectoneendofthefrontpanelaudioI/Omodulecabletothis
connector.
Werecommendthatyouconnectahigh-denitionfrontpanelaudiomoduletothis
connectortoavailofthemotherboard’shigh-denitionaudiocapability.
