Asus ROG MAXIMUS X APEX [54/114] Chapter 2

2-8

Chapter 2: Basic Installation

Chapter 2

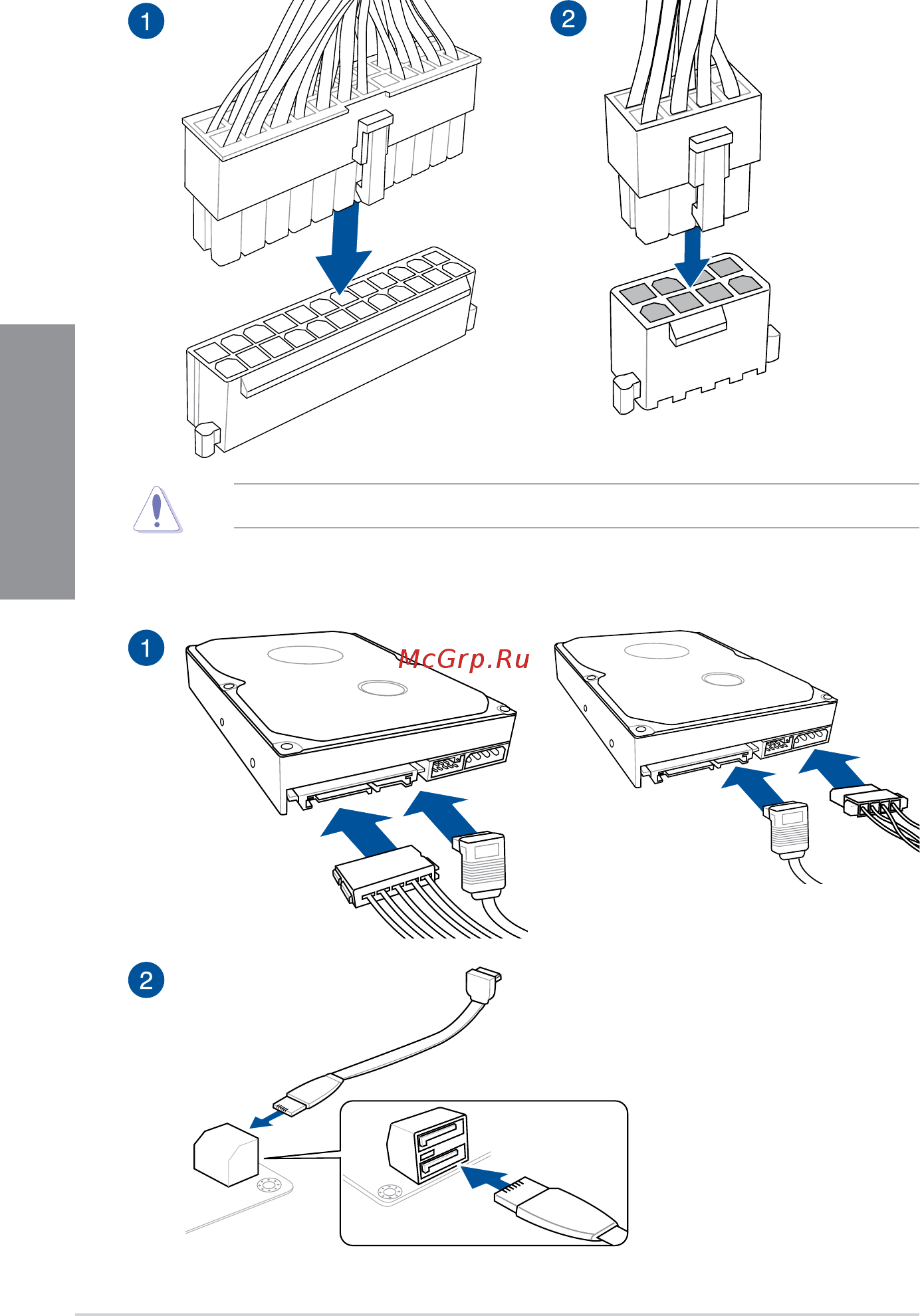

2.1.5 ATX power connection

Ensure to connect the 8-pin power plug.

2.1.6 SATA device connection
