Asus ROG MAXIMUS X APEX [31/114] Chapter 1

ROG MAXIMUS X APEX

1-15

Chapter 1

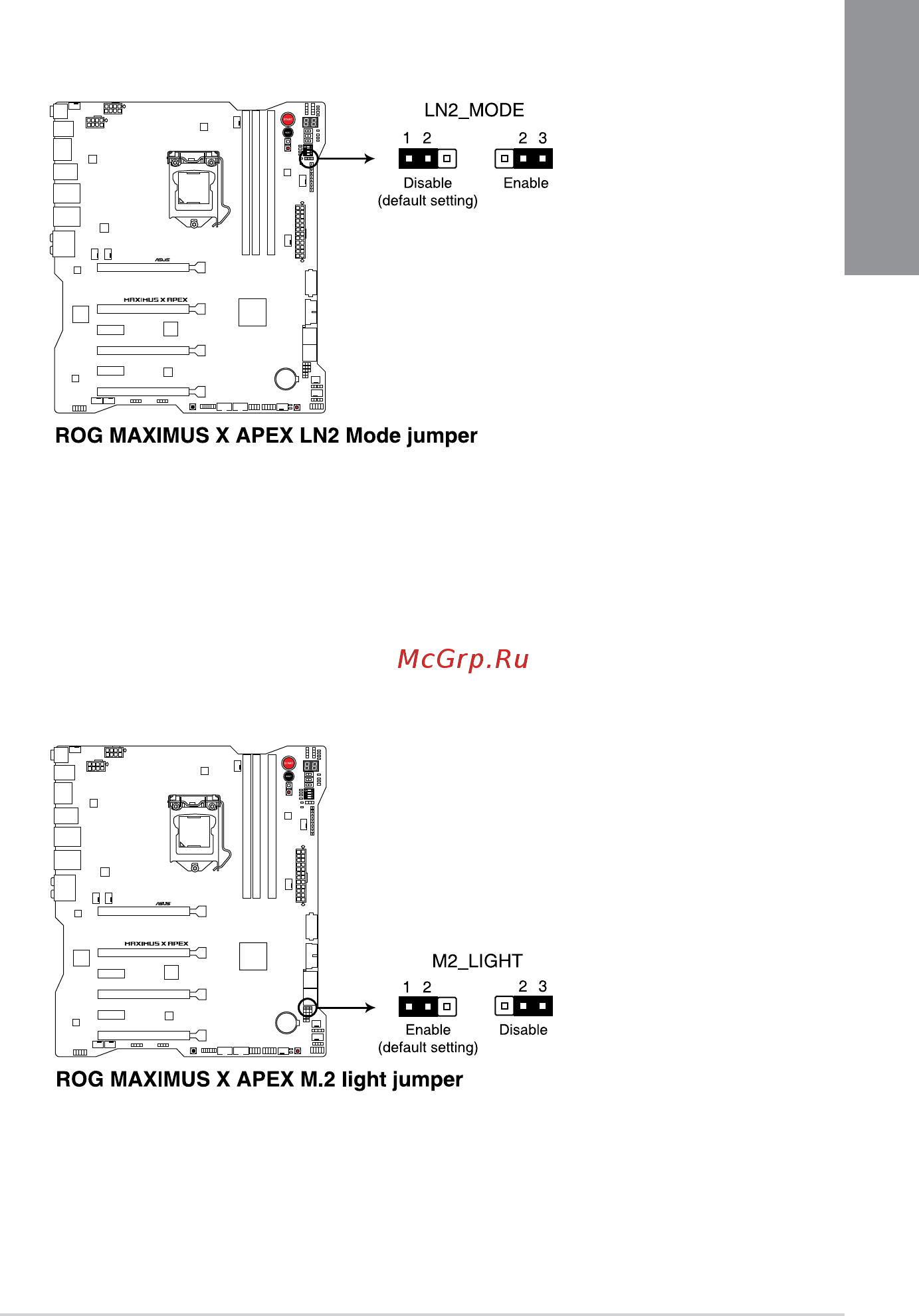

1.1.7 Jumper

1. LN2 Mode jumper (3-pin LN2_MODE)

WithLN2modeactivated,theROGmotherboardisoptimizedtoremedythecold-boot

bugduringPOSTandhelpthesystembootsuccessfully.

2. M.2 light jumper (3-pin M.2_LIGHT)

ThisjumperallowyoutoenableanddisabletheM.2light.
