Asus PRIME X399-A [66/96] Ez tuning wizard

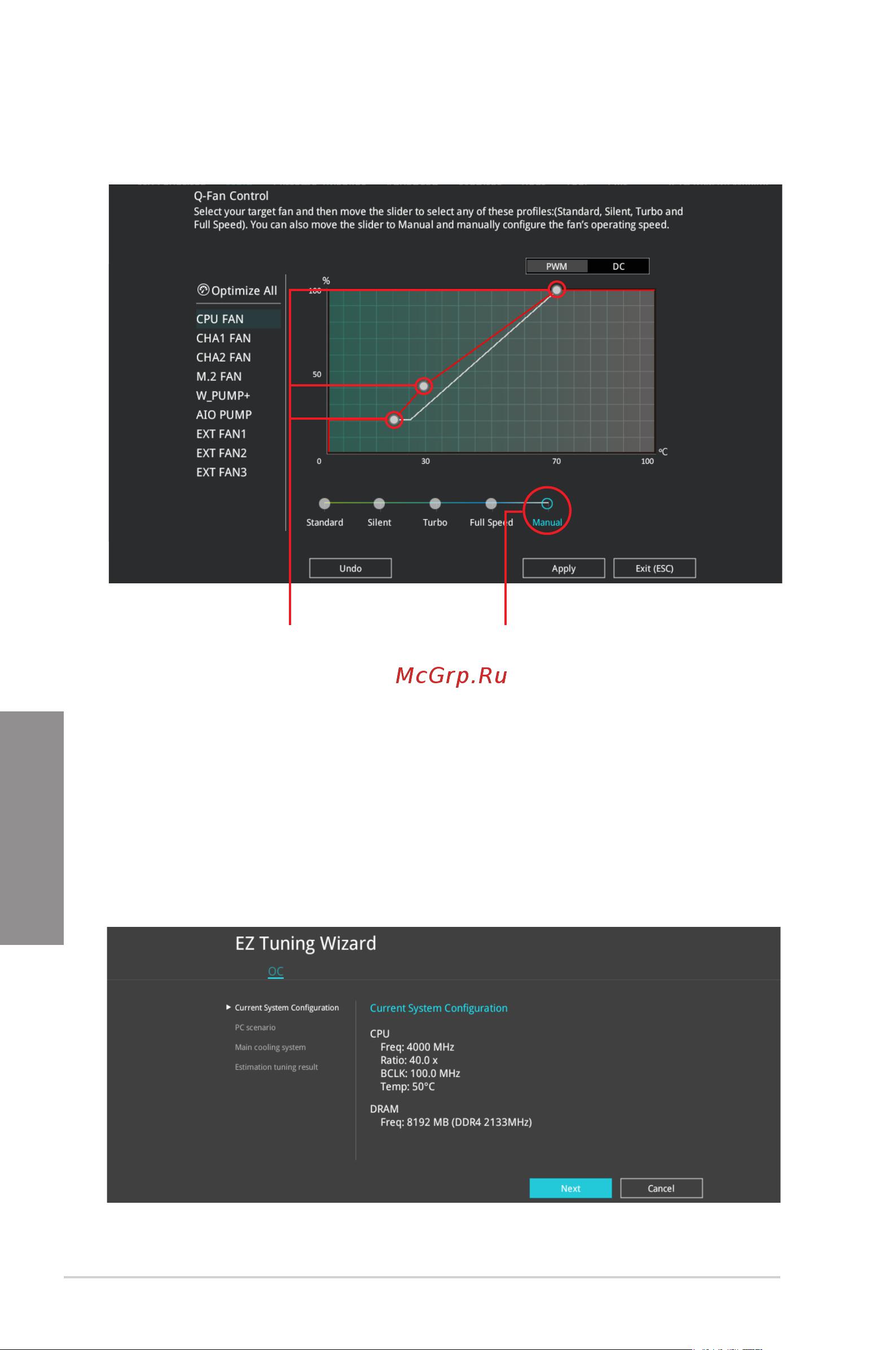

![Asus PRIME X399-A [66/96] Ez tuning wizard](/views2/1307908/page66/bg42.png)
3-8
Chapter 3: BIOS Setup
Chapter 3
Speed points
Select to manually
congure your fans
Conguring fans manually
Select Manual from the list of proles to manually congure your fans’ operating speed.
To congure your fans:
1. Select the fan that you want to congure and to view its current status.
2. Click and drag the speed points to adjust the fans’ operating speed.
3. Click Apply to save the changes then click Exit (ESC).
3.2.4 EZ Tuning Wizard
EZ Tuning Wizard allows you to easily overclock your CPU and DRAM, computer usage, and
CPU fan to their best settings.
