ASUS PRIME X399-A
1-7
Chapter 1

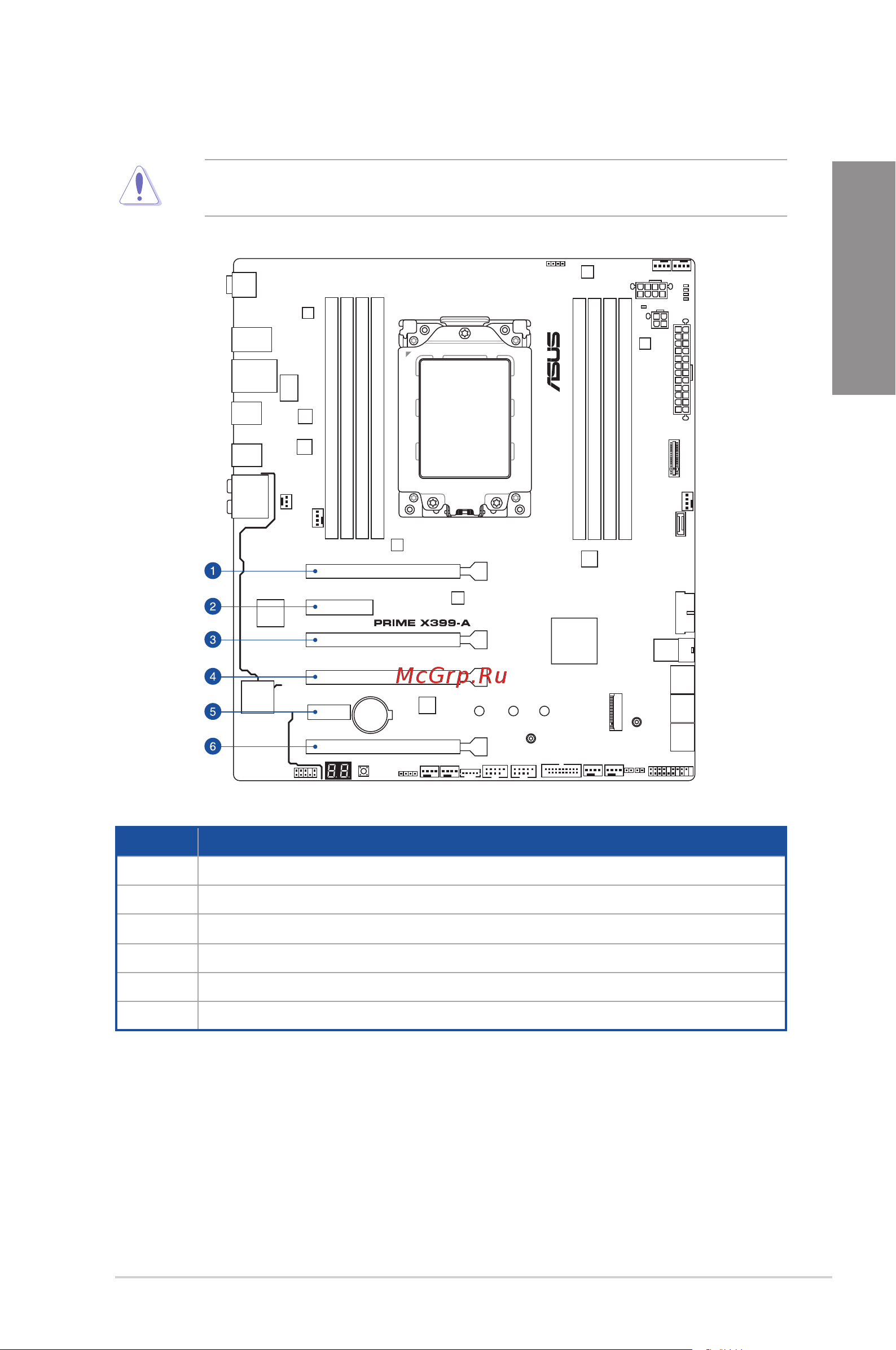

1.1.5 Expansion slots
Unplugthepowercordbeforeaddingorremovingexpansioncards.Failuretodosomay
causeyouphysicalinjuryanddamagemotherboardcomponents.
PCIEX16_1
PCIEX4
PCIEX16_2
PCIEX16_3
PCIEX16_4
PCIEX1
Slot No. Slot Description
1 PCIe3.0/2.0x16_1slot
2 PCIe2.0x4slot
3 PCIe3.0/2.0x16_2slot
4 PCIe3.0/2.0x16_3slot
5 PCIe2.0x1slot
6 PCIe3.0/2.0x16_4slot
