ASUS PPRIME X399-A
4-3
Chapter 4
CreatingaRAIDset
To create a RAID set:

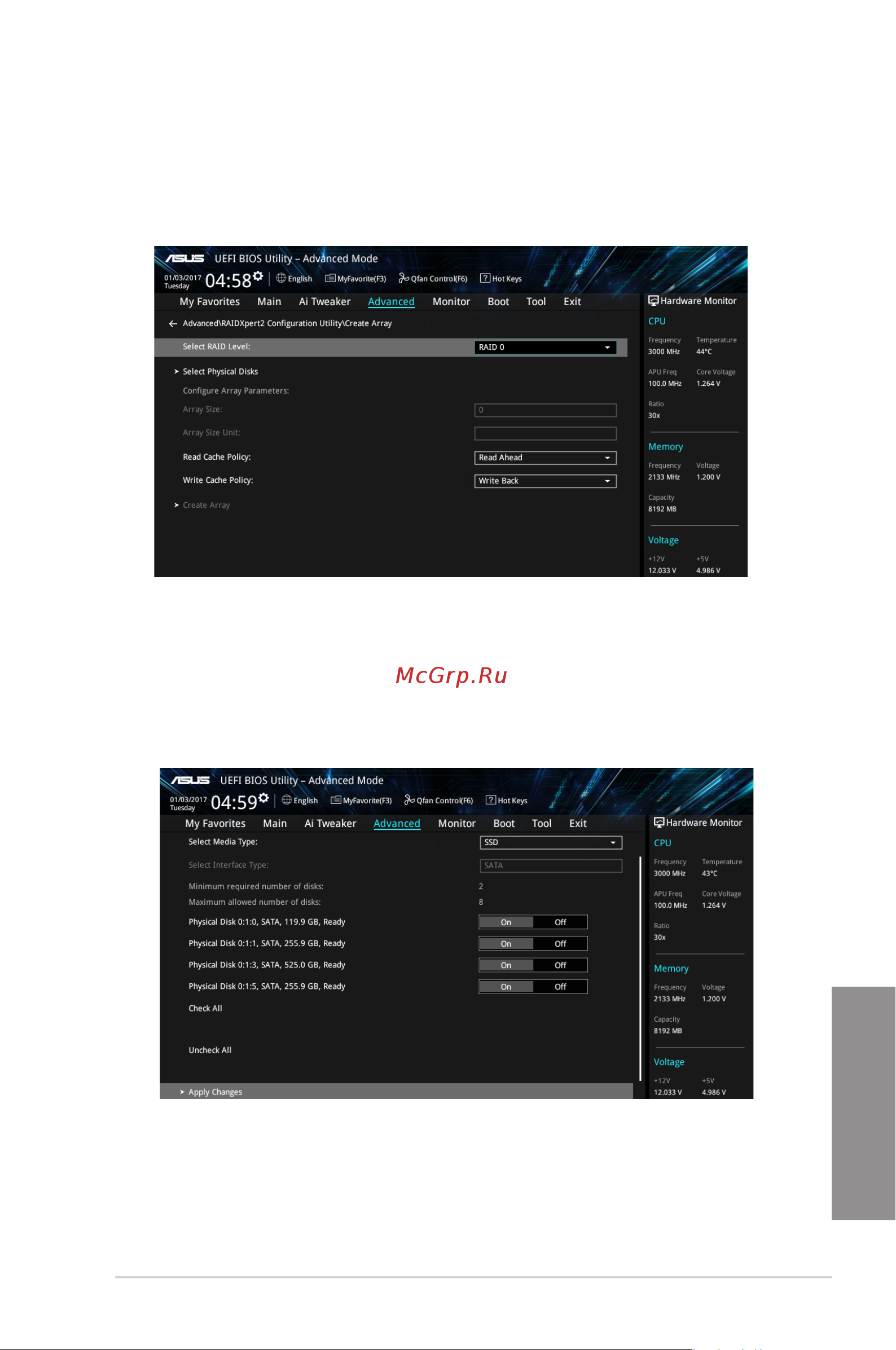

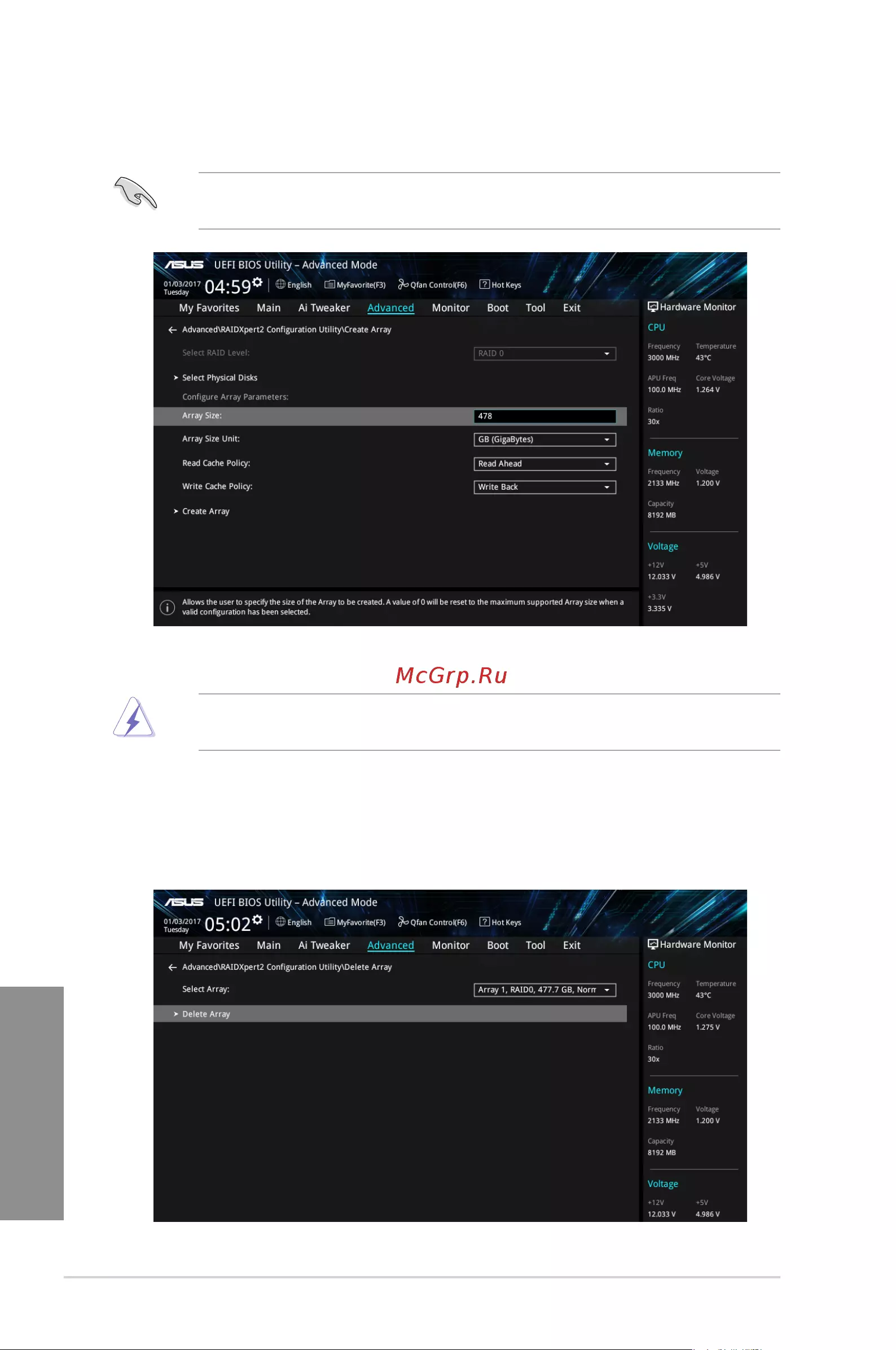

1. From the RaidXpert2 Conguration Utility menu, go to ArrayManagement > Create
Array to enter the Create Array menu. The following screen appears:
2. When the RAID Level item is selected, press <Enter> to select the RAID level to
create, and then press <Enter>.
3. Under Select Physical Disks, press <Enter>. The following screen appears.
You can select SATA, SSD or both. Turn ON the disks you want to include in the RAID
set and select ApplyChanges, then press <Enter>.
