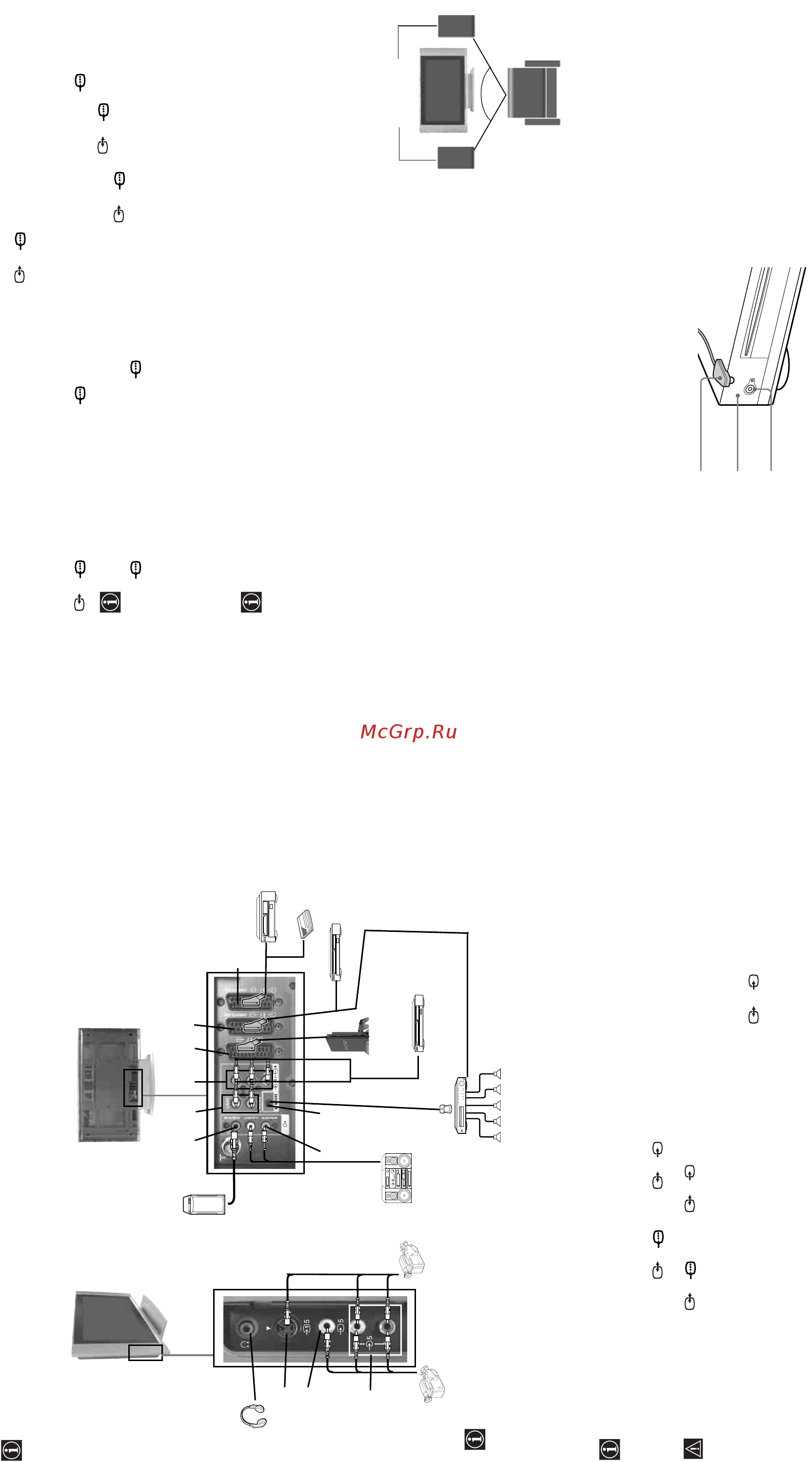

Connecting Equipment to the TV
• Using the following instructions you can connect a wide range of optional equipment to your TV set.
• Connecting cables are not supplied.
Connecting a VCR
To connect a VCR, please refer to the section “Connecting the aerial and VCR” of this instruction manual on page 14.
Connecting a VCR or a DVD recorder that supports SmartLink
SmartLink is a direct link between the TV set and a SmartLink compatible VCR/DVD recorder. For more
information on SmartLink, please refer to the instruction manual of your SmartLink VCR/DVD recorder.
If you use a VCR or a DVD recorder that supports SmartLink, please connect the VCR or the DVD recorder to the
TV using a Scart lead to the Scart 2/ J or 3/ K.
Both Scart connectors 2/ J and 3/ K cannot support SmartLink at the same time. If you
connect a VCR or a DVD recorder to both Scart connectors, select which Scart supports SmartLink through
the “SmartLink” option in the “Features” menu. For details see page 23.
If you have connected a decoder or a Set Top Box to the Scart 3/
K
or through a
VCR connected to this Scart
Select the “Manual Programme Preset” option in the “Set Up” menu and after entering in the “Decoder**” option,
select “On” (refer to page 29). Repeat this option for each scrambled signal.
**This option is only available depending on the country you have selected in the “Country” menu.
(MONO)
L/G/S/I
R/D/D/D
To avoid snowy picture, do not
connect external equipment to
connectors A and B at the
same time.
8mm/Hi8/
DVC
camcorder
S VHS/Hi8/
DVC
camcorder
A
B
C
K
DVD
J
Hi-fi
DVD recorder with
component signal format
I
D
G
H
E
Compact AV
System/Amplifier
VCR
Decoder
P
l
a
y
S
t
a
t
i
o
n
2
“PlayStation”*
Sub woofer
F
S
S
S
continued...
Connecting a DVD or DVD recorder
Connect the DVD or the DVD recorder to the Scart connector
2/
J.
Connecting a DVD recorder with 576p signal format
Some DVD recorder may have 576p signal format. In this case, connect the DVD recorder to the Scart connector
2/
J, to the audio input jacks 4 G and to the video component jacks Y, P
B
/C
B
, P
R
/C
R
4 H.
Using this connection, the TV will record from the AV 2 input ( Scart connector
2/
J).
To watch the input signal, you can chose from AV 2 (Scart connector
2/
J) or AV 4 (audio input jacks
4 G and video component jacks 4 H). To watch the best picture we recommend you select AV 4 .
Connecting Audio Equipment to the TV
To listen to the sound from TV on Hi-fi equipment.
Connect your audio equipment to the audio output sockets E if you wish to amplify the audio output from the TV.
Next, using the menu system, select the “Sound Adjustment” menu and set the “TV Speakers” to "Off" (see page 21).
• To control the external speakers using this remote control, set “Audio Output” option to “Variable” in
the “Sound Adjustment” menu (see page 21).
• The volume of the external speakers can be altered by pressing the volume buttons on the TV remote control.
The treble and bass setting can also be altered through the “Sound Adjustment” menu (see page 20).
For a sub woofer
Connect your sub woofer to the 5 W/G/W/G output jack D using a monaural audio cable.
To enjoy “Dolby Virtual” sound effect through your
audio equipment
Place the speakers of your equipment in front of your listening position and
beside the TV set.
Then by using the menu system, select the menu “Sound Adjustment”. Next
set the option "Audio Output" to "Variable" and the option "Sound Effect" to
"Dolby Virtual" (see pages 20 and 21).
To control the volume level of an external amplifier
When you connect the AV mouse and install it in an external amplifier, you can use the external amplifier’s remote
control toward the TV for controlling the volume level of the external amplifier. Connect the AV mouse to the AV
MOUSE IN jack F, and install it right above the external amplifier’s remote control sensor.
AV mouse
(supplied)
Amplifier
Remote control sensor
Your sitting position
~50°
Hi-Fi speakers
