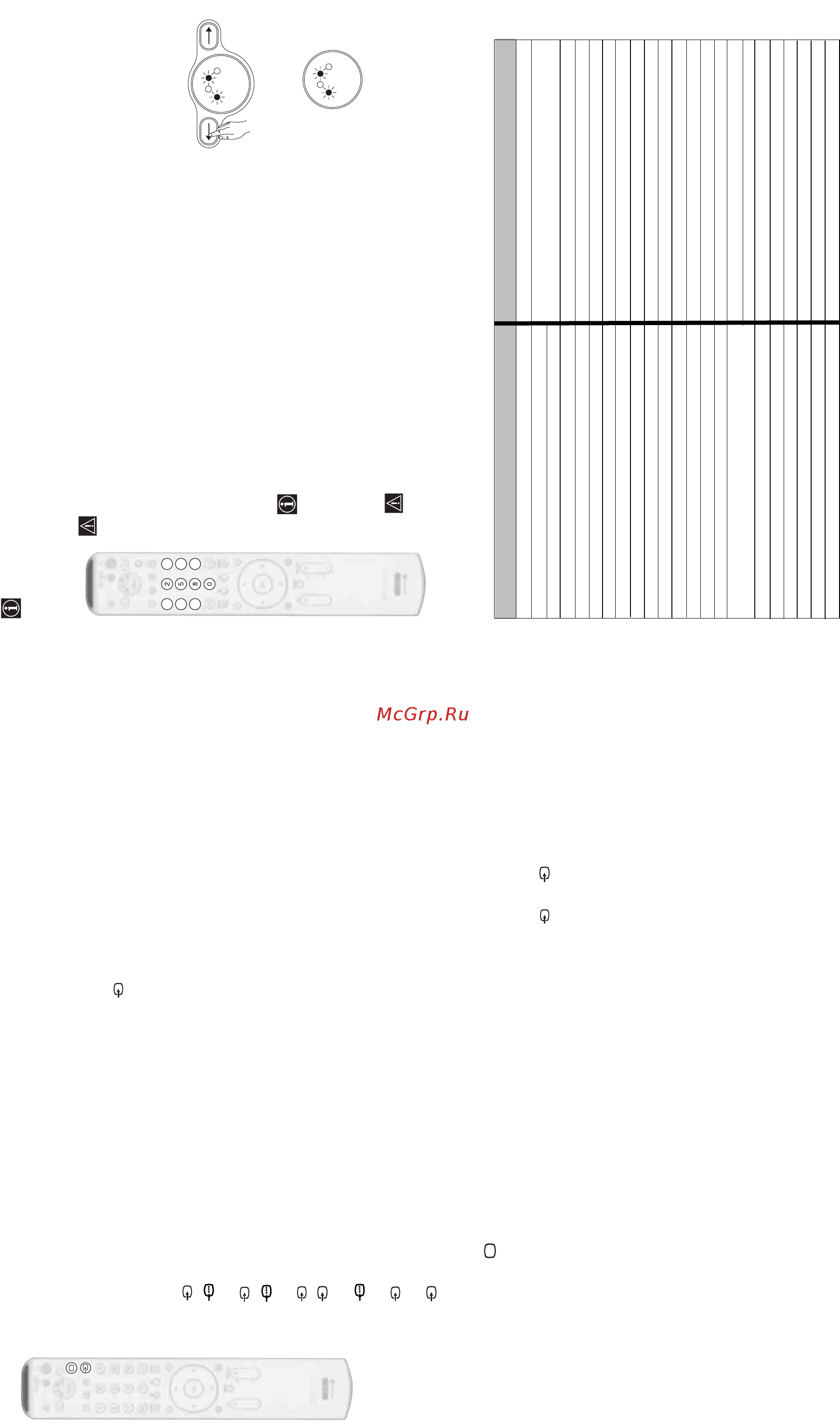

Viewing pictures from equipment connected to the TV
1 Connect your equipment to the designated TV socket, as indicated on page 38.
2 Switch on the connected equipment.
3 To watch the picture from the connected equipment, press the button repeatedly until the
correct input symbol appears on the screen.
Symbol Input Signals
1 • Audio / video input signal through the Scart connector I
1 • RGB input signal through the Scart connector I. This symbol appears only if
an RGB source has been connected.
2 • Audio / video input signal through the Scart connector J.
2 • RGB input signal through the Scart connector J. This symbol appears only if
an RGB source has been connected.
3 • Audio/video input signal through the Scart connector K.
3 • S Video Input signal through the Scart connector K. This symbol appears only
if an S Video source has been connected.
4 • Component input signal through the Y, P
B
/C
B
, P
R
/C
R
jacks H and audio input
signal through G.
5 • Video input signal through the phono socket B and Audio input signal through
C.
5 • S Video Input signal through the side S Video input jack A and Audio signal
through C. This symbol appears only if an S Video source has been connected.
4 Press the button on the remote control to return to the normal TV picture.
For Mono Equipment
Connect the phono plug to the L/G/S/I socket on the side of the TV and select 5 or 5
input signal using the instructions above. Next, refer to the “Sound Adjustment” section of this
manual and set “Dual Sound” option to “A” on the sound menu screen (see page 20).
S
S
S
Remote Control Configuration for VCR or DVD
In it’s default condition this remote control will operate the basic functions of this Sony TV, Sony DVDs and
most Sony VCRs. To control VCRs and DVDs of other manufacturers (and some Sony VCR models), the
remote control needs to be configured.
To do this:
• Before you start, look up the 3 digit code for your brand of DVD or VCR from the list below.
On those brands that have more than one code, enter the first code number.
• Sony will endeavour to update the software according to market changes. Therefore, please
refer to the code table included with the remote control for latest code set.
• A small label is provided inside the battery door to allow you to record your brand codes.
1
Press and hold the
T
button on the remote control for approximately 6
seconds until the green DVD and VCR light of the Media Selector starts
flashing (see fig. 1).
2
While the VCR and DVD lights are flashing, enter all three digits of the
code for your brand of VCR or DVD (see the list below) using the
number buttons on the remote control (see fig. 2).
If your selected code is entered correctly, the green VCR or DVD
light (according to your selection) will be lit momentarily (see fig.
3), otherwise repeat all the above steps.
3
Turn on your VCR or DVD and check that the main functions (playback,
stop, rewind, fast forward and channel selection for both VCR and
DVDs as well as Menu and cursors buttons only for DVDs) work.
• If your device is not working or some of the functions do not work please check that you
entered the correct code or try the next code listed against the brand.
• Not all brands are covered and not all models of every brand may be covered.
4
Always remember to press the
T
or
t
button until the green light iluminates according to
the equipment you want to operate with this remote control: VCR, TV or DVD. Refer to pages
42 -43 on how to operate the AUX mode.
VCR Brand List DVD Brand List
Brand Code Brand Code
SONY (VHS) 301, 302, 303, 308, 309,362
SONY (BETA) 303, 307, 310
SONY (DV) 304, 305, 306
AIWA 325, 331, 351
AKAI 326, 329, 330
DAEWOO 342, 343
GRUNDIG 358, 355, 360, 361, 320, 351, 366
HITACHI 327, 333, 334
JVC 314, 315, 322, 344, 352, 353, 354, 348, 349
LG 332, 338
LOEWE 358, 355, 360, 361, 320, 351
MATSUI 356, 357
ORION 328
PANASONIC 321, 323
PHILIPS 311, 312, 313, 316, 317, 318, 358, 359,
363, 364
SAMSUNG 339, 340, 341, 345
SANYO 335, 336
SHARP 324
THOMSON 319, 350, 365
TOSHIBA 337
SONY 001, 029, 030, 036, 037, 038, 039, 040,
041, 042, 043, 044, 053, 054, 055
AIWA 021
AKAI 032
DENON 018, 027, 020, 002
GRUNDIG 009, 028, 023, 024, 016, 003
HITACHI 025, 026, 015, 004, 035
JVC 006, 017
KENWOOD 008
LG 015, 014, 034
LOEWE 009, 028, 023, 024, 016, 003
MATSUI 013, 016
ONKYO 022, 033
PANASONIC 018, 027, 020, 002, 045, 046, 047
PHILIPS 009, 028, 023, 024, 016, 003, 031
PIONEER 004, 050, 051, 052
SAMSUNG 011, 014
SANYO 007
SHARP 019, 027
THOMSON 012
TOSHIBA 003, 048, 049
YAMAHA 018, 027, 020, 002
