Saeco Diamante [10/28] Float kit
10
English

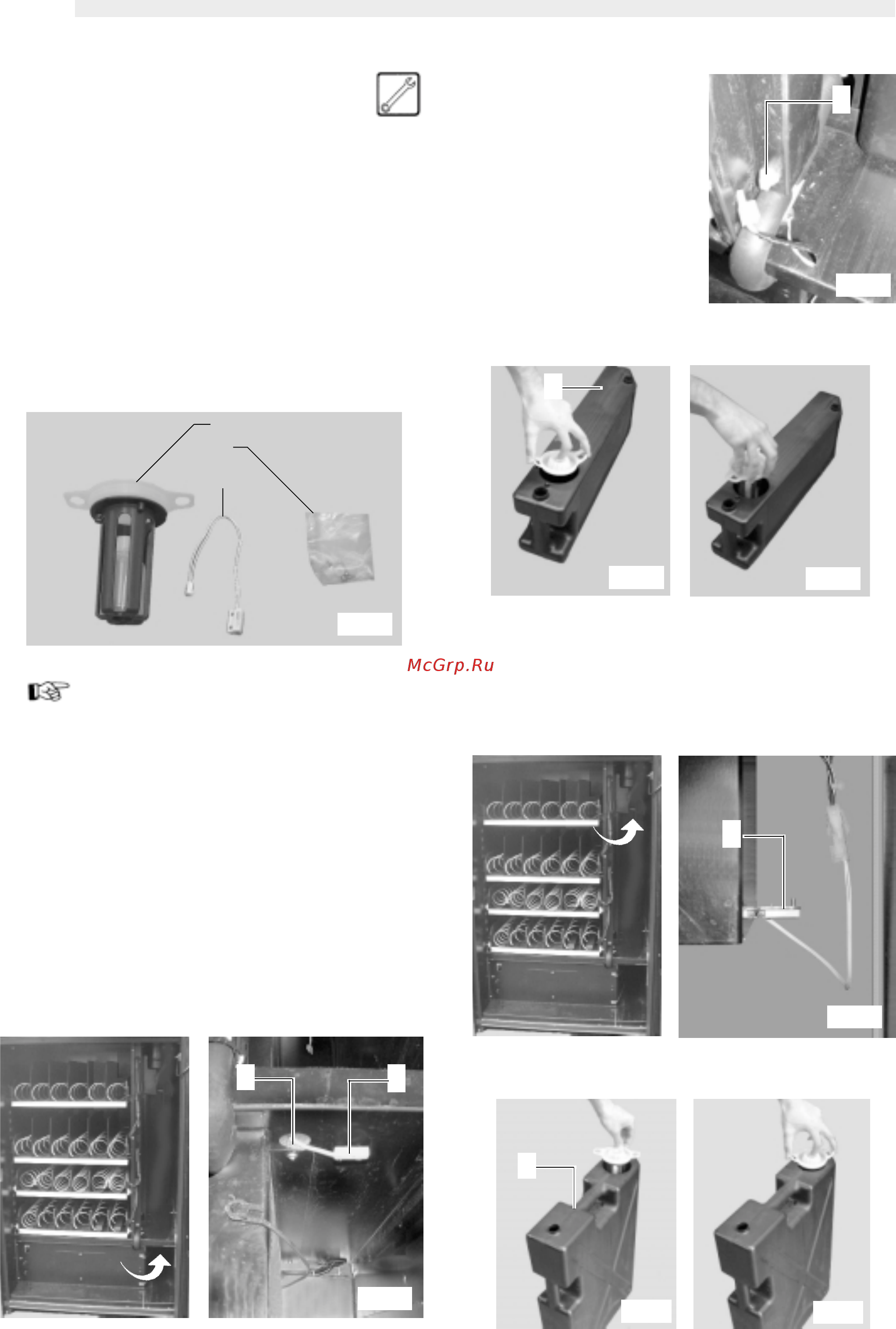

5 - FLOAT KIT
It allows the display to read the discharge fluid maximum level. In
this condition, no hot beverage is available and the display will
read “ERROR 09”.
The float can be installed in different positions according to whether
the machine is connected to a water network (22 L tank) or uses
an independent tank (7L tank).
Assembly kit (fig. 25)
a. 1 basket set for discharge fluid level
b. 2 screws
c. 1 reed wiring
a
b
c
Installation
- Open the front lower door.
- If it is applied on the independent tank version, it is necessary
to remove the 7 L tank (ref. g, fig. 28) and to assemble the
reed wiring (ref. c, fig. 25) by means of the two screws (ref.
b, fig. 25) according to the position shown in the figure (ref.
e, fig. 26).
fig. 27
fig. 25
f
- Reinstall the tank.
- If it is applied to the water network version, it is necessary to
remove the 22L tank (ref. i, fig. 31) and to fit the reed wiring
(ref. c, fig. 25) by means of the two screws (ref. b, fig. 25)
on the square (ref. h, fig. 30). Then, couple the other end to
the connector (fig. 30).
- Remove the tank cap (fig. 28) and replace it with the discharge
level basket set (fig. 29).
- Slide the other end of the reed
wiring inside the hole (ref. d,
fig. 26) and couple it to the
connector (ref. f, fig. 27).
fig. 28
fig. 29
h
fig. 30
g
- Remove the tank cap (fig. 31) and replace it with the discharge
level basket set (fig. 32).
fig. 31
fig. 32
i
- Reinstall the tank.
e
fig. 26
d
Important
When assembling the lower level sensor (fig. 26) disconnect
the higher sensor (fig. 30). The drain level control system
doesn’t work if two sensors are connected.
