- Carry out all the electric connections as indicated by the
diagram below.
- Disconnect the two power supply wirings from the water inlet
solenoid valve (fig. 14).
- Remove the water inlet solenoid valve (fig. 15).
- Tighten the relay and support plate (ref. r, fig. 9) by using the
screws previously taken from the inlet solenoid valve (fig. 16)
- Tighten the pump by means of the two screws and two washers
4,3x16 (ref. h, fig. 9) to the bottom (fig. 17).
- Connect the pipe (ref. s, fig. 12), previously extracted from
the water inlet solenoid valve, to the fitting located on the
pump (fig. 18).
- Withdraw the cap (ref. u, fig. 15). Connect the water inlet
pipe to the pump. Move the other end of the pipe to the
lower part of the vending machine passing through the hole
(ref. u, fig. 15)

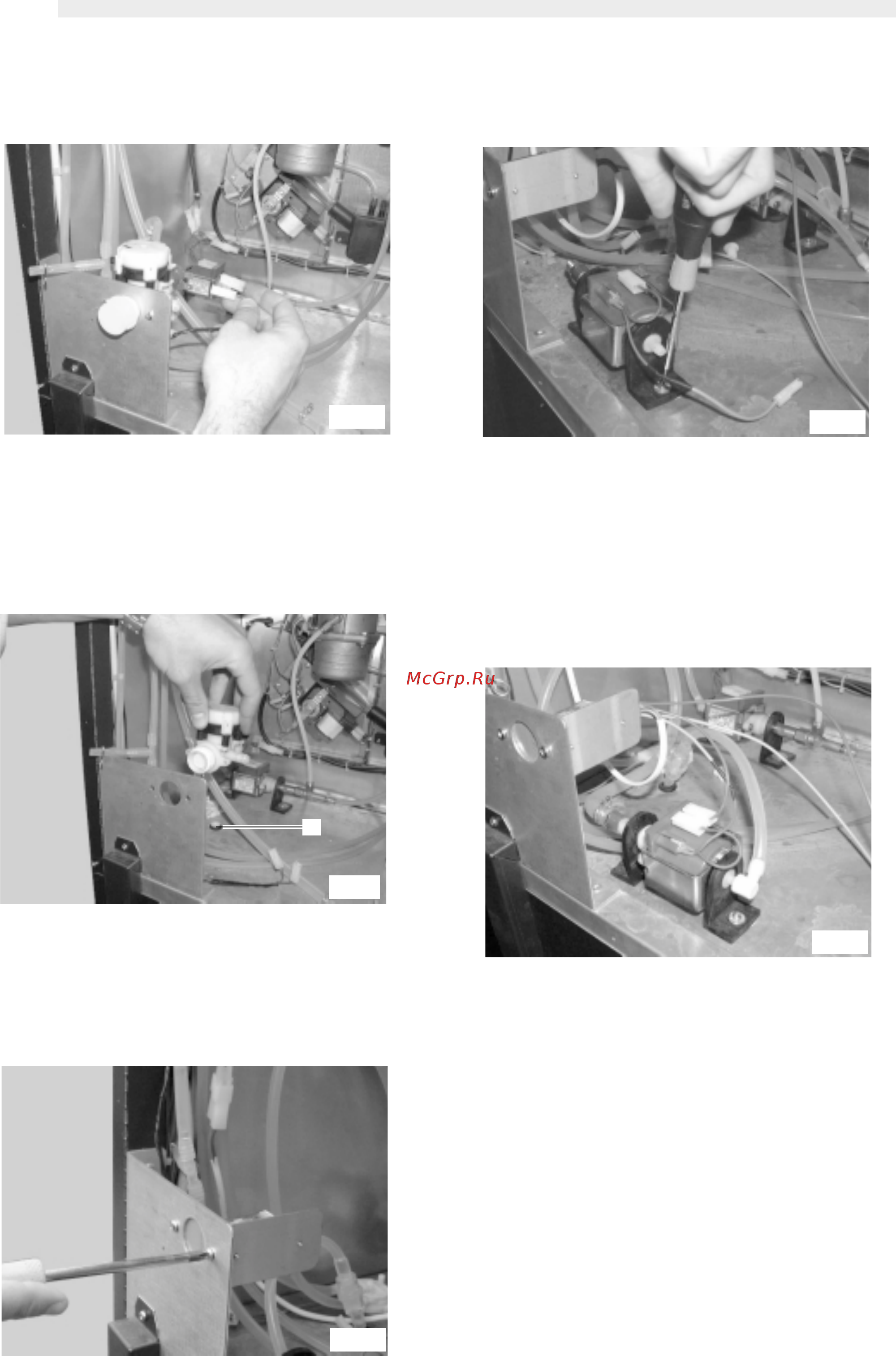

fig. 15
fig. 16
fig. 18
fig. 17
fig. 14
