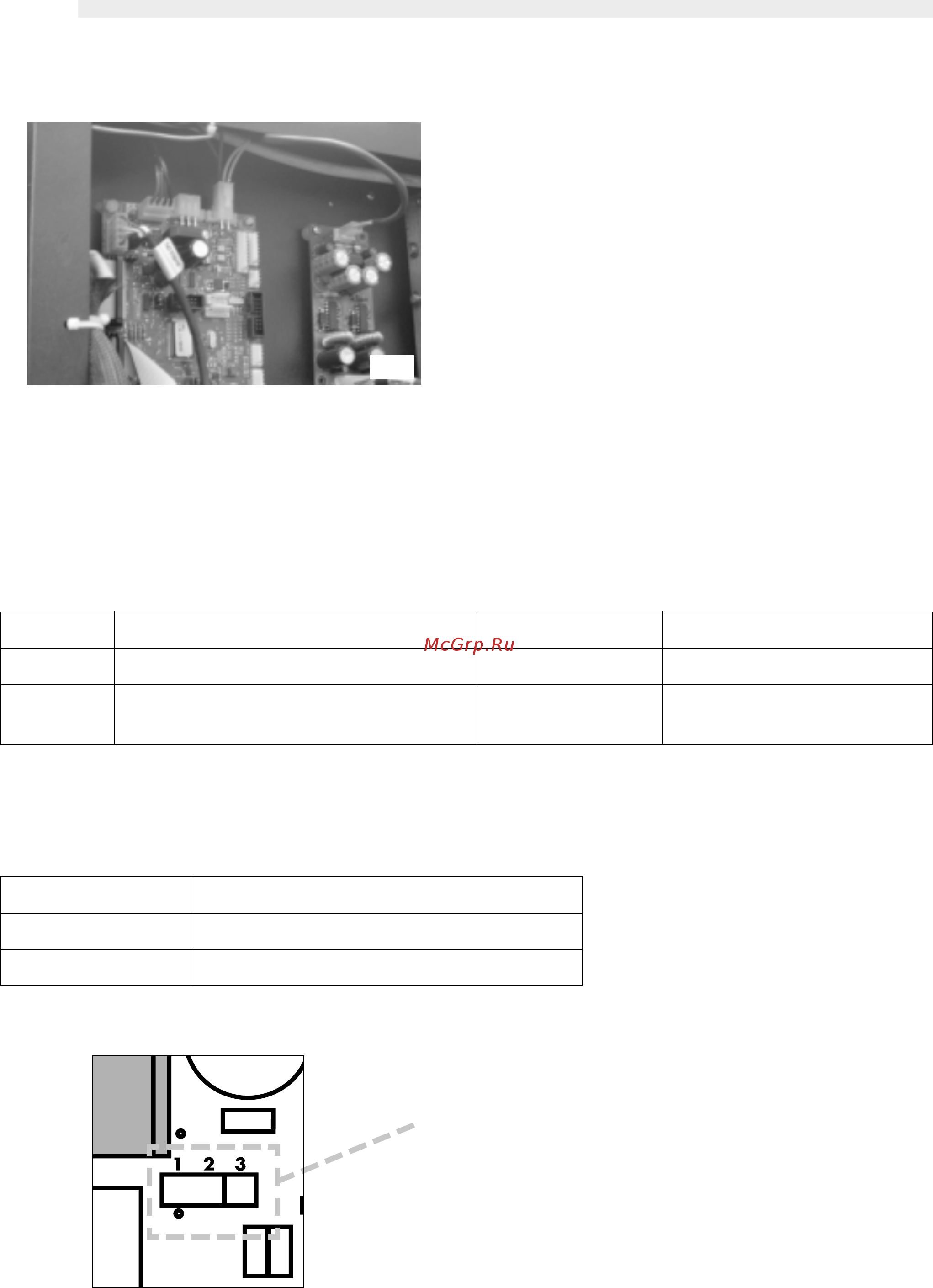

- Connect the four-pin connector to the CPU card (fig. 8).
fig. 8
- Close the vending machine upper door.
The mains voltage values provided by this feeder can also be
found on CN6 (ref. 3, fig. 1) and CN9 (ref. 8, fig. 1) connectors
of CPU card.
Connector Description Voltage Pin
CN6 connector for parallel banknote readers +12Vdc 7
CN9 connector for saeco card universal module +5Vdc or +6Vdc 12,13,14
(see table below)
Pin 12, 13, 14 voltage of CN6 is set according to JP8 jumper
position.
JP8 jumper position Voltage on CN6 12, 13, 14 pins
1-2 +6Vdc
2-3 +5Vdc
JP8 jumper
position
