Installation

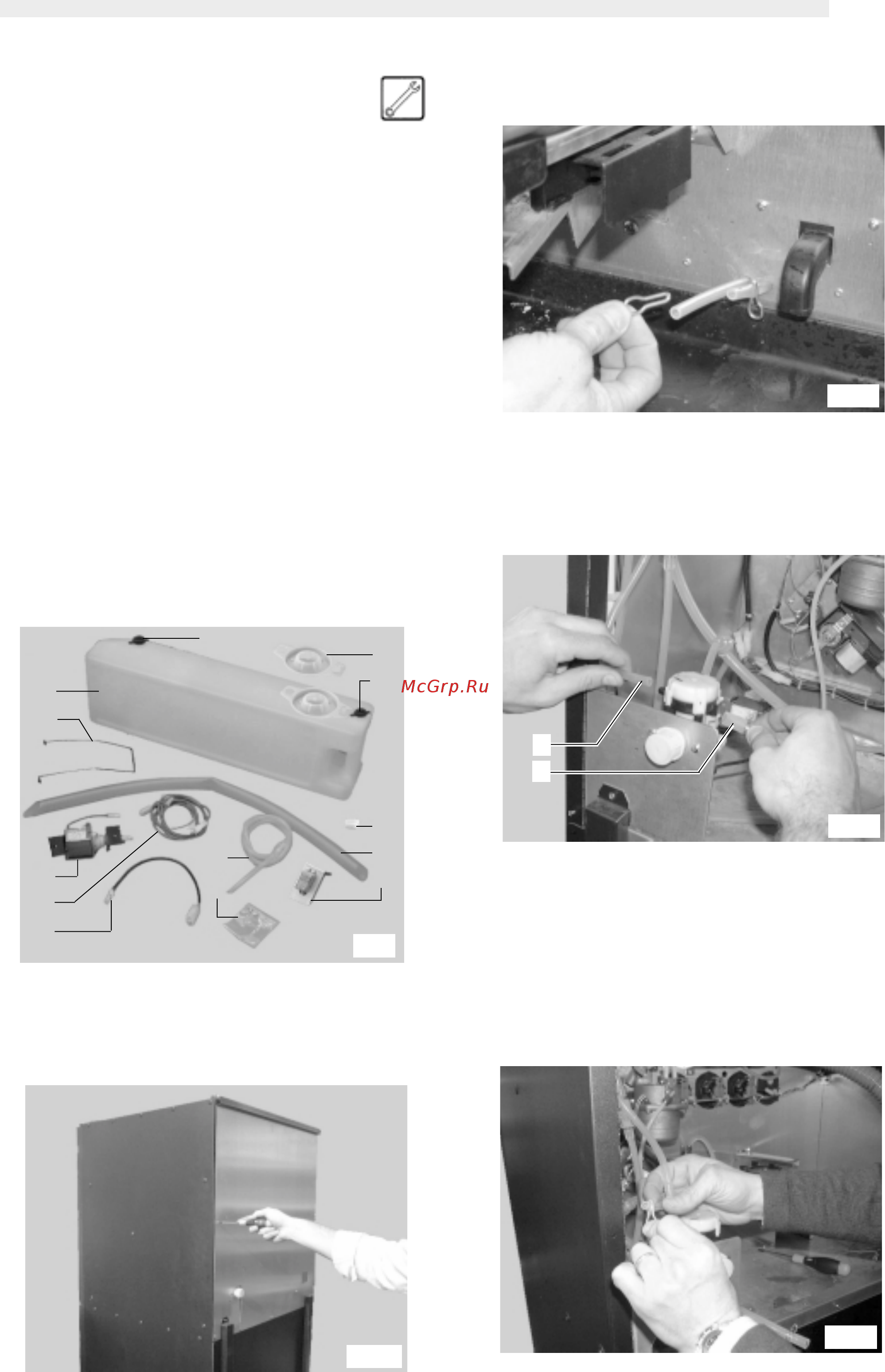

- Remove the machine rear panel (fig. 10) by untightening the

screws and disconnecting the ground wiring placed on the

machine.

4 - INDEPENDENT TANK KIT

This kit allows the vending machine to be supplied by means of

an internal tank instead of by the water network. To do this, it is

necessary to use the tank inside the machine as drinking water

hopper. If the machine has not been started for the first time, and

the tank has already been used as discharge fluid tank, it shall be

replaced with a new one.

Assembly kit (fig. 9)

a. 1 discharge fluid tank with cap

b. 1 spring for tank

c. 1 pump with supports and pipe fitting

d. 1 pump wiring harness

e. 1 pump feeding wiring

f. 1 cap for spout

g. 1 water inlet pipe

h. 4 screws and washers (two of them measure 4,3x12 and the

other two 4,3x16)

i. 1 perforated cap

m. 1 cap for spout

n. 1 KAPSTO GPN 350 dia 30 cap

p. 1 PVC drain tube

r. 1 relay with support plate

- Open the upper door and take out the retaining spring from

the left hand pipe (fig. 11).

- Disconnect the two pipes from the water inlet solenoid valve

(fig. 12)

- Apply the pipe retaining spring (see fig. 11) on the silicone

pipe (ref. t, fig. 12) fitted on “T” and previously removed from

the inlet solenoid valve (fig. 13).

fig. 10

fig. 9

fig. 11

fig. 12

fig. 13
