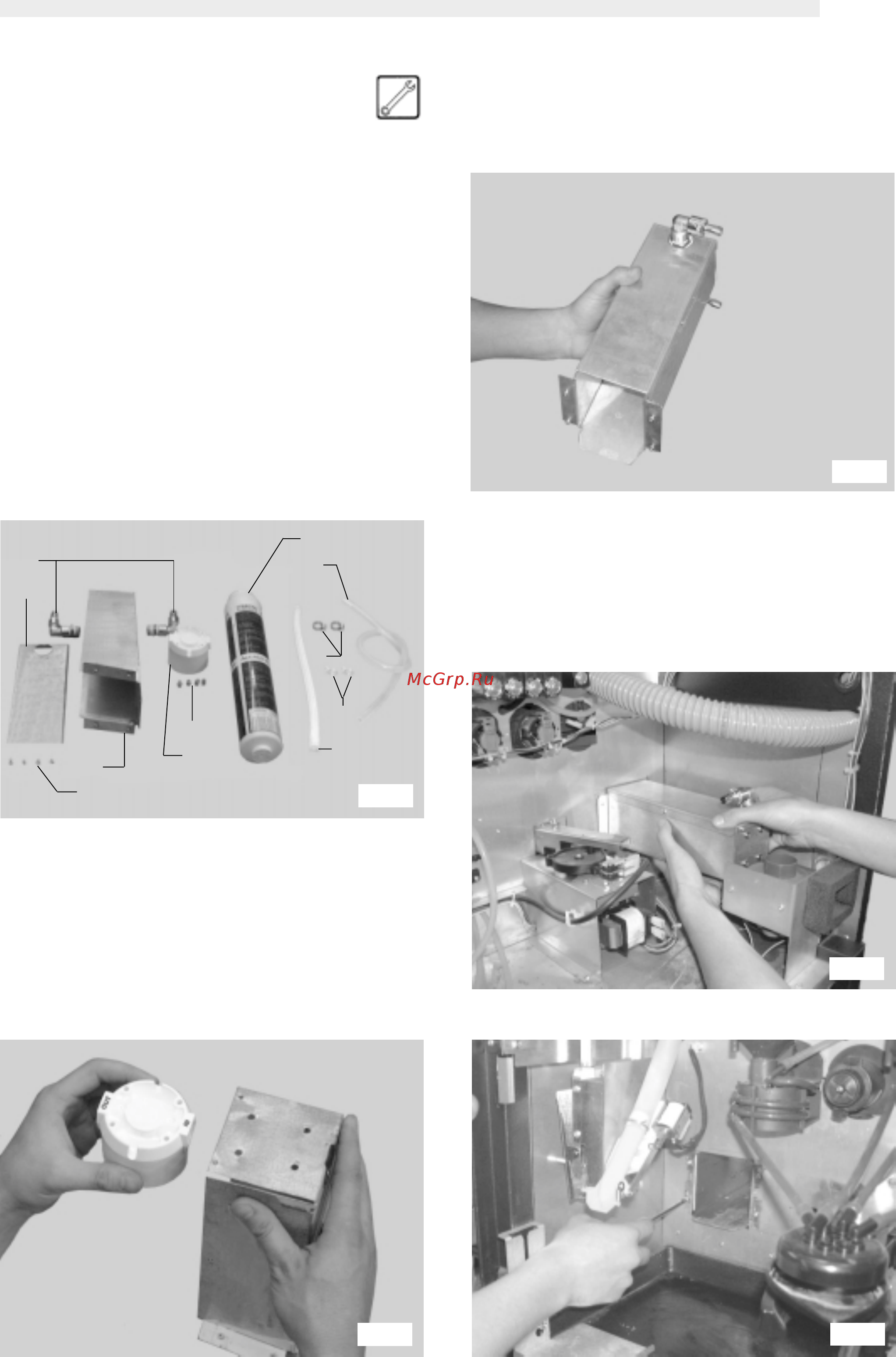

11 - BRITA PURIFIER KIT

It is possible to install a filter, manufactured by Brita Company, on

the vending machine, in order to decalcify water and eliminate

all unpleasant smells.

Assembly kit (fig. 79)

a. 2 fittings

b. 1 cover for filter cartridge support

c. 1 filter cartridge support

d. 4 screws for filter cartridge support cover

e. 4 screws for cartridge head

f. cartridge head (not supplied)

g. Brita Aquaquell cartridge (not supplied)

h. 1 air break pipe

i. 2 pipe clamps

l. 2 pipe retaining springs

m. 1 pump pipe

- Remove the machine rear panel and open the upper front

door.

- Remove the hole-closing panel.

- Assemble the cartridge support set (fig. 81) and fasten it by

means of the 4 screws (fig. 82 e 83)

fig. 79

Installation

- Insert the head (ref. f, fig. 79) into the support (ref. c, fig. 79)

carefully following the required sense (fig. 80). Fasten the

head to the support by means of the 4 screws (ref. e, fig.

79).

fig. 80

fig. 81

- Assemble the cover (ref. b, fig. 79) on the support (ref. c, fig.

79) and tighten it by using the 4 screws (ref. d, fig. 79). Then

screw the 2 fittings (ref. a, fig. 79) inside the holes following

the right orientation, as shown in fig. 81.
