9
English
24 V D.C.
INLET SOLENOID VALVE
RED
DARK BLUE

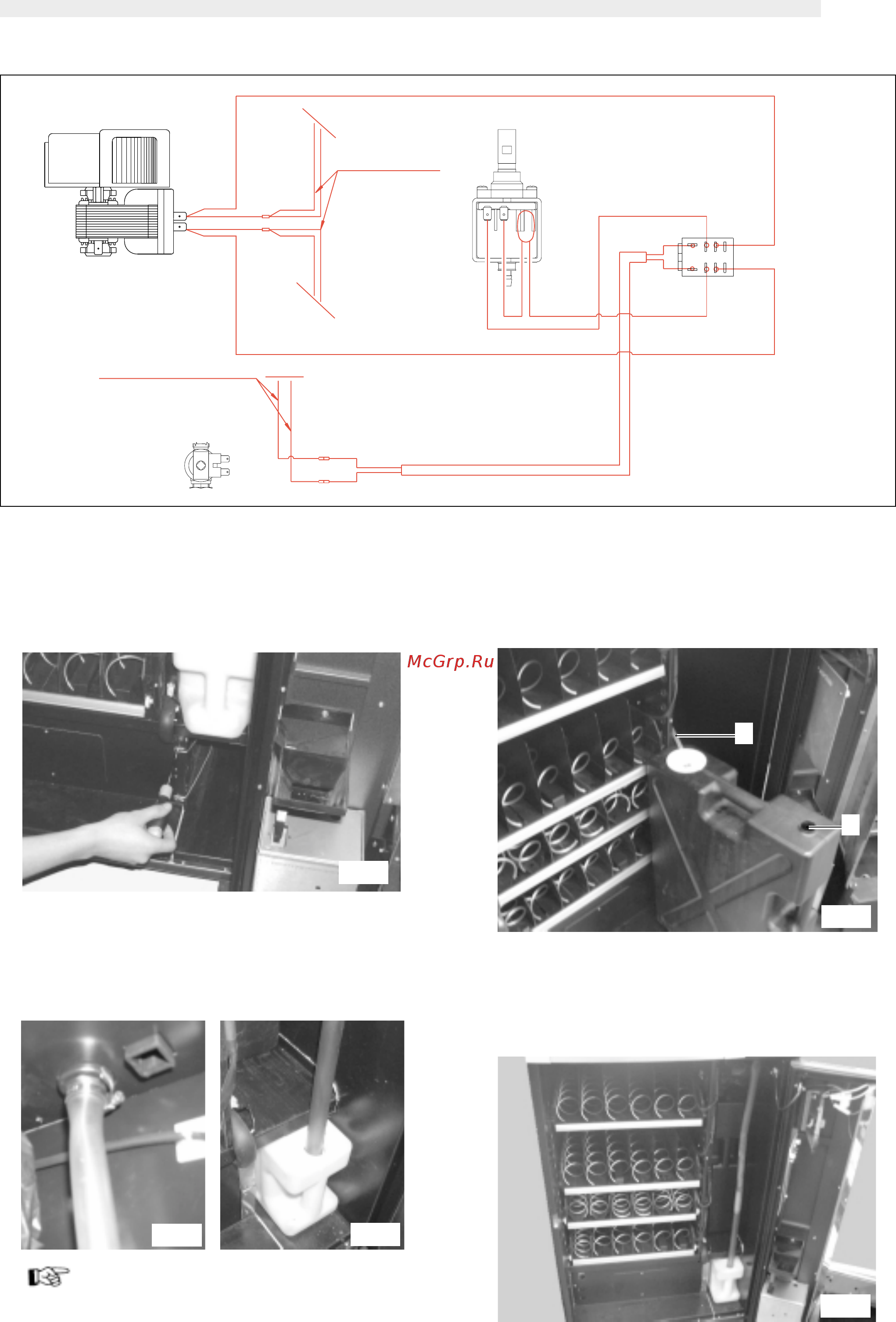

Power supply wirings inlet solenoid valve
Power supply wirings
fan motor
BLUE
RED
BLUE
RED
230V 50Hz
DARK BLUE
DARK BLUE
DARK BLUE
DARK BLUE
DARK BLUE
RELAY
PINK
PINK
PINK
PINK
PINK
PUMP 1
FAN
- Reassemble the machine rear panel taking care to reconnect
the earth cable.
- Open the V.M. lower door.
-
Tighten the spring (ref. b, fig. 9) in the position shown in fig. 29
by using the two screws and two washers 4,3x12 (ref. h, fig. 9).
fig. 19
- Replace the pipe fastened to the drain channel (fig. 21) with
the drain tube (ref. p, fig.9). Remove the cap (ref. m, fig. 9)
from the tank. Insert the other end of the pipe in the discharge
fluid tank (fig. 22). Make sure that the other tank holes are
properly capped.
- Insert the pipe (ref. g, fig. 23) in the perforated cap of the
drinking water tank.
- Fill the drinking water tank.
- Fit the cap on the tank. Place the tank inside the V.M. (fig. 24)
by sliding the pipe inside the tank itself. Close the hole (ref. v,
fig. 23) by means of the cap (ref. n, fig. 9).
fig. 20
fig. 22
fig. 24
fig. 23
g
fig. 21
v
Important
Before removing the tank to empty it, close the pipe hole
using the relevant cap (ref. m, fig. 9). This will help preventing
any liquid spillage due to the surge effect.
- Close the vending machine lower door.
