4
English
A
B
C
D
E

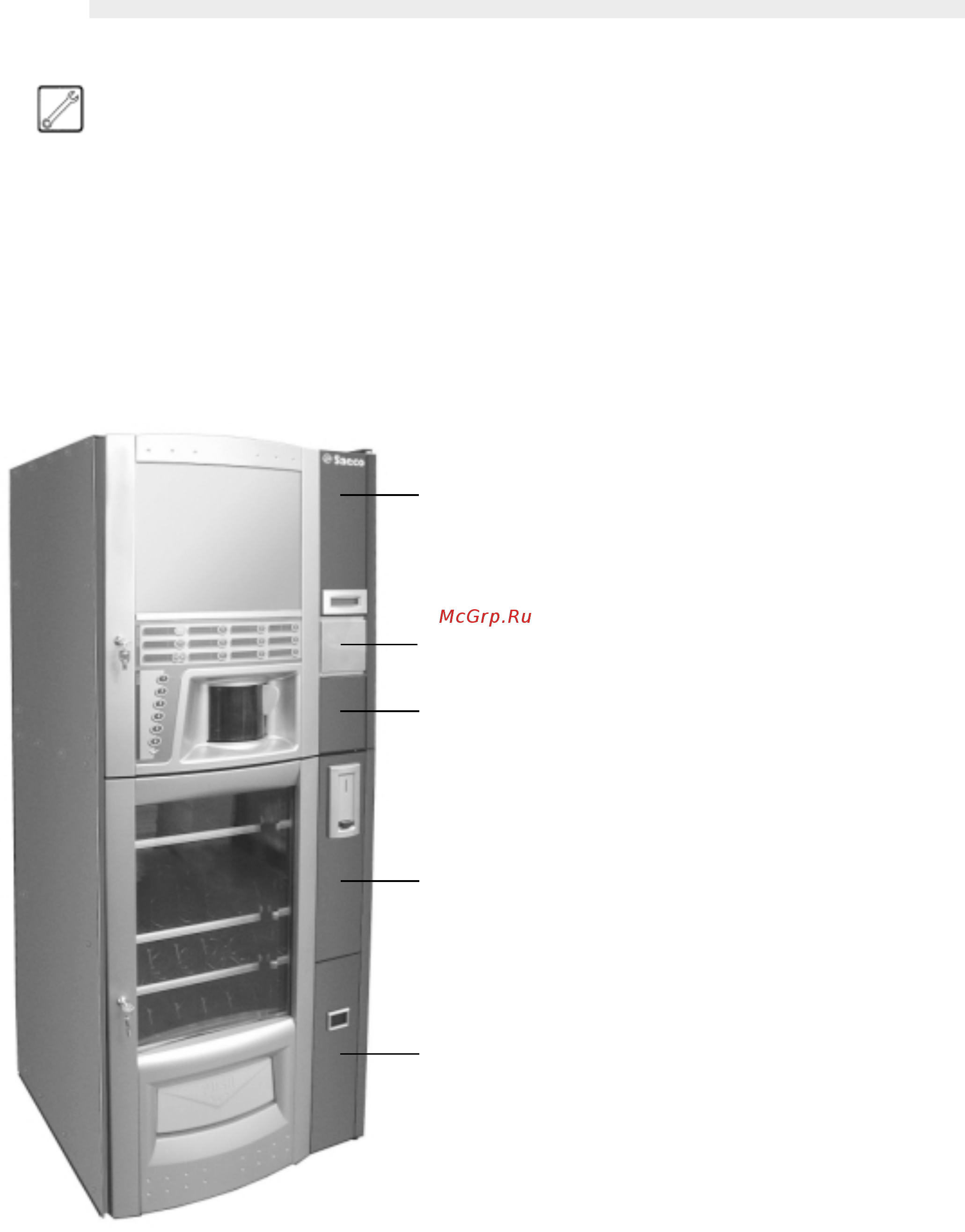

This vending machine is supplied with panels assembled as shown
in fig. 2. It is possible to change and replace them with those
provided by Saeco according to the customer’s requirements.
- Panel for OTR. and M.IVO banknote readers
- Panel for JCM banknote reader
- Panel for SMILE banknote reader
- Panel for m125 COINCO banknote reader
- Panel for NRI G13 coiner
- Lower Neutra panels (to combine with NRI G 13 panel)
Saeco also supplies the relevant wiring harnesses to connect the
different payment systems.
A specific kit must be used to connect the 12V non-change-giving
parallel coiner.
Open the front doors to replace the panels and remove the CPU
guard to replace the upper door.
Before taking panel B off, it is necessary to remove also the
instruction support steel sheet.
Panel for
OTR. and M.IVO banknote readers
It is inserted in lieu of panels B, C and is preset for OTR. and
M.IVO banknote readers.
Panel for JCM banknote reader
It is inserted in lieu of panels B, C and is preset for JCM banknote
reader.
Panel for SMILE banknote reader
It is inserted in lieu of panels B, C and is preset for SMILE banknote
reader.
Panel for m125 COINCO banknote reader
It is inserted in lieu of panels B, C and is preset for m125 COINCO
banknote reader.
Panel for NRI G13 coiner and Neutra lower panel
These two panels must be combined.
They are inserted in lieu of panels D, E and are preset for NRI
G13 COINER.
- Connect the payment system cable to the suitable connector on the CPU card according to the instructions supplied by the diagram at
page 3.
- If during the payment system installation, the “B” panel instructions are removed, it will be necessary to insert the proper instructions, in
a large, short format, in the “advertising image” area.
fig. 2
Maintenance technician
It is used to indicate operations to be performed by specialized maintenance technicians only.
He is the only person authorized to keep the KEY TO ACTIVATE THE SAFETY MICROSWITCH which allows disabling the security
system.
2 - PAYMENT SYSTEM
INSTALLATION
