Saeco Diamante [15/28] Sugar coil kit

English

8 - SUGAR COIL KIT

This kit allows the sugar door opening only when required, since

an electromagnet controls it. This prevents any sugar grain from

accidentally falling when the “without sugar” option has been

selected.

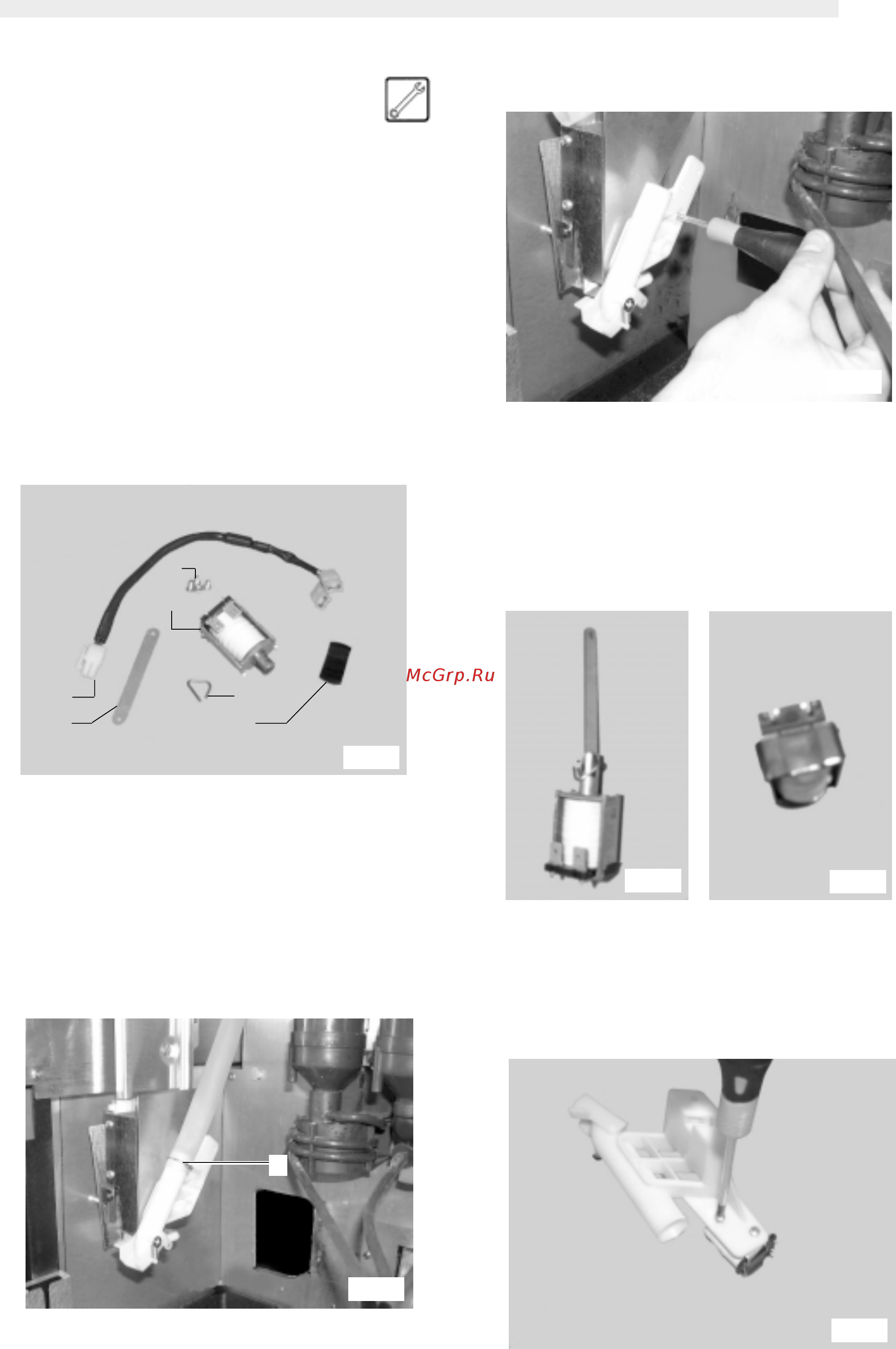

Assembly kit (fig. 50)

a. 1 two-pin connector

b. 1 connecting rod

c. 2 M3x6 screws, 1 M3x8 screw and 1 M3 nut

d. 1 relay electromagnet

e. 1 spring

f. 1 sticker

- Disassemble the sugar-dispensing channel (Fig. 52).

- Install the connecting rod (ref. b, fig. 50) on the electromagnet

piston (ref. d, fig. 50) by means of the spring (ref. e, fig. 50)

to obtain the unit shown in fig. 53.

- Apply the sticker (ref. f, fig. 50) to the electromagnet (fig. 54)

in order to seal the hole located on the machine housing.

- Assemble this unit (see fig. 54) on the sugar channel (fig. 55)

by means of two M3x6 screws (ref. c, fig. 50).

Installation

- Open the upper front door.

- Remove the sugar-dispensing channel by opening the screw

(ref. g, fig. 51).

fig. 50

fig. 51

fig. 55

fig. 54

fig. 53

fig. 52
