English

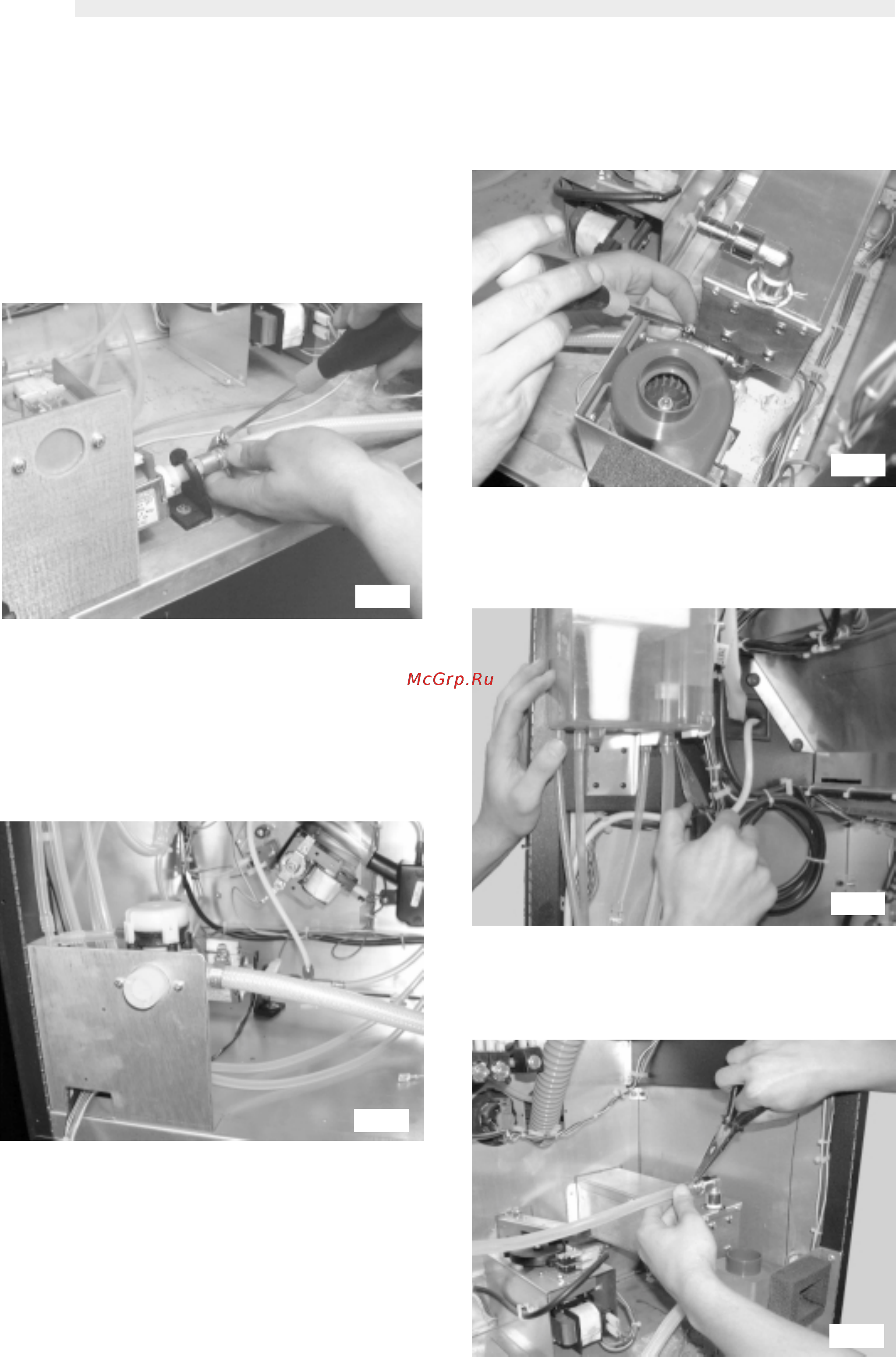

fig. 87

fig. 88

- Insert the spring (ref. i, fig. 79) into the pipe (ref. m, fig. 79)

and the latter into the air break fitting (fig. 87).

- Insert the other spring (ref. l, fig. 79) into the pipe free end

(ref. h, fig. 79) and the latter (fig. 88) into the upper fitting of

the cartridge support set (ref. a, fig. 79).

fig. 86

- Insert the other clamp (ref. i, fig. 79) into the pipe free end

(ref. m, fig. 79) and the latter into the lower fitting of the

cartridge support set (ref. a, fig. 79). Tighten the clamp screw

(fig. 86).

fig. 84

The following operation differs according to whether the machine

is connected to a water network or if it uses an independent tank

- Independent tank

Insert the clamp (ref. i, fig. 79) into the pipe (ref. m, fig. 79)

and the latter into the pump fitting. Tighten the clamp screw

(fig. 84).

- Water network

Insert the clamp (ref. i, fig. 79) into the pipe (ref. m, fig. 79)

and the latter into the water inlet solenoid valve fitting. Tighten

the clamp screw (fig. 85).

fig. 85

INDEPENDENT TANK

WATER NETWORK
