Saeco Diamante [3/28] Diagram of connections to the keypad board cpu
Макгруп McGrp.ru
Задайте вопрос
Зарегистрироваться

Saeco Diamante [3/28] Diagram of connections to the keypad board cpu

Saeco Diamante [3/28] Diagram of connections to the keypad board cpu
3
English
fig. 1

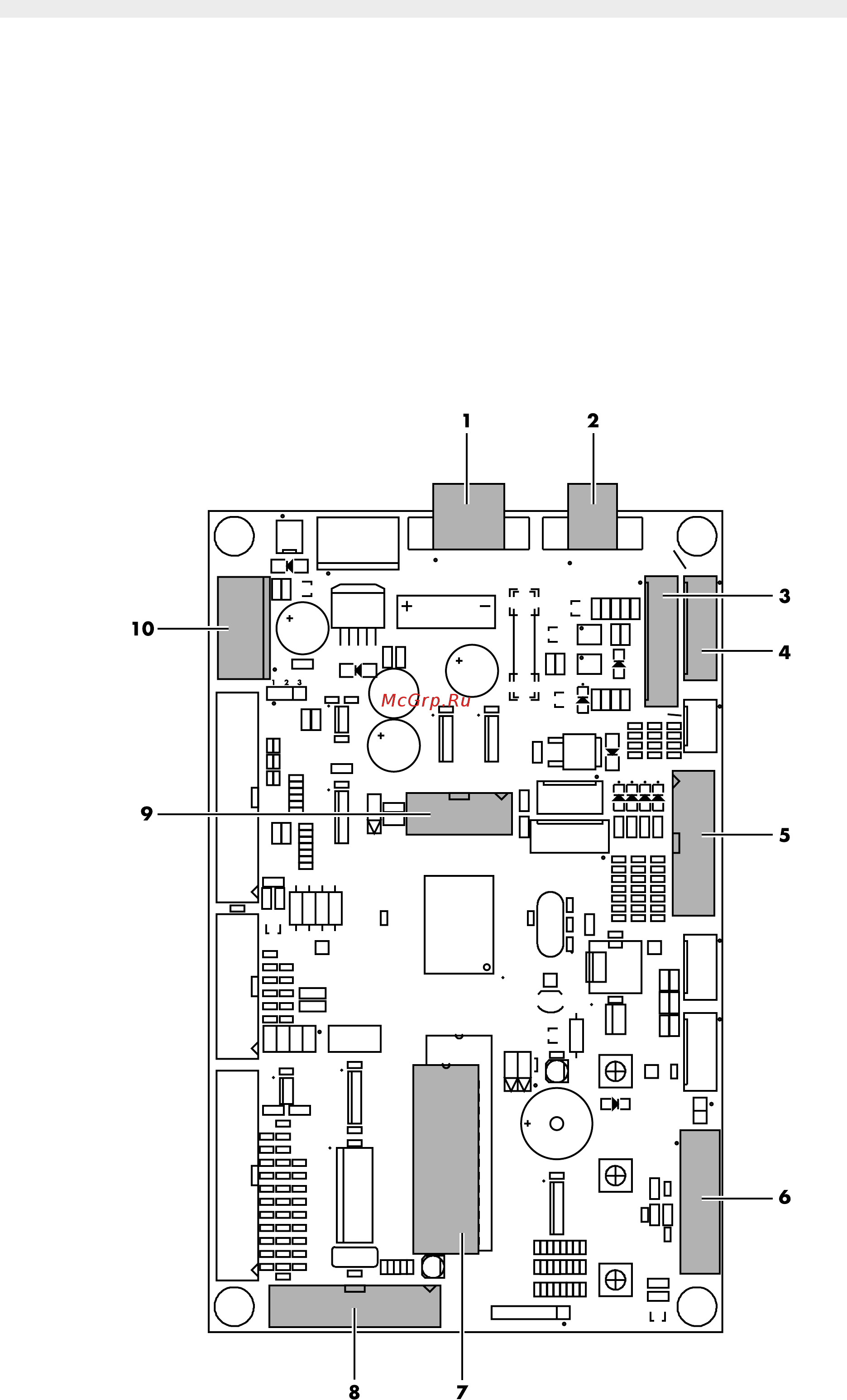

1 - DIAGRAM OF CONNECTIONS TO THE KEYPAD BOARD/CPU:
1. MDB systems;
2. BDV, MDB and executive system power supply;
3. 24 V DC / 12 V DC banknote reader;
4. Executive and BDV systems;
5. 24 V DC parallel coiner (non-change giving);
5. 12 V DC parallel coiner (non-change giving) with its suitable kit,
6. Programming key;
7. Clock module;
8. Saeco card;
9. Connector for PC serial interface
10. Feeder kit for payment systems;
