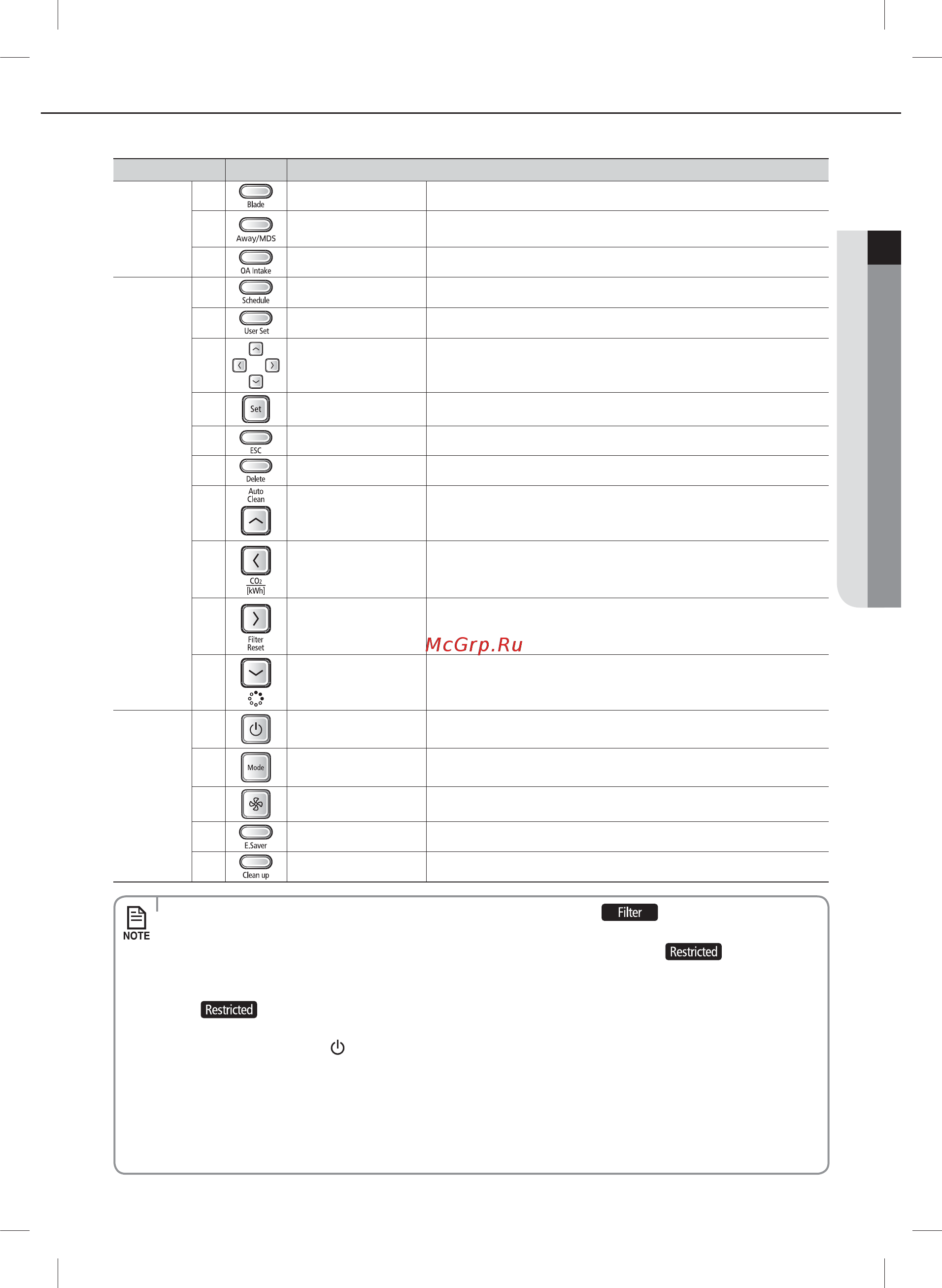

Classication Button Function
Air
Conditioner
Related
Information
⑨
Blade button Selects a blade for individual control
⑩
Away / Motion detect
sensor button
Selects when no one is detected in an indoor area, when the air conditioner
needs to be turned off automatically, when the AWAY operation is set;
⑪
Outdoor air intake Select the MINI AHU indoor unit Outdoor intake function
Special
Function
Displays
⑫
Schedule Button Select the schedule setting function
⑬
User Set Button Select the detailed setting function
⑭
Navigational buttons Move between items or change the item value
⑮
Set button Save your new settings
⑯
ESC button Return to general mode from schedule and detailed setting screens
⑰
Delete button Cancel the schedule setting
⑱
Auto Clean button Use the auto cleaning function for your air conditioner
⑲
CO
2
/[kWh] button Display the amount of CO
2
and the power consumption
⑳
Filter Reset button Turn off the filter cleaning displays (filter using time reset)
S-Plasma Ion button Choose the S-Plasma Ion function
Ventilator
(ERV)
Related
Buttons
Operation On/Off
button
Turn the Ventilator(ERV) On/Off
Mode button Select the desired operation for the Ventilator(ERV)
Fan speed button Change the fan speed for your Ventilator(ERV)
E.Saver button Begin Energy Saving Operation
Clean up button Select air purification through the in/out load controls
• After cleaning the lter, please press the Filter Reset button. The
lamp will turn o, and it
will be turned on again upon the next cleaning period.
• If you press a functional button not supported by the indoor unit, then the
lamp will turn
on.
• If the temperature display setting is set to indoor temperature and you press the
Temp.
button,
the
lamp display will appear. (When you install the Wired Remote Controller, the setting is
available.)
• If you press the On/O
button when your Ventilator(ERV) is connected to a Wired Remote
Controller, then the air conditioner and the Ventilator(ERV) might operate or stop at the same
time or only the air conditioner might operate or stop. The factory setting is set to simultaneous
operation/stop. (When you install the Wired Remote Controller, the setting is available.)
•
Although the air conditioner and the Ventilator(ERV) are set to simultaneous operation/stop,
you can individually control the air conditioner and the Ventilator(ERV) by using another controller
(e.g. wireless remote controller, central controller, S-net mini) except for a Wired Remote Controller.
