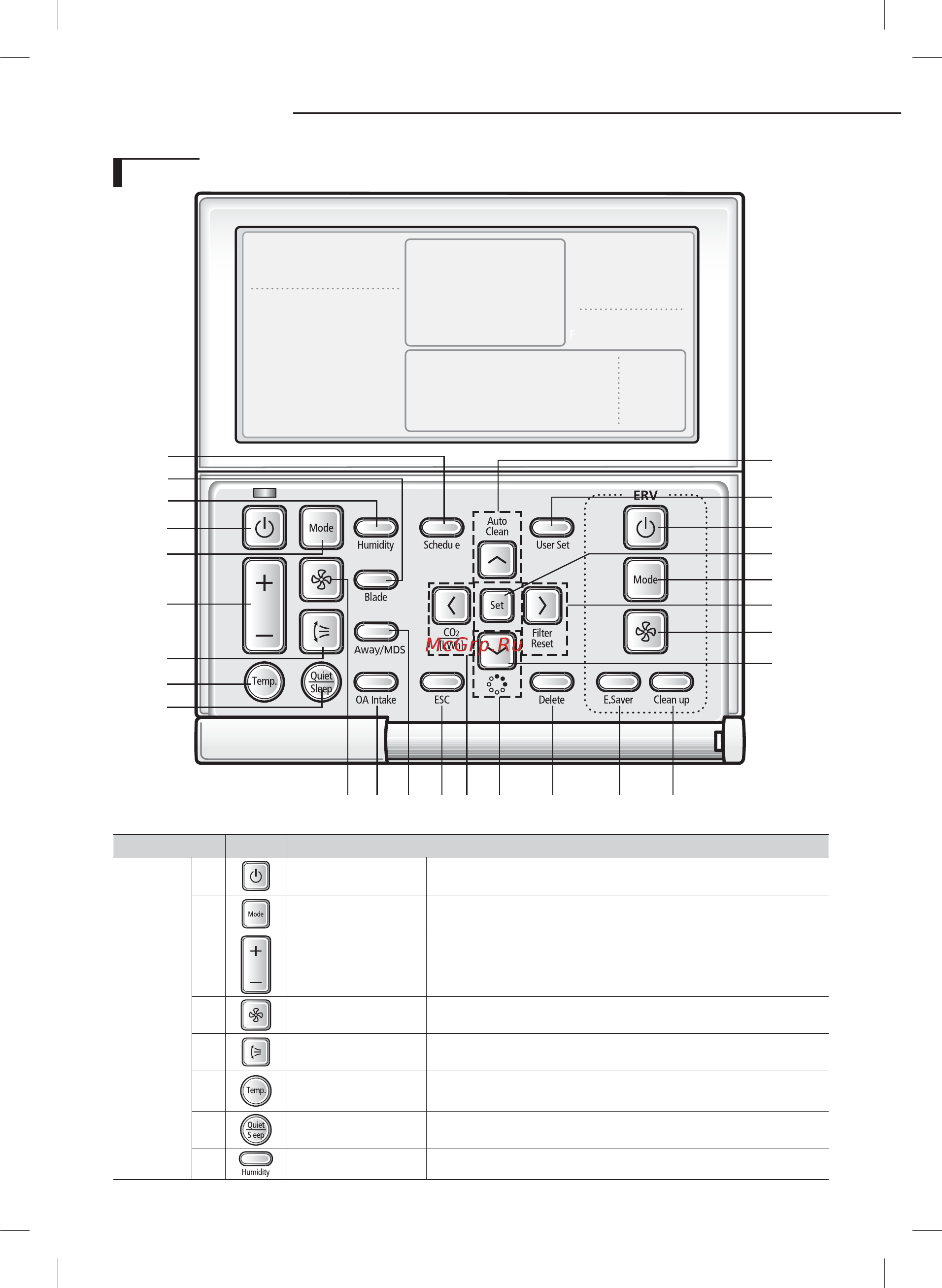

8
Buttons
③
⑥
①
⑧
⑨
⑫
⑤
②
⑬
⑱
⑮
⑳
⑪ ⑯ ⑲⑩ ⑰⑭ ④
⑦
Classication Button Function
Air
Conditioner
Related
Information
①
Operation On/Off
button
Turns the air conditioner power On/Off
②
Mode button Selects the desired air conditioner operation
③
Temperature setting
button
Sets the desired temperature
④
Fan speed button Changes the air conditioner’s fan speed
⑤
Air Swing button Changes the air flow direction to move upward or downward
⑥
Temp. button Checks the indoor temperature
⑦
Quiet/Sleep button Selects Quiet or Sleep operation for the air conditioner
⑧
Humidity button Turns the MINI AHU indoor unit humidifying function On/Off
Part Names
